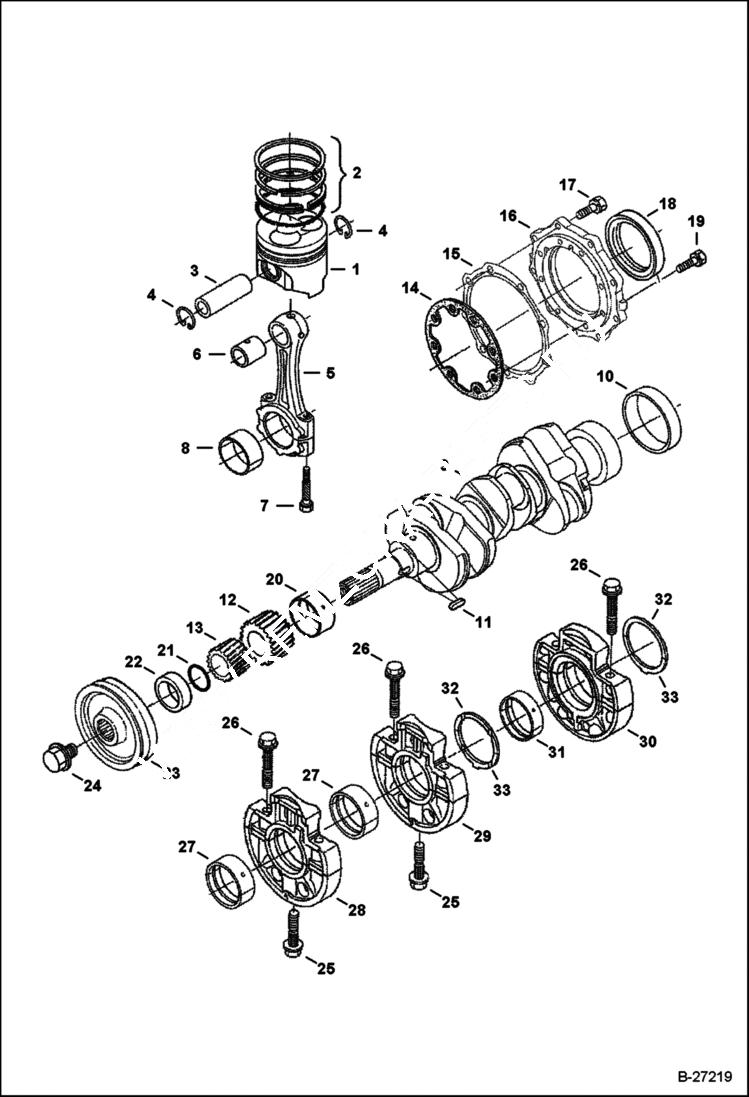

Запчасти Bobcat E26 PISTON & CRANKSHAFT POWER UNIT

1

6698613

PISTON, ENG std (16060-2111)

1

6689940

PISTON +0,50 mm (16060-2111 OS50)

2

6680494

RING ASSY std

2

6680516

RINGS PISTON +0,50 mm

3

6657521

PIN

4

6657522

SNAP RING

5

6680495

ROD ASSY W/Ref 6-8

6

6698624

BUSHING, PIN PISTON

7

6657526

BOLT

8

6680496

ROD BEARING std

8

7022770

BEARING, ENG ROD CONNECTING -0,20 mm

8

7022771

BEARING, ENG ROD CONNECTING -0,40 mm

9

7022684

CRANKSHAFT, ASSY W/Ref. 10 - 13

10

6657530

COLLAR

11

6657661

KEY

12

7022685

GEAR, CRANKSHAFT

13

6657552

GEAR

14

6657480

GASKET

15

6698617

GASKET, COVER CASE

16

6657484

COVER

17

1CM620

BOLT Was 4CM620 - A

18

6657481

SEAL

19

6969895

BOLT

20

6680497

BEARING, ENG CRANKSHAFT std

20

6680519

BEARING, ENG MAIN -0,20 mm

20

6680520

BEARING -0,40 mm

21

6680268

O-RING

22

6657531

SLEEVE

23

7197551

PULLEY Was 6672428 - B,D

24

6680540

BOLT

25

6657483

BOLT

26

6657482

BOLT

27

6680498

BEARING, ENG MAIN std

27

6680521

BEARING -0,20 mm

27

7023136

BEARING, ENG CRANKSHAFT -0,40 mm - Was 6680522 - A

28

6691304

CASE, BEARING main - W/Ref. 26 & 27

29

6691305

CASE, BEARING main - W/Ref. 26 & 27

30

6691302

BEARING CASE main - W/Ref. 26 & 31

31

6657534

BEARING std

31

6680270

BEARING -0,20 mm

31

6680271

BEARING -0,40 mm

32

3974945

WASHER, THRUST std

32

7022767

WASHER, THRUST +0,20 mm

32

7022768

WASHER, THRUST +0,40 mm

33

6653865

WASHER, THRUST std

33

6654002

WASHER, THRUST +0,20 mm

33

6654003

WASHER, THRUST +0,40 mm
