Запчасти Bobcat E25 CONTROLS ELECTRICAL (RH Console) ELECTRICAL SYSTEM

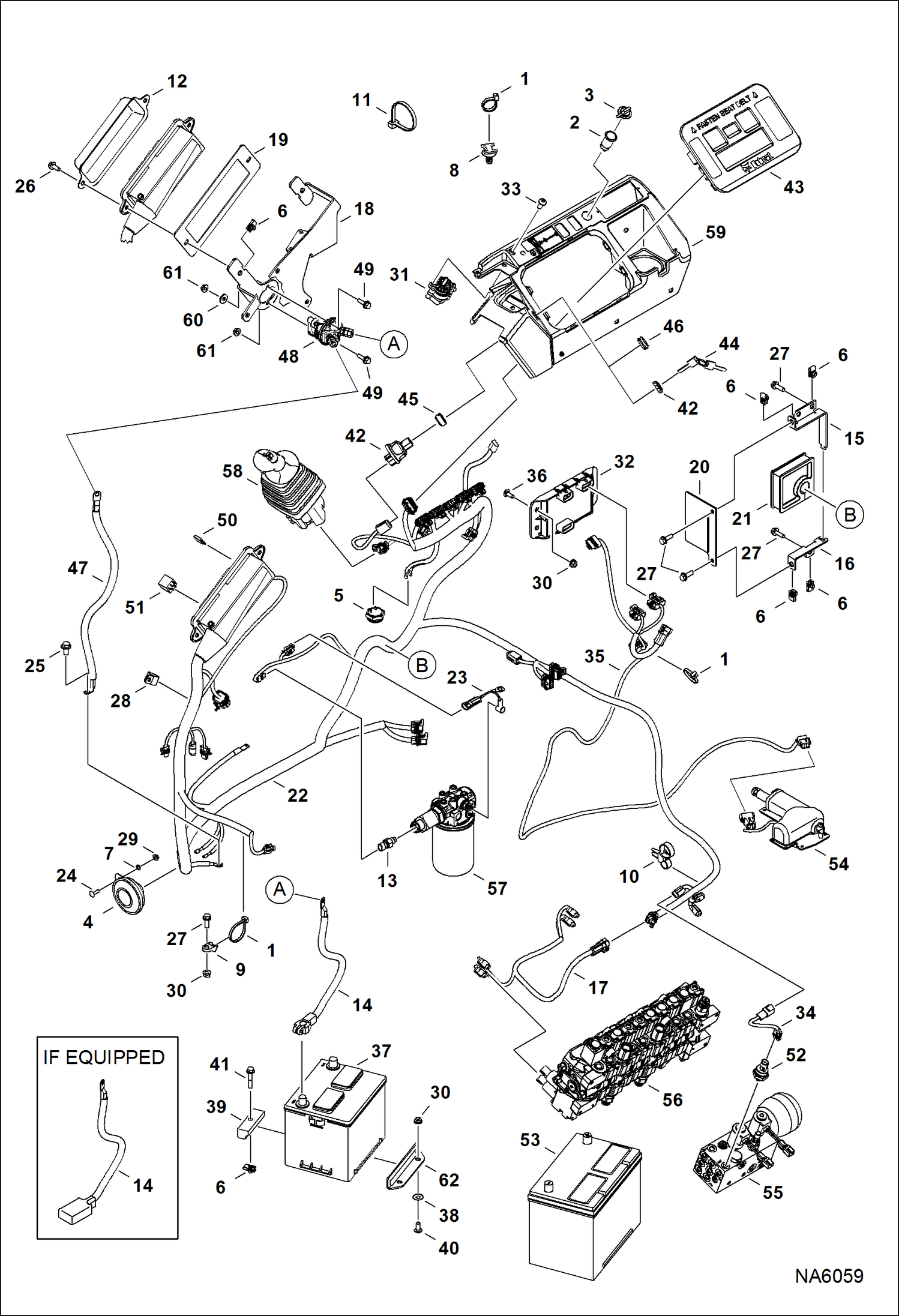

Схема запчастей Bobcat E25 - CONTROLS ELECTRICAL (RH Console) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6664223

OUTLET

3

6664224

CAP

4

6671106

HORN

5

6675705

ALARM

6

6676169

NUT

7

6675212

RETAINER

8

7015668

MOUNT, STRAP TIE

9

6678667

MOUNT

10

6678668

STRAP, DUAL TIE

11

6682345

STRAP, TIE 8

12

6716621

COVER

13

6727869

SENDER,HYD TEMP

14

6807431

CABLE

15

7178918

BRACKET

16

7178919

BRACKET

17

7188078

HARNESS, VALVE

18

7187703

BRACKET, RELAY CENTER

19

7187704

PLATE, SUPPORT

20

7192356

COVER, PLATE

21

7192357

GROMMET

22

7195840

HARNESS, FRAME

23

7198838

HARNESS, SWITCH

24

28CM620

BOLT CARRIAGE 8.8

25

29CM1020

BOLT

26

29CM820

SCREW

27

29CM825

BOLT

28

30H50

CLIP

29

43DM6

NUT

30

43DM8

NUT

31

6698640

CONTROL, THROTTLE

31

7022367

KNOB

32

7010112

CONTROLLER, THROTTLE AIC

33

7135909

SCREW

34

7192507

HARNESS, JUMPER

35

7201238

HARNESS, AUTO IDLE

36

28CM820

BOLT

37

6670251

BATTERY, DRY 530 AMP

38

6675859

RETAINER

39

7120672

TIE DOWN

40

28CM820

BOLT

41

29CM845

BOLT

42

6693245

SWITCH, IGN

43

6698608

CONTROLLER, KEYED PANEL

43

6698609

CONTROLLER, KEYLESS PANEL

44

6693241

KEY 10 ignition - single key W/O ring

45

7000328

ADAPTER, SWITCH IGN

46

6676922

PLUG

47

7167082

CABLE, NEGATIVE

48

7204459

SWITCH, DISCONNECT

49

29CM620

SCREW

50

6663289

FUSE, 5A

50

6654805

FUSE 10A

50

6654806

FUSE, 15A

50

6625575

FUSE, 20A

50

6702444

FUSE 25A 5

51

6679820

RELAY

52

6674316

SWITCH, PRESS OIL HYD

52

PLUG See Illustration THROTTLE CONTROL/ NA6055 W/O auto idle

53

6674687

BATTERY, DRY 600 AMP

54

6698169

ACTUATOR, THROTTLE See Illustration THROTTLE CONTROL/ NA6057

55

7204476

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA6098

56

7188867

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6140

57

7188836

FILTER, OIL HYD ASSY See Illustration HYDRAULIC OIL FILTER/ NA6101

58

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

59

COVER, RH See Illustration CONTROL CONSOLE/ NA6053

60

17EM60

WASHER

61

51DM6

NUT

62

7135397

CLAMP BATTERY

Выбрано товаров: 69
