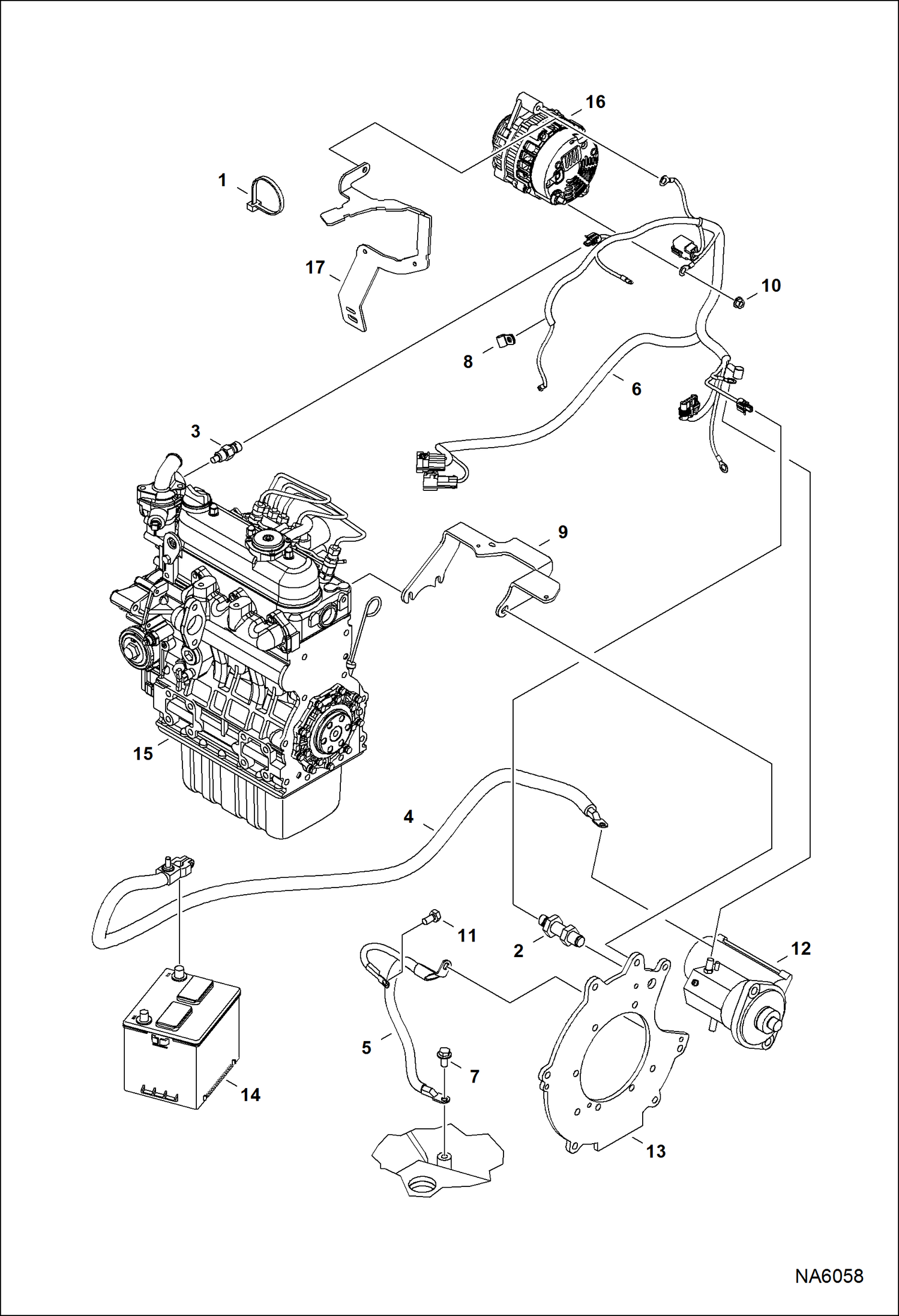

Запчасти Bobcat E25 ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6693921

SENSOR, RPM

3

6718414

SENDER, TEMP ENG

4

7161920

CABLE, POSITIVE

5

7161922

CABLE, NEGATIVE

6

7195838

HARNESS, ENG

7

29CM1020

BOLT

8

30H22

CLIP

9

BRACKET See Illustration THROTTLE CONTROL/ NA6057

10

43DM8

NUT

11

5CM1020

SCREW

12

STARTER See Illustration STARTER/ D2437

13

PLATE, FLYWHEEL See Illustration ENGINE & ATTACHING PARTS/ NA6063

14

BATTERY See Illustration CONTROLS ELECTRICAL/ NA6059

15

ENGINE See Illustration ENGINE & GASKET KITS/ NA6116

16

7008772

ALTERNATOR, 90 AMP See Illustration ALTERNATOR/ NA2234

17

7173770

BRACKET
