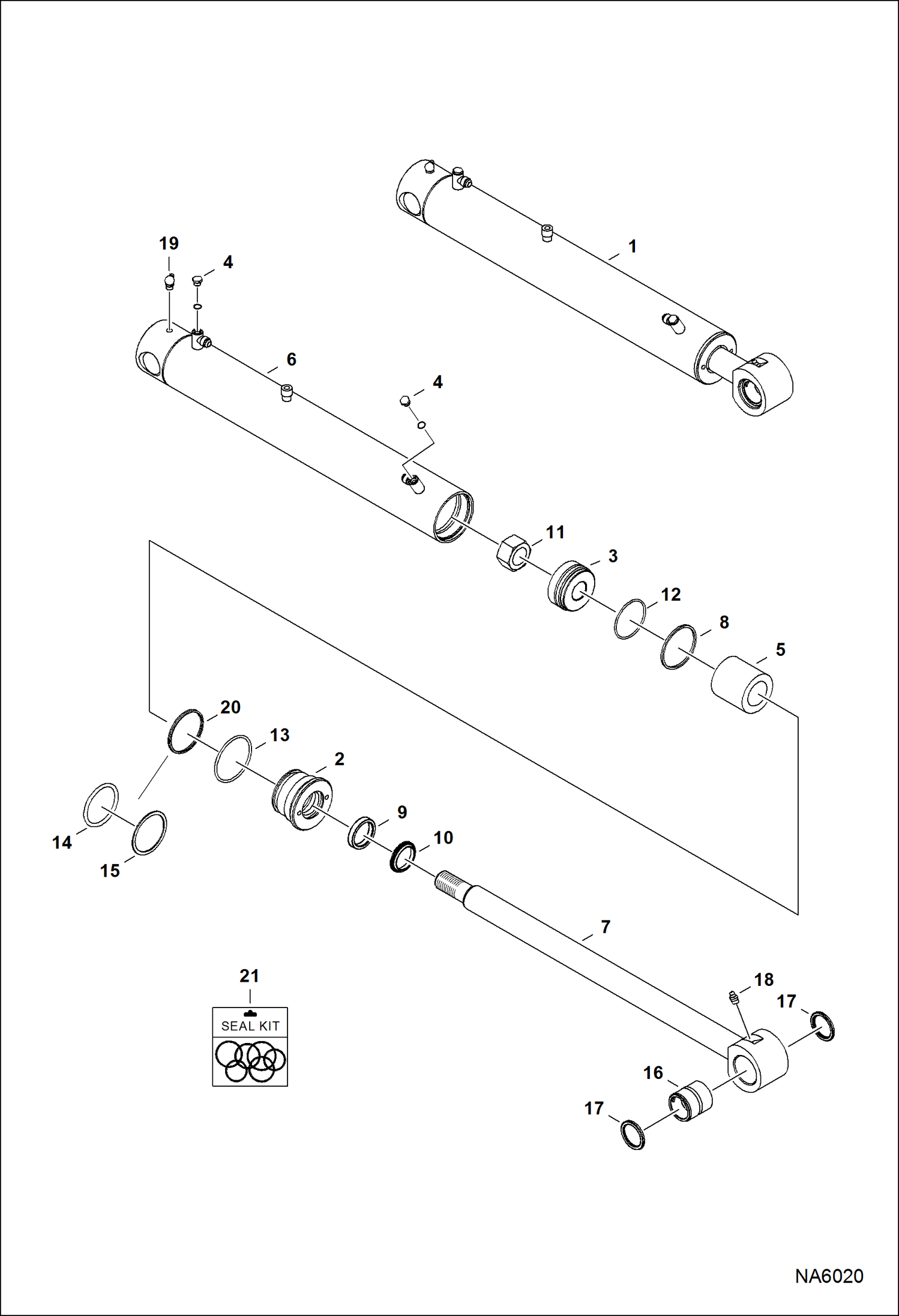

Запчасти Bobcat E25 BOOM SWING CYLINDER HYDRAULIC SYSTEM

1

7188883

CYLINDER, SWING Ref. 2-15 - Also Order Ref. 16-19

2

6586718

HEAD, CYL TILT

3

6588680

PISTON

4

6812170

PLUG

4

75K3

O-RING

5

7152125

SPACER

6

7188894

TUBE, CASE CYL W/Ref. 4 & 13 - Also Order Ref. 19

7

7188908

ROD, CYL Also Order Ref. 16-18

8

6516229

PISTON SEAL

9

6667326

SEAL

10

6690707

WIPER, ROD CYL

11

6810539

NUT

12

25K30210

O-RING

13

25K40224

O RING 10

14

25K60212

O RING 10

15

73K332

RING

16

6808246

BUSHING

17

6652915

SEAL, OIL

18

10H25

FITTING, GREASE 5

19

83F3

ELBOW 5

20

7008356

SEAL, QUAD

21

7199903

KIT, SEAL Ref. 8-13, & 20
