Запчасти Bobcat E25 ARM CYLINDER HYDRAULIC SYSTEM

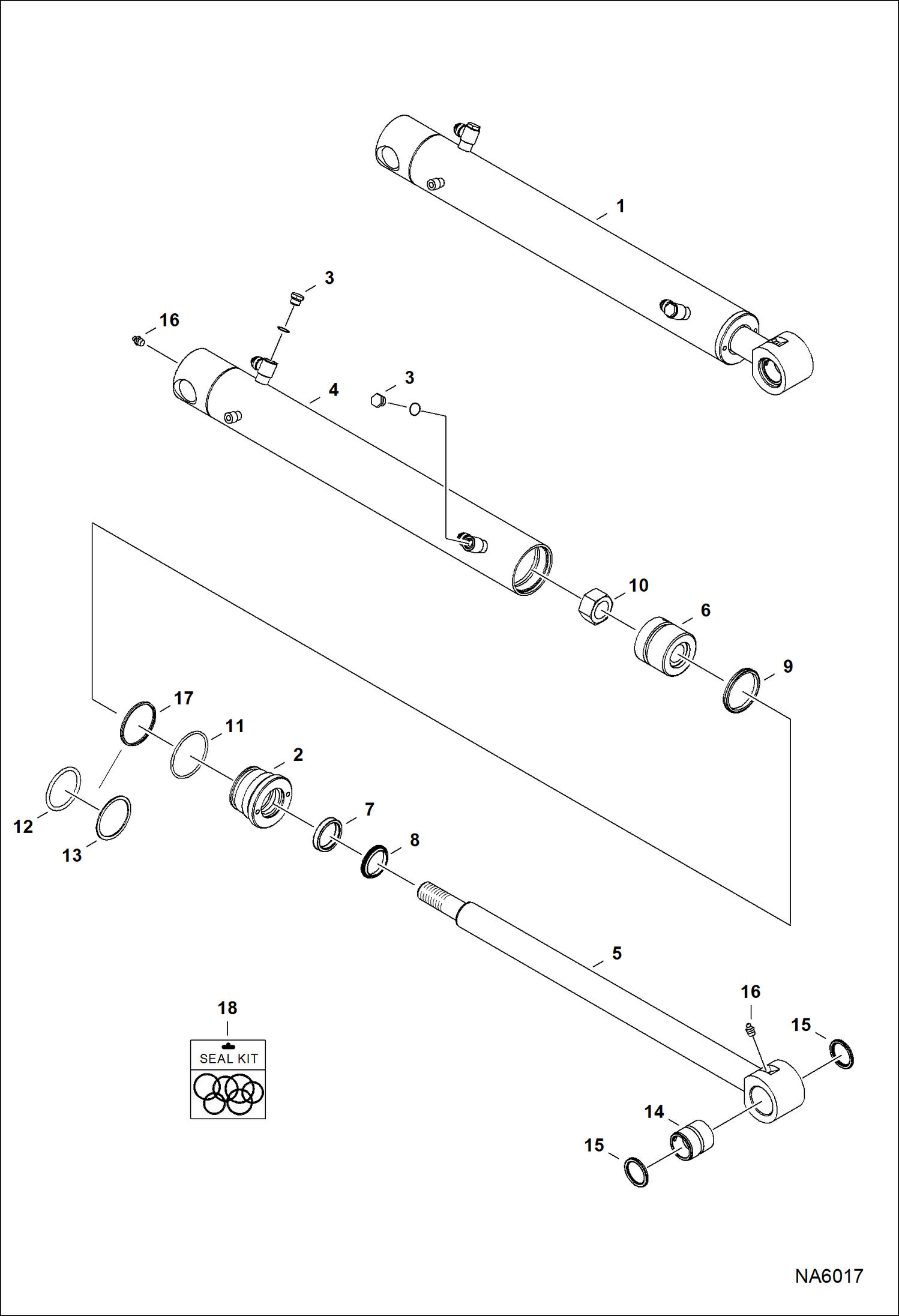

Схема запчастей Bobcat E25 - ARM CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7170962

CYLINDER, ARM Ref. 2-13 - Also Order Ref. 14-16

2

6800686

HEAD, CYL TILT

3

6812171

PLUG

3

75K6

O-RING

4

7170966

TUBE, CASE CYL W/Ref. 3 & 11 - Also Order Ref. 16

5

7170965

ROD, CYL Also Order Ref. 14-16

6

7171340

PISTON, CYL

7

6669267

SEAL

8

6687000

WIPER ROD

9

6692805

SEAL, BP

10

6810539

NUT

11

25K40224

O RING 10

12

25K60212

O RING 10

13

73K332

RING

14

6808246

BUSHING

15

6652915

SEAL, OIL

16

10H25

FITTING, GREASE 5

17

7008356

SEAL, QUAD

18

7201446

KIT, SEAL Ref. 7-11, & 17

Выбрано товаров: 19
