Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Slew Section) HYDRAULIC SYSTEM

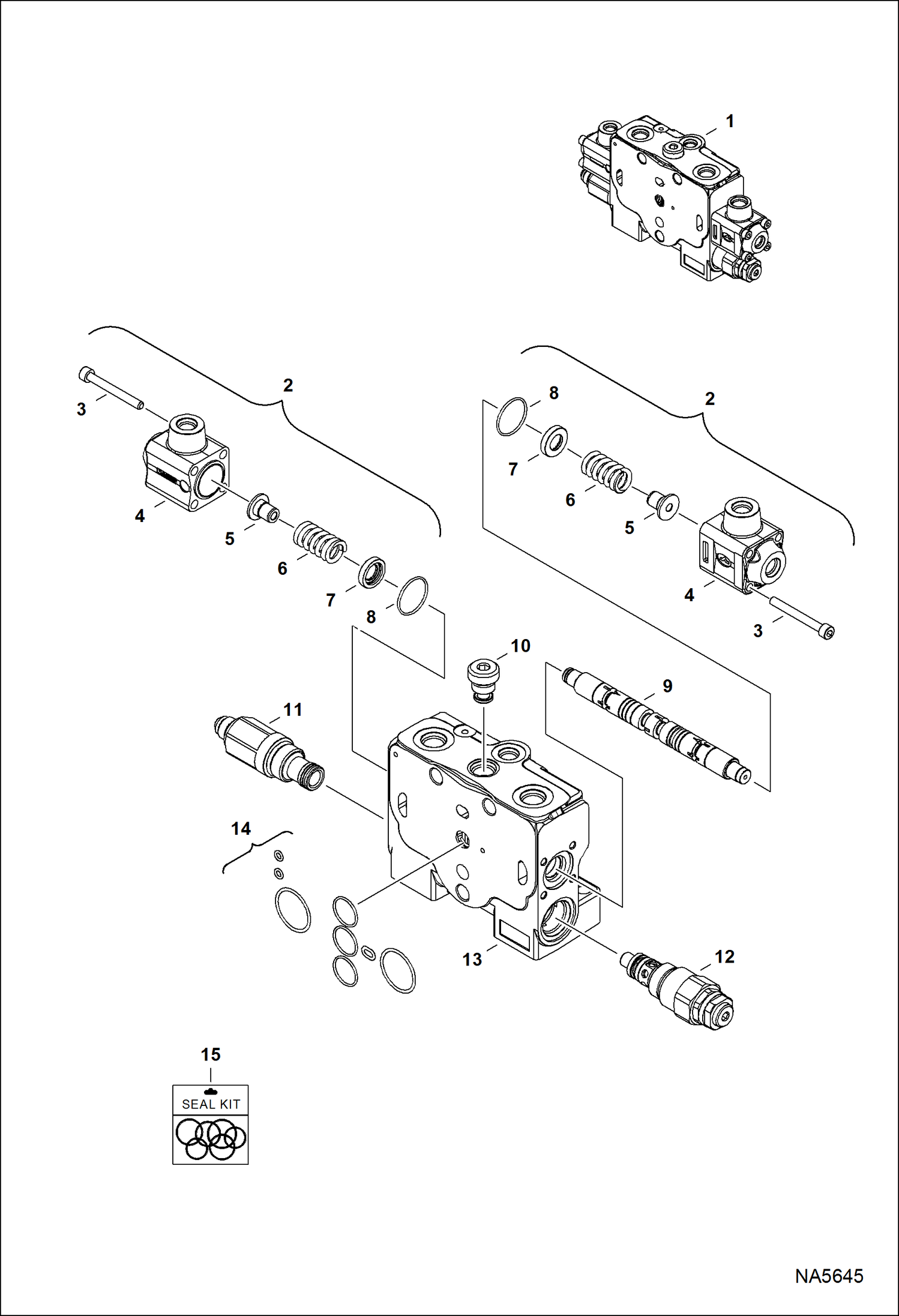

Схема запчастей Bobcat E25 - HYDRAULIC CONTROL VALVE (Slew Section) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7022953

SECTION, VALVE slew - Ref. 2-14

2

7022954

ACTUATOR

3

6682248

SCREW

4

BLOCK NSS

5

BUSHING NSS

6

SPRING NSS

7

BUSHING NSS

8

O-RING NSS

9

SPOOL NSS

10

6680092

VALVE, LOCK LOAD

11

7022957

VALVE, RELIEF

12

7022956

VALVE, RELIEF

13

BLOCK NSS

14

KIT, SEAL NSS

15

7022981

KIT, SEAL

Выбрано товаров: 15
