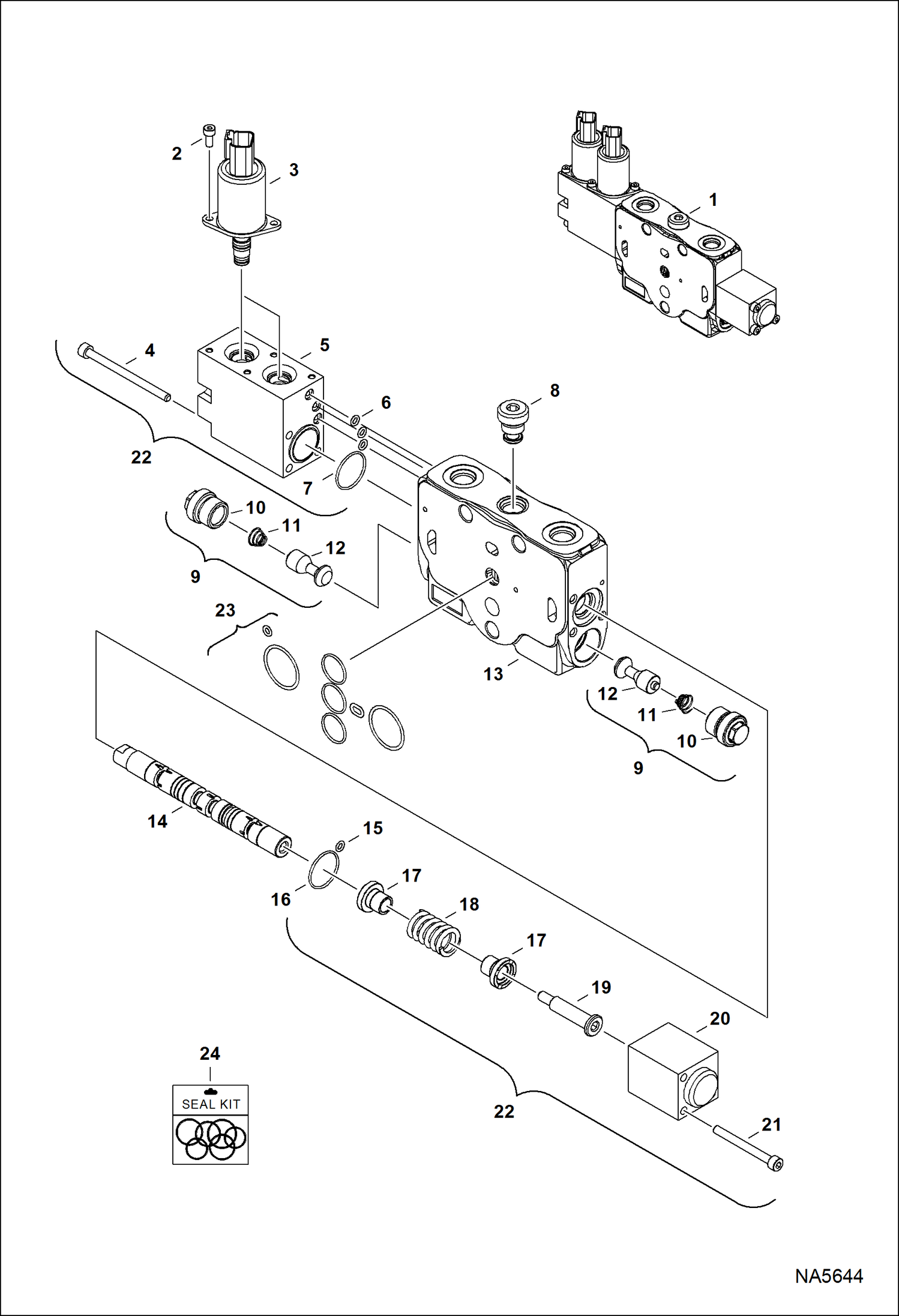

Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Boom Swing Section) HYDRAULIC SYSTEM

1

7022952

SECTION, VALVE boom swing - Ref. 2-22

2

6682230

SCREW

3

7010626

COIL, SOLENOID

4

7022971

BOLT

5

BLOCK NSS

6

O-RING NSS

7

O-RING NSS

8

6680092

VALVE, LOCK LOAD

9

6680247

VALVE

10

CAP NSS

11

SPRING NSS

12

VALVE NSS

13

BLOCK NSS

14

SPOOL NSS

15

O-RING NSS

16

O-RING NSS

17

BUSHING NSS

18

SPRING NSS

19

SCREW NSS

20

BLOCK NSS

21

6682247

BOLT

22

7022958

ACTUATOR Ref. 2-7, & 15-21

23

KIT, SEAL NSS

24

7022980

KIT, SEAL
