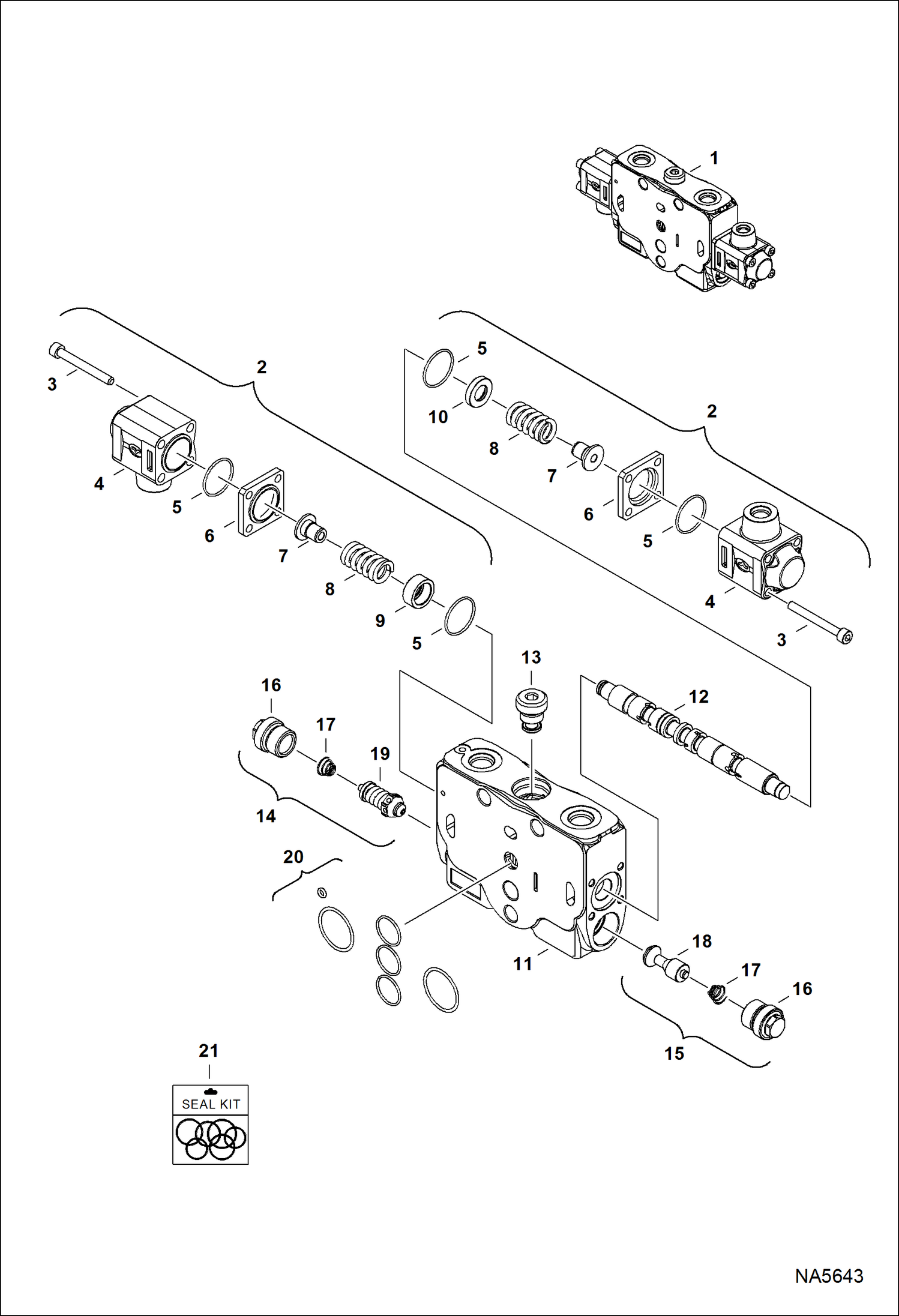

Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Blade Section) HYDRAULIC SYSTEM

1

7022951

SECTION, VALVE blade - Ref. 2-20

2

7022959

ACTUATOR

3

6682247

BOLT

4

BLOCK NSS

5

O-RING NSS

6

PLATE NSS

7

BUSHING NSS

8

SPRING NSS

9

BUSHING NSS

10

BUSHING NSS

11

BLOCK NSS

12

SPOOL NSS

13

6680092

VALVE, LOCK LOAD

14

6686073

VALVE

15

6680247

VALVE

16

CAP NSS

17

SPRING NSS

18

VALVE NSS

19

VALVE NSS

20

KIT, SEAL NSS

21

7022979

KIT, SEAL
