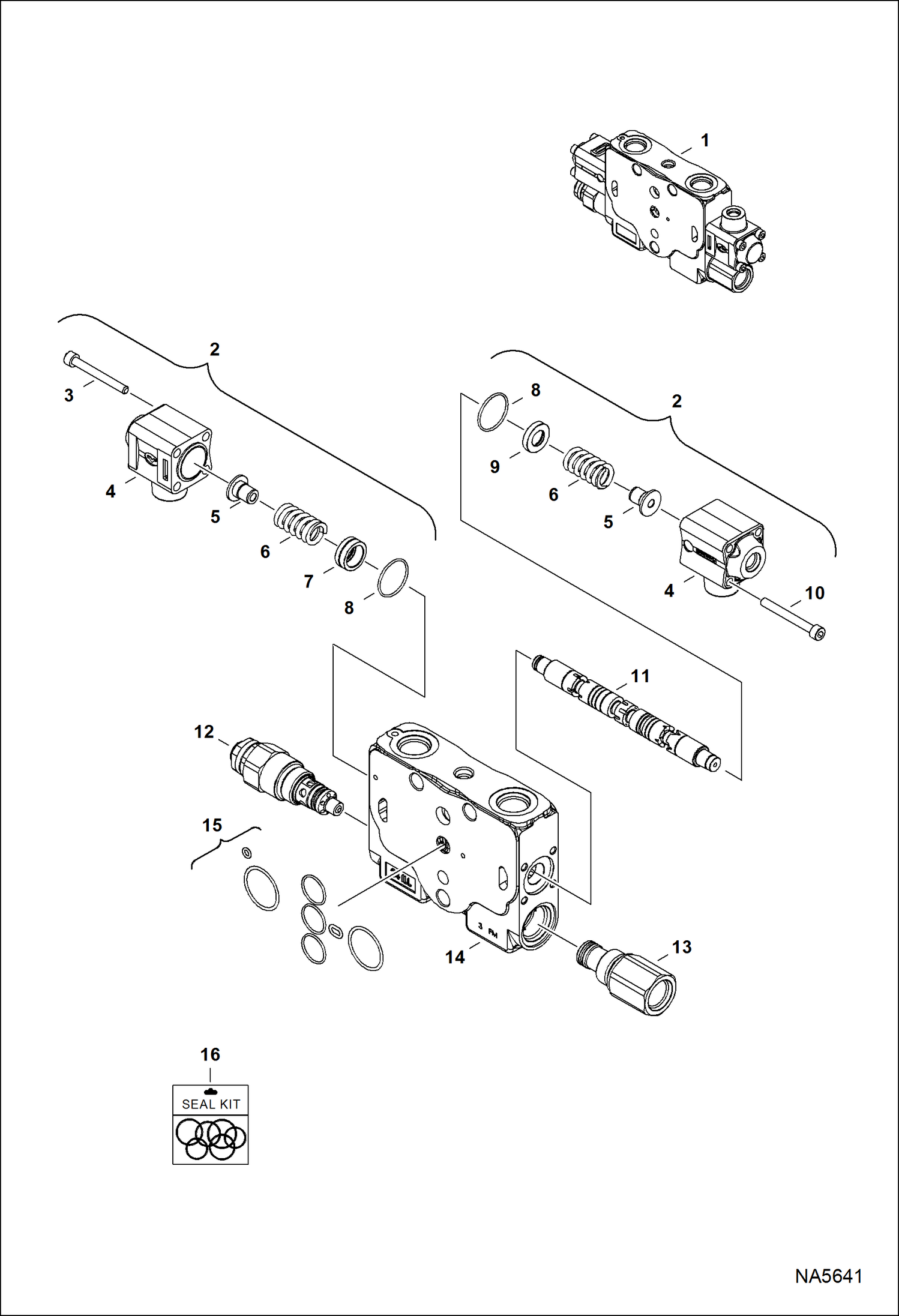

Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Left Travel Section) HYDRAULIC SYSTEM

1

7022949

SECTION, VALVE left travel - Ref. 2-15

2

7022961

ACTUATOR

3

6682247

BOLT

4

BLOCK NSS

5

BUSHING NSS

6

SPRING NSS

7

BUSHING NSS

8

O-RING NSS

9

BUSHING NSS

10

6682248

SCREW

11

SPOOL NSS

12

7022969

VALVE, RELIEF

13

6680119

VALVE

14

BLOCK NSS

15

KIT, SEAL NSS

16

7022977

KIT, SEAL
