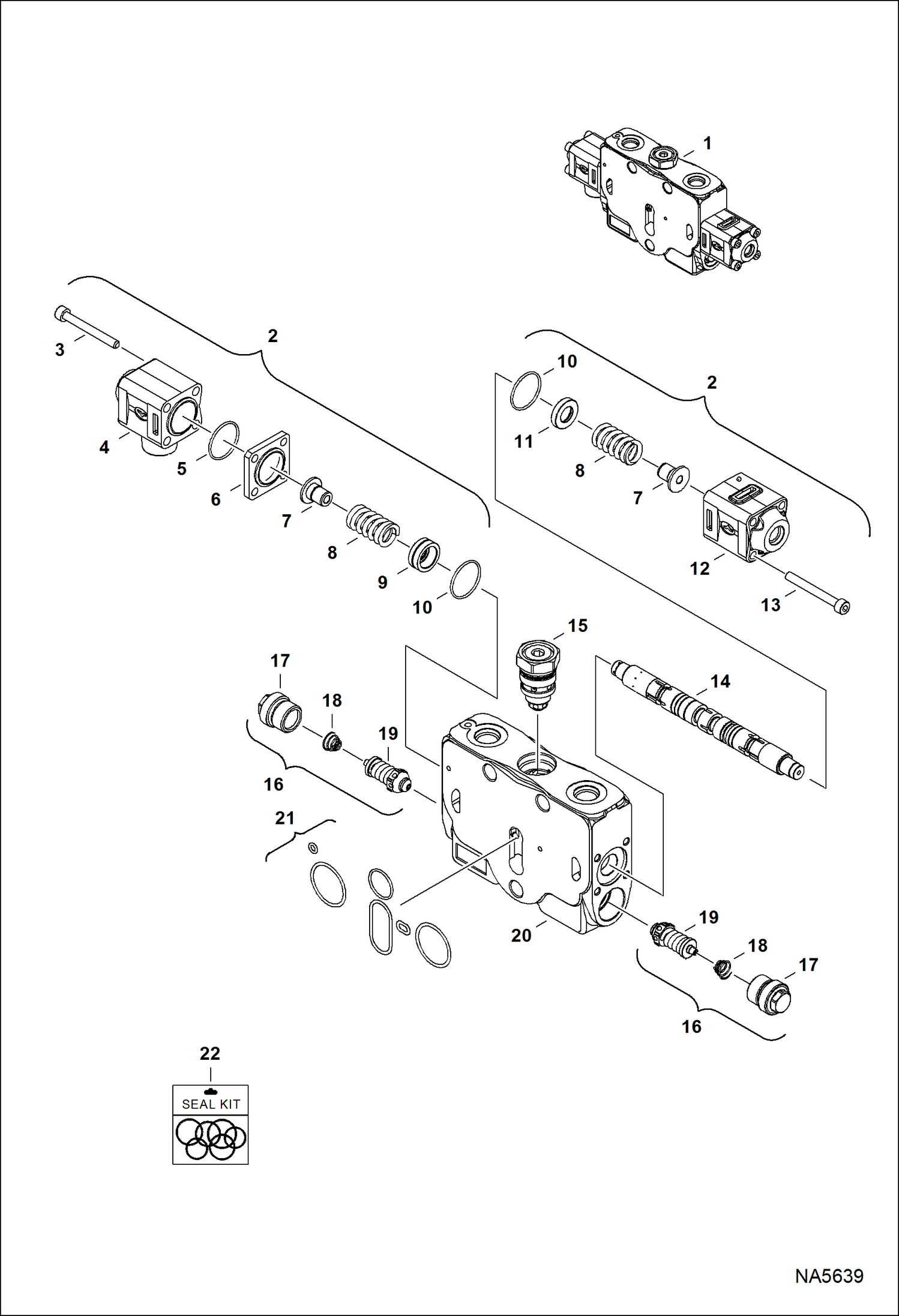

Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Bucket Section) HYDRAULIC SYSTEM

1

7022947

SECTION, VALVE bucket - Ref. 2-16

2

7022965

ACTUATOR

3

6682247

BOLT

4

BLOCK NSS

5

O-RING NSS

6

PLATE NSS

7

BUSHING NSS

8

SPRING NSS

9

BUSHING NSS

10

O-RING NSS

11

BUSHING NSS

12

BLOCK NSS

13

6682248

SCREW

14

SPOOL NSS

15

7022963

PLUG

16

6921052

PLUG

17

CAP NSS

18

SPRING NSS

19

VALVE NSS

20

BLOCK NSS

21

KIT, SEAL NSS

22

7022975

KIT, SEAL
