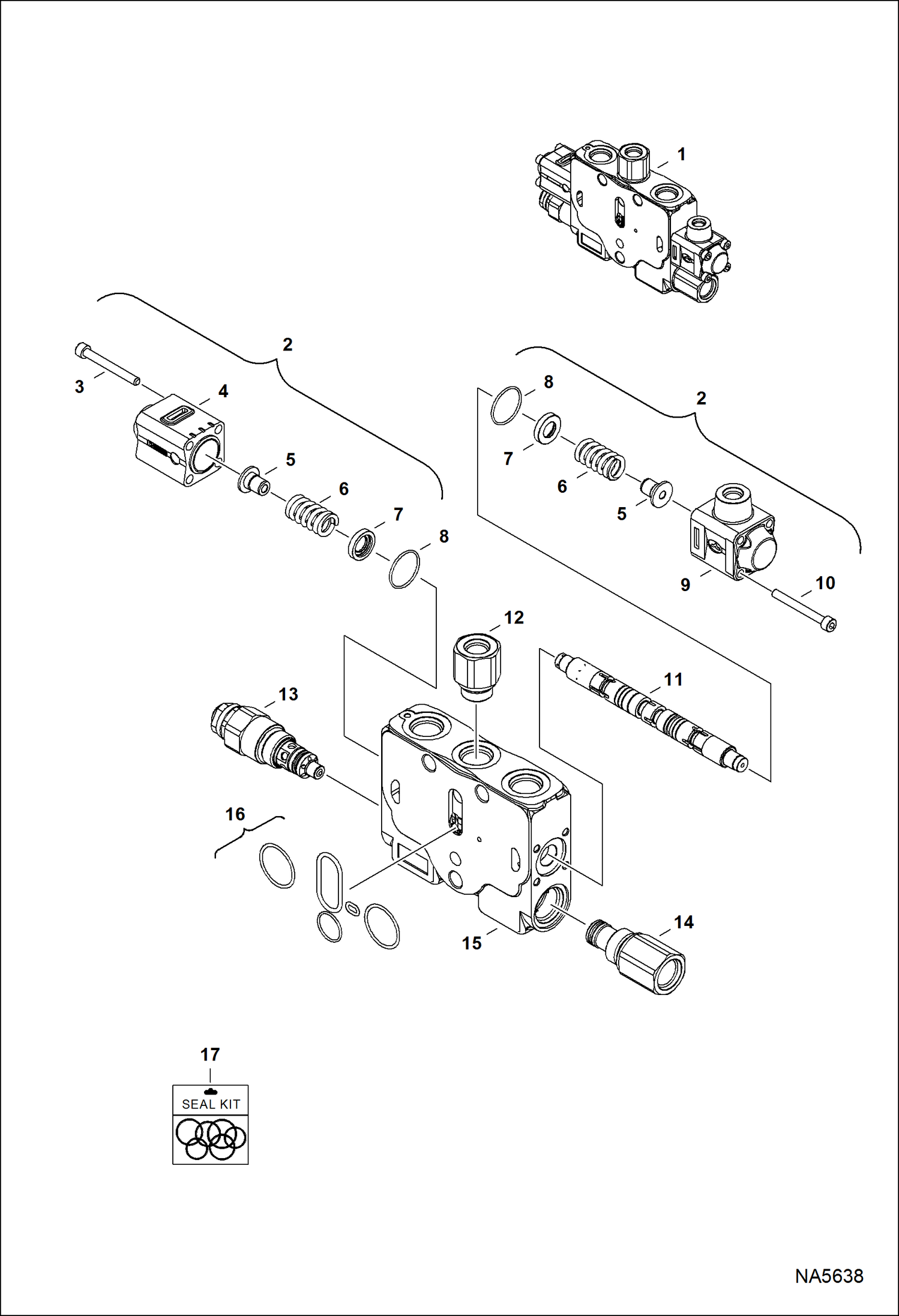

Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Right Travel Section) HYDRAULIC SYSTEM

1

7022946

SECTION, VALVE right travel - Ref. 2-16

2

7022961

ACTUATOR

3

6682247

BOLT

4

BLOCK NSS

5

BUSHING NSS

6

SPRING NSS

7

BUSHING NSS

8

O-RING NSS

9

BLOCK NSS

10

6682248

SCREW

11

SPOOL NSS

12

7022968

FITTING, HYD CONNECTOR

13

7022969

VALVE, RELIEF

14

6680119

VALVE

15

BLOCK NSS

16

KIT, SEAL NSS

17

7022974

KIT, SEAL
