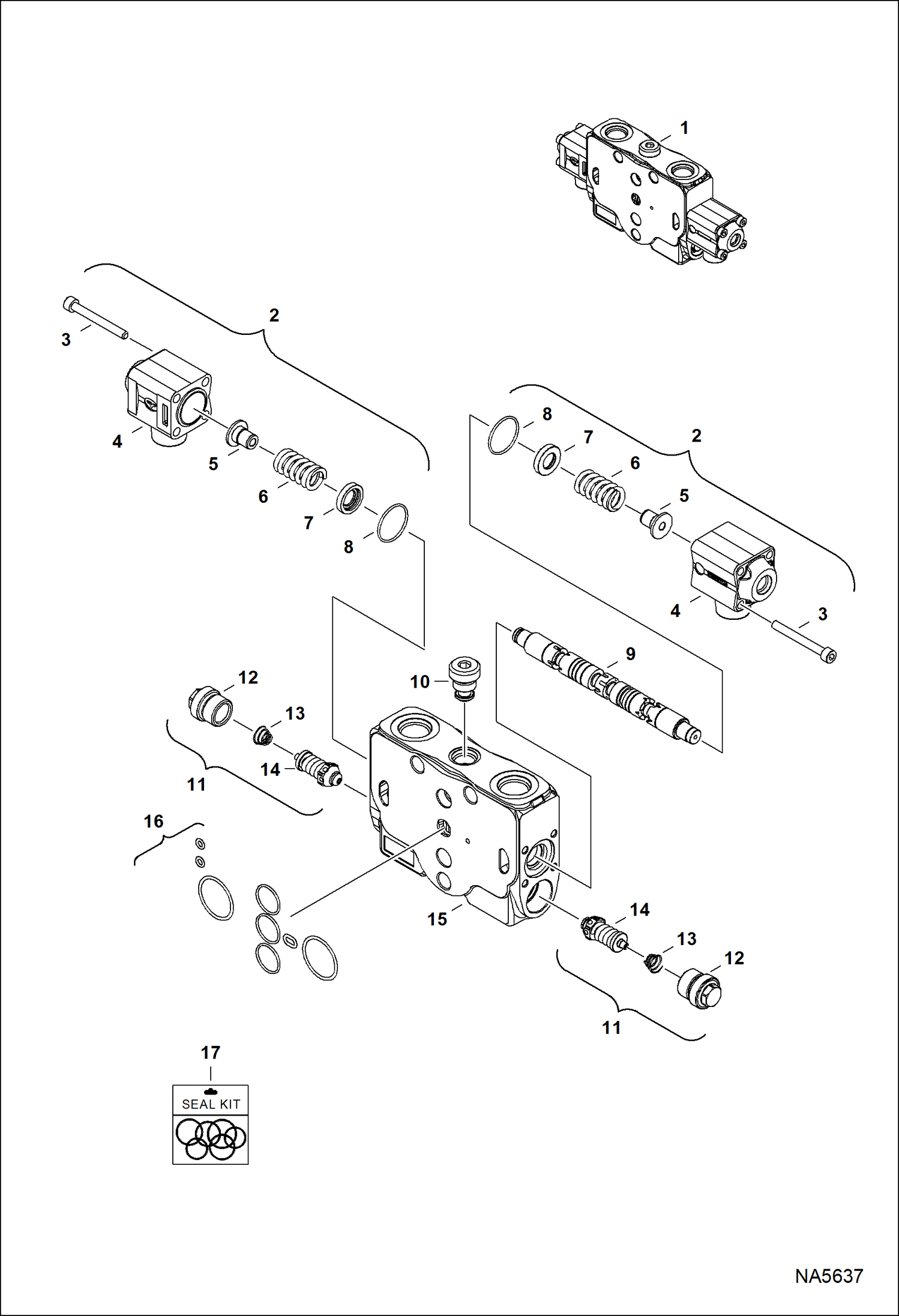

Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Arm Section) HYDRAULIC SYSTEM

1

7022945

SECTION, VALVE arm - Ref. 2-16

2

7022970

ACTUATOR

3

6682248

SCREW

4

BLOCK NSS

5

BUSHING NSS

6

SPRING NSS

7

BUSHING NSS

8

O-RING NSS

9

SPOOL NSS

10

6680092

VALVE, LOCK LOAD

11

7022966

PLUG

12

CAP NSS

13

SPRING NSS

14

VALVE NSS

15

BLOCK NSS

16

KIT, SEAL NSS

17

7022973

KIT, SEAL
