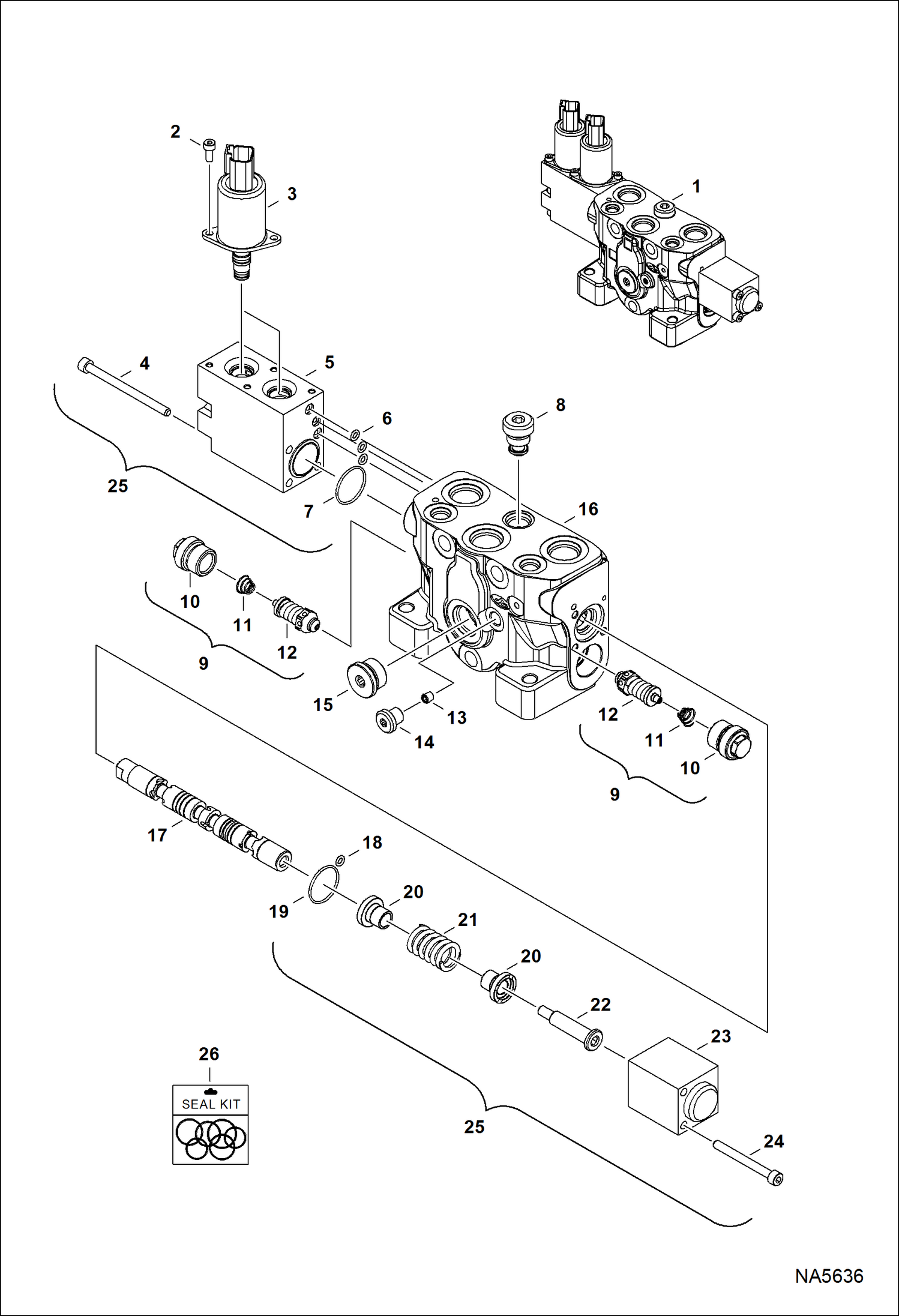

Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Auxiliary Section) HYDRAULIC SYSTEM

1

7022944

SECTION, VALVE aux - Ref. 2-25

2

6682230

SCREW

3

7010626

COIL, SOLENOID

4

7022971

BOLT

5

BLOCK NSS

6

O-RING NSS

7

O-RING NSS

8

6680092

VALVE, LOCK LOAD

9

6685776

KIT

10

CAP NSS

11

SPRING NSS

12

VALVE NSS

13

7022385

PLUG

14

6685333

PLUG

15

6679600

PLUG

16

BLOCK NSS

17

SPOOL NSS

18

O-RING NSS

19

O-RING NSS

20

BUSHING NSS

21

SPRING NSS

22

SCREW NSS

23

BLOCK NSS

24

6682247

BOLT

25

7022958

ACTUATOR Ref. 2-7, & 18-24

26

7022972

KIT, SEAL
