Запчасти Bobcat E25 HYDRAULIC CONTROL VALVE (Assembly) HYDRAULIC SYSTEM

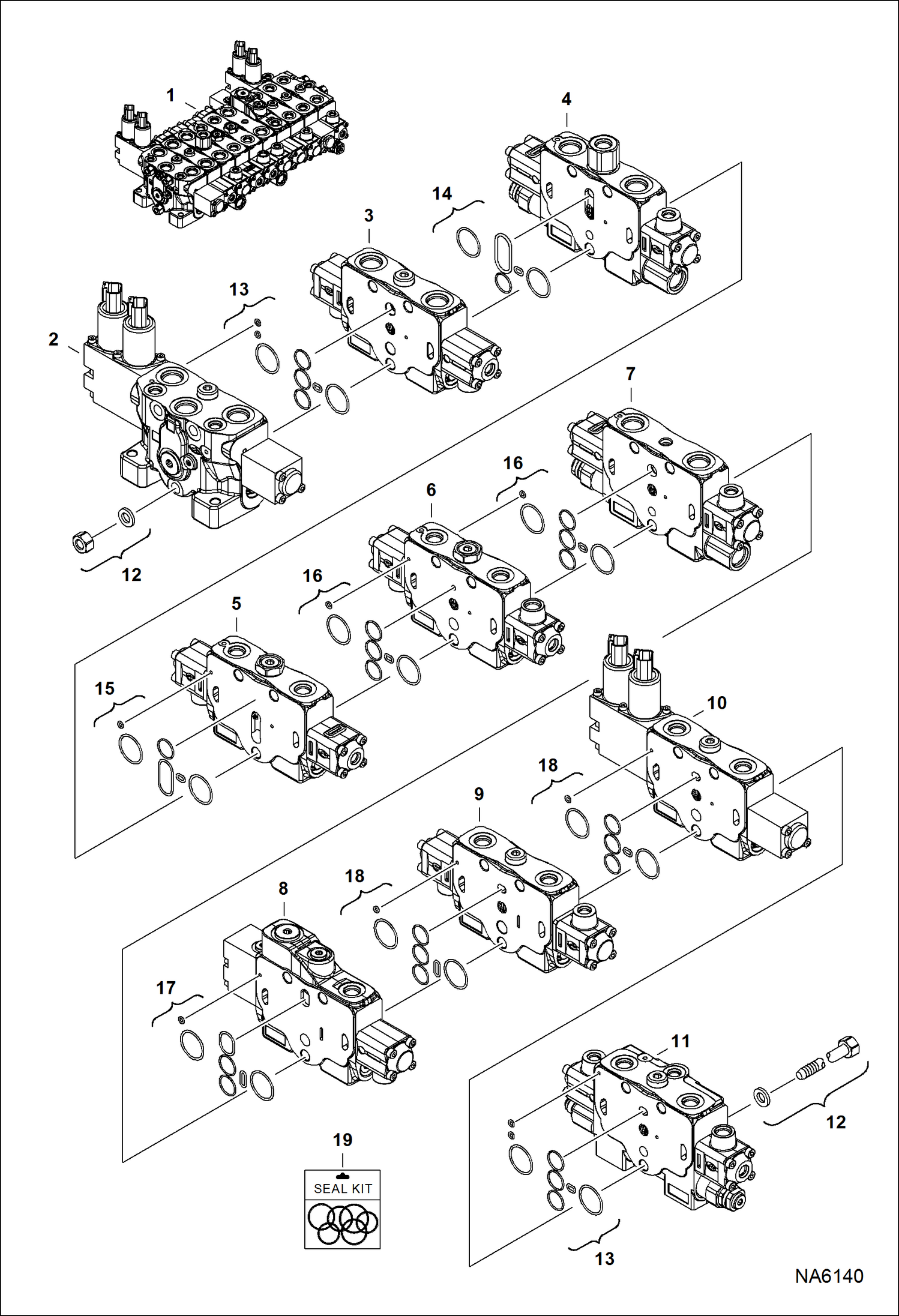

Схема запчастей Bobcat E25 - HYDRAULIC CONTROL VALVE (Assembly) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7188867

VALVE, CONTROL Ref. 2-18

2

7022944

SECTION, VALVE

3

7022945

SECTION, VALVE

4

7022946

SECTION, VALVE

5

7022947

SECTION, VALVE

6

7022948

SECTION, VALVE

7

7022949

SECTION, VALVE

8

7022950

SECTION, VALVE

9

7022951

SECTION, VALVE

10

7022952

SECTION, VALVE

11

7022953

SECTION, VALVE

12

7022955

KIT, ROD TIE

13

KIT, SEAL NSS

14

KIT, SEAL NSS

15

KIT, SEAL NSS

16

KIT, SEAL NSS

17

KIT, SEAL NSS

18

KIT, SEAL NSS

19

7022982

KIT, SEAL COMPLETE

Выбрано товаров: 19
