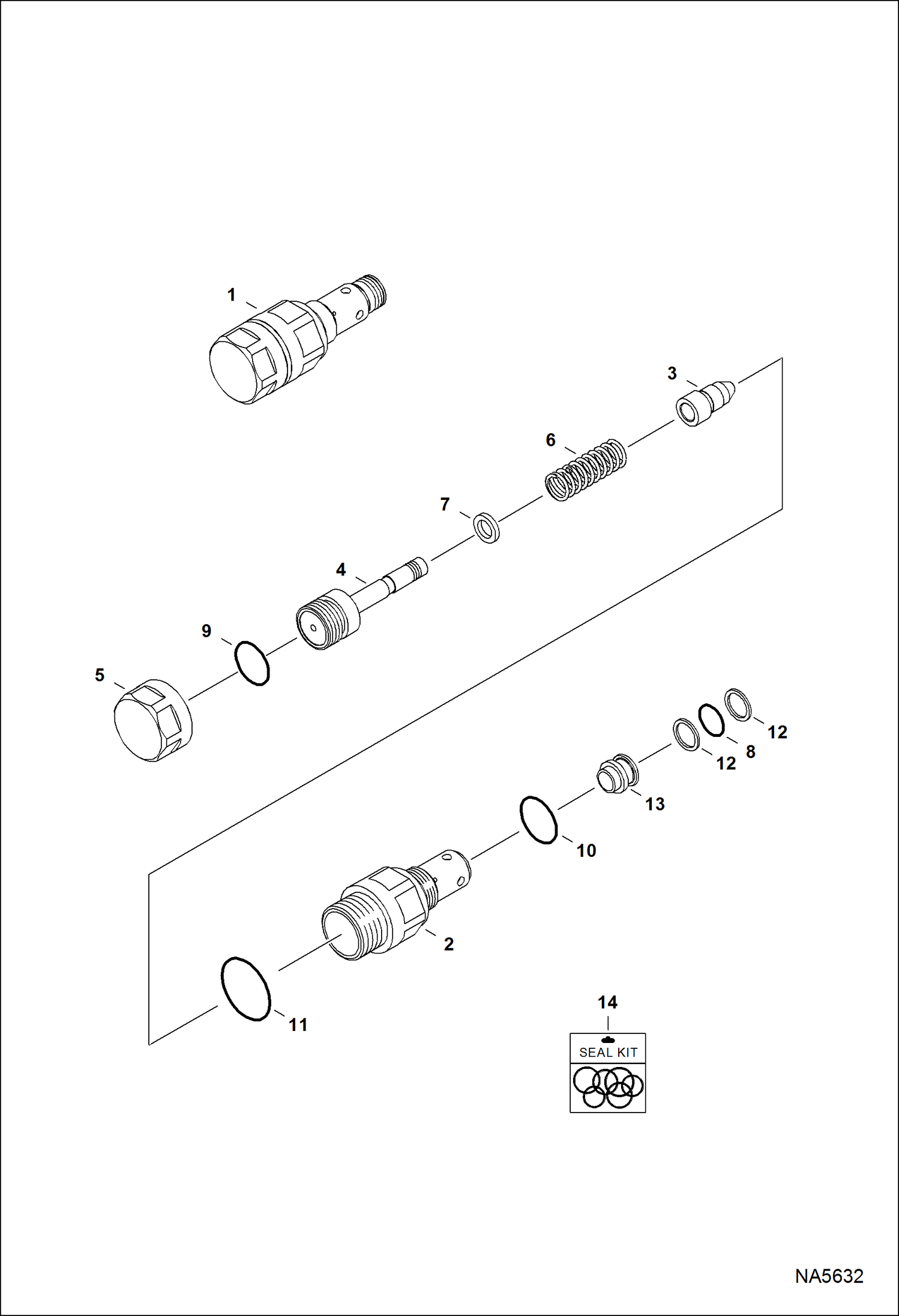

Запчасти Bobcat E25 SLEW MOTOR (Relief Valve) HYDRAULIC SYSTEM

1

7022836

VALVE, RELIEF Ref. 2-13

2

RETAINER NSS

3

POPPET NSS

4

PISTON NSS

5

CAP NSS

6

SPRING NSS

7

SPACER NSS

8

7010812

O-RING

9

7010813

O-RING

10

7010814

O-RING

11

7010815

O-RING

12

7010816

RING, BACK-UP

13

SEAT NSS

14

7010829

KIT, SEAL Ref. 8-12
