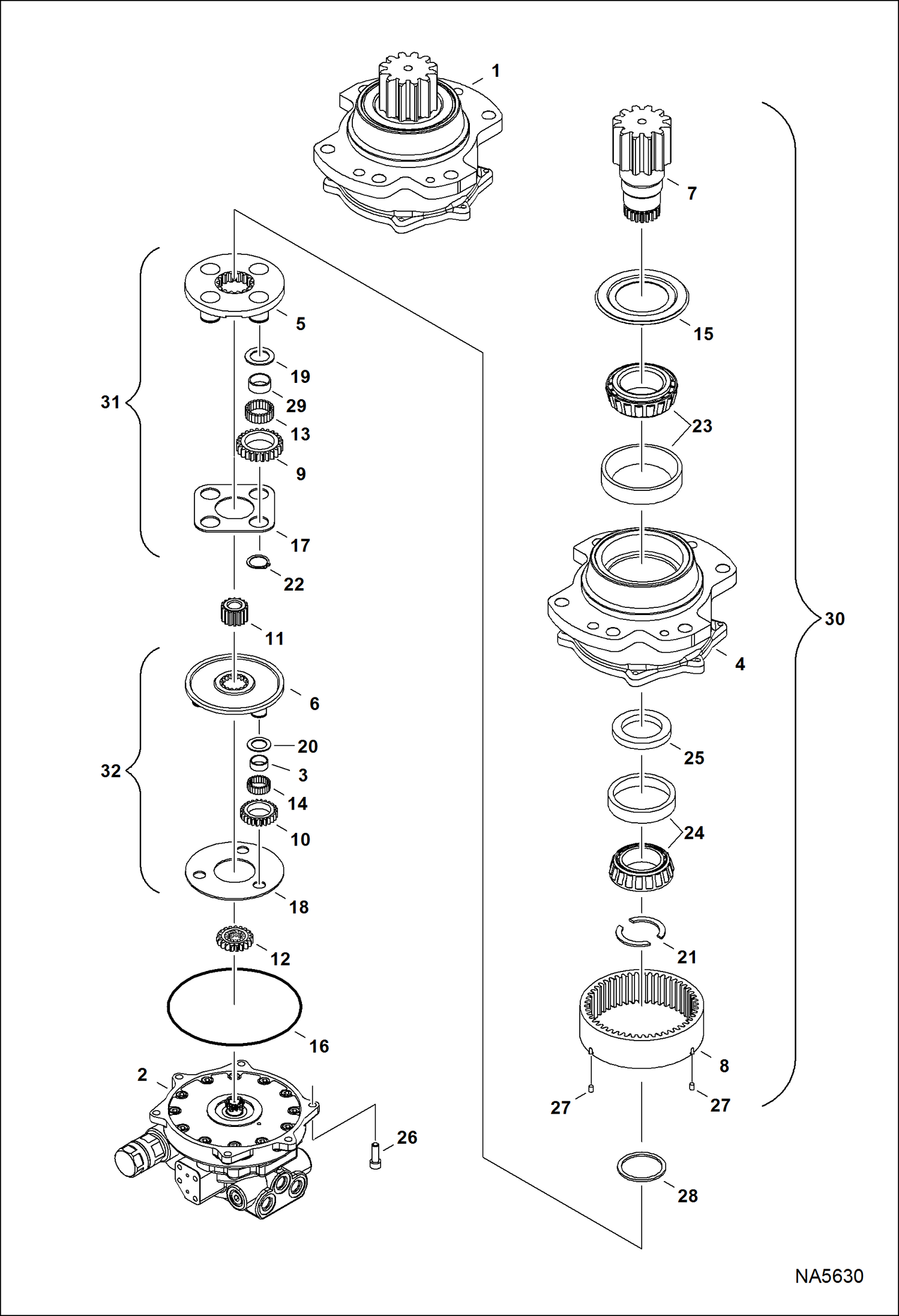

Запчасти Bobcat E25 SLEW MOTOR (Carrier) HYDRAULIC SYSTEM

1

CARRIER, ASSY NSS - Ref. 3-29

2

MOTOR, HYD See Illustration SLEW MOTOR/ NA6828 NSS

3

RING NSS

4

HOUSING NSS

5

CARRIER NSS

6

CARRIER NSS

7

SHAFT, PINION NSS

8

GEAR NSS

9

GEAR NSS

10

GEAR NSS

11

7022827

GEAR, MOTOR

12

7010796

GEAR, DRIVEN

13

NEEDLE NSS

14

NEEDLE NSS

15

SEAL, RING NSS

16

7022828

O-RING

17

PLATE, THRUST NSS

18

PLATE, THRUST NSS

19

WASHER, THRUST NSS

20

WASHER, THRUST NSS

21

COLLAR NSS

22

7010798

RING, SNAP

23

BEARING NSS

24

BEARING NSS

25

SEAL, OIL NSS

26

7010799

SCREW

27

PIN NSS

28

7022829

RING

29

RING NSS

30

7022831

KIT, PINION Ref. 4, 7, 8, 15, 21, 23-25, & 27

31

7022832

KIT, CARRIER Ref. 5, 9, 13, 17, 19, 22, & 29

32

7010824

KIT, CARRIER Ref. 3, 6, 10, 14, 18, & 20
