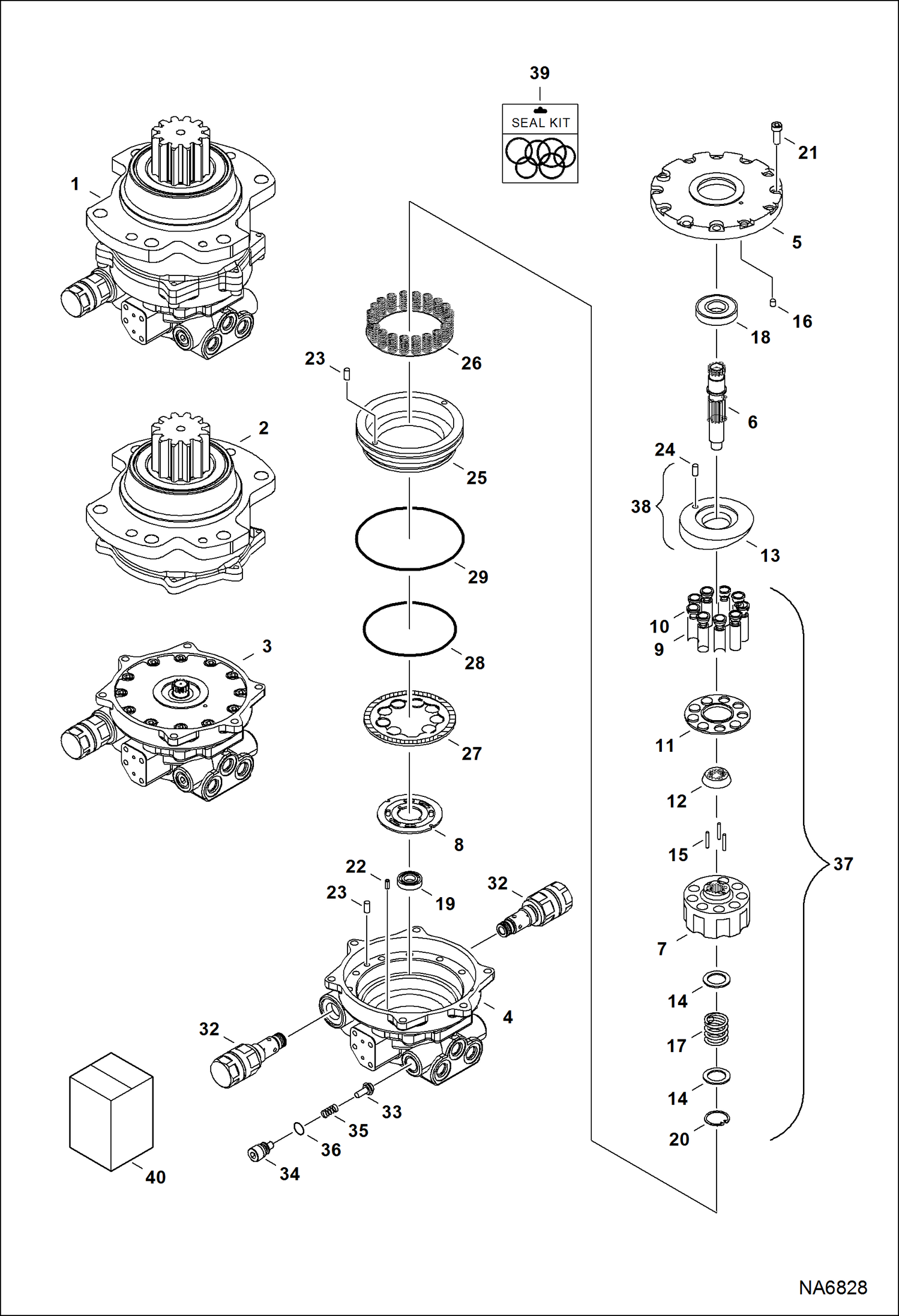

Запчасти Bobcat E25 SLEW MOTOR (Assy) HYDRAULIC SYSTEM

1

7219299

MOTOR, HYD SLEW Ref. 2-36

2

CARRIER, ASSY See Illustration SLEW MOTOR/ NA5630 NSS

3

MOTOR, HYD NSS

4

HOUSING NSS

5

COVER, PLATE NSS

6

SHAFT, MOTOR NSS

7

BARREL, CYLINDER NSS

8

PLATE, VALVE NSS

9

PISTON NSS

10

SHOE NSS

11

HOLDER, SHOE NSS

12

HOLDER, BARREL NSS

13

SWASHPLATE NSS

14

RETAINER NSS

15

PIN NSS

16

7010801

SCREEN, DEBRIS

17

SPRING NSS

18

7022830

BEARING, MOTOR SLEW

19

7010803

BEARING, MOTOR SLEW

20

7010804

RING, SNAP

21

7010799

SCREW

22

PIN, SPRING NSS

23

7010807

PIN

24

PIN NSS

25

PISTON, BREAK NSS

26

SPRING, ASSY NSS

27

PLATE, DISK NSS

28

7010808

O-RING

29

7010809

O-RING

32

7022836

VALVE, RELIEF See Illustration SLEW MOTOR/ NA5632

33

VALVE, CHECK NSS

34

PLUG NSS

35

SPRING NSS

36

7010811

O-RING

37

7022834

KIT, ROTARY GROUP Ref. 7, 9-12, 14, 15, 17, & 20

38

7022835

KIT, SWASHPLATE Ref. 13 & 24

39

7010828

KIT, SEAL Ref. 28, 29, & 36

40

7022833

KIT, HOUSING MOTOR Ref. 4, 19, 22, & 33-36
