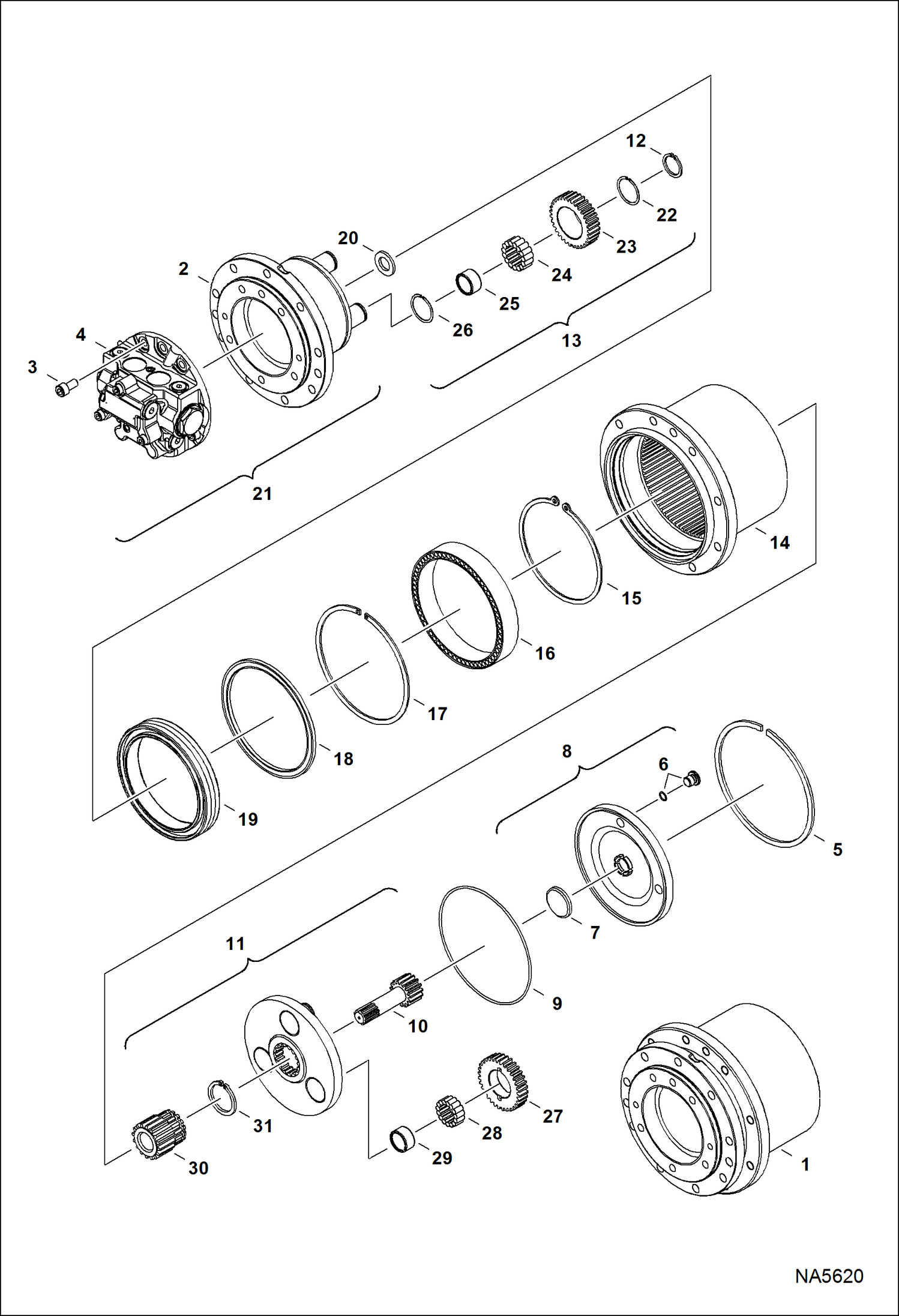

Запчасти Bobcat E25 TRAVEL MOTOR (Gear Box) HYDRAULIC SYSTEM

1

GEAR BOX NSS

2

HUB NSS - Order Ref. 21

3

7022814

SCREW

4

PLATE, BASE ASSY NSS - Order Ref. 21

5

7022798

CIRCLIP

6

7022799

PLUG, MOTOR

7

7022800

PAD

8

7022801

COVER, ASSY

9

7022802

O-RING

10

7022803

GEAR

11

7022804

GEAR, MOTOR

12

7022805

CIRCLIP

13

7022806

GEAR, MOTOR

14

HOUSING NSS

15

7022807

CIRCLIP

16

7022808

BEARING, MOTOR TRAVEL

17

7022809

CIRCLIP

18

7022810

DISC

19

7022811

SEAL, RING

20

7022812

RING, SUPPORT

21

7022813

MOTOR, TRAVEL See Illustration TRAVEL MOTOR/ NA6099 Ref. 2-4

22

RING NSS - Order Ref. 13

23

GEAR NSS - Order Ref. 13

24

NEEDLE NSS - Order Ref. 13

25

RING NSS - Order Ref. 13

26

RING NSS - Order Ref. 13

27

GEAR NSS - Order Ref. 11

28

NEEDLE NSS - Order Ref. 11

29

RING NSS - Order Ref. 11

30

GEAR NSS - Order Ref. 11

31

CIRCLIP NSS - Order Ref. 11
