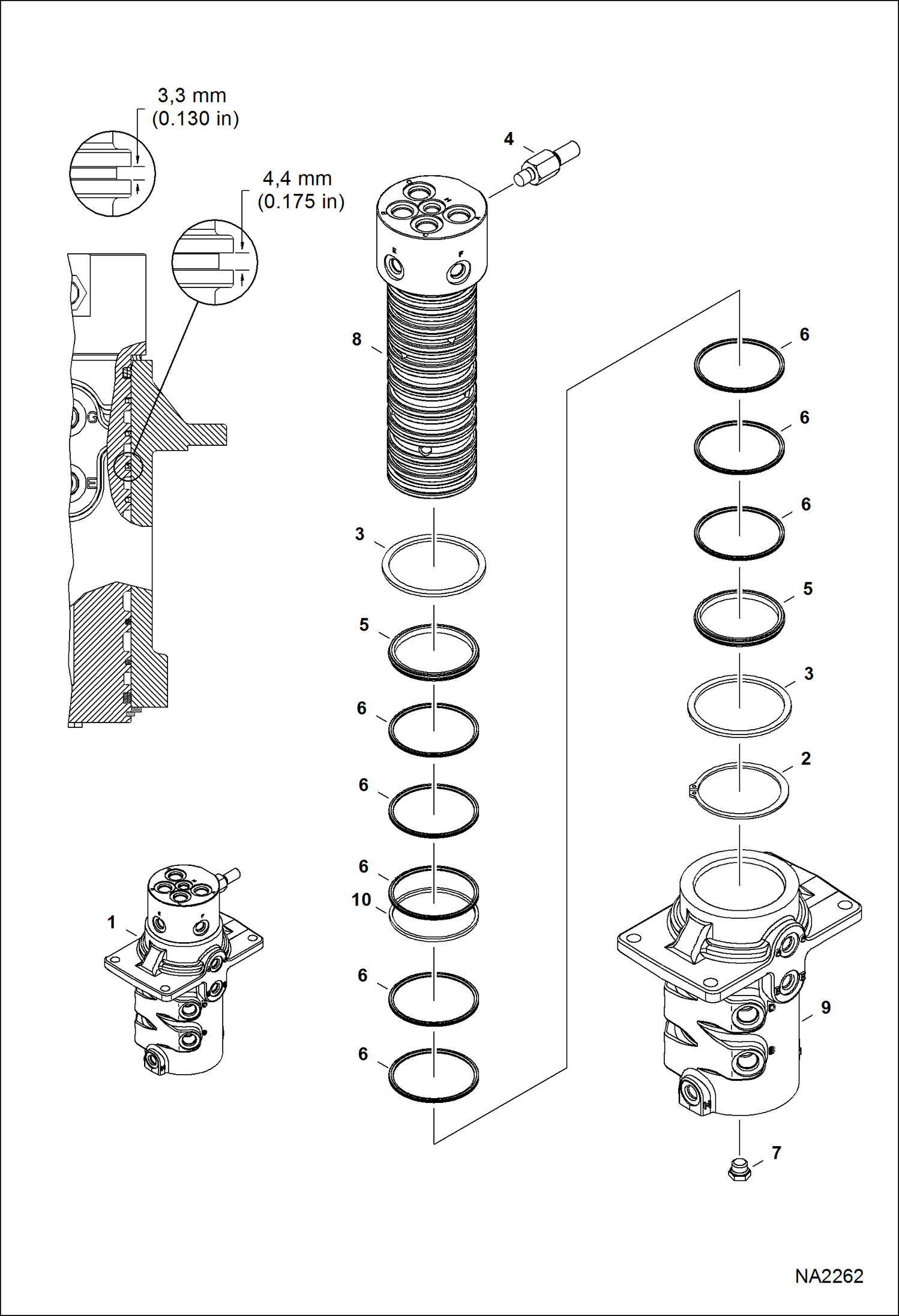

Запчасти Bobcat E25 SWIVEL ASSY HYDRAULIC SYSTEM

1

SWIVEL, HYD ASSY NLA - Ref. 2-9 - Was 7143734 - A

1

7143734

SWIVEL, HYD ASSY Ref. 2-10

2

6662076

RING

3

6674221

WASHER

4

6810029

STOP

5

7100535

SEAL

6

6810813

SEAL, OIL 2 pc seal

7

6812171

PLUG

7

79K6

O RING 10

8

7143717

SPOOL, SWIVEL

9

BARREL NLA - Order Ref. 1

10

6679248

RING Use W/Ref. 6 W/spool W/4,44 mm (.175'') groove height on the third O-ring groove from the top
