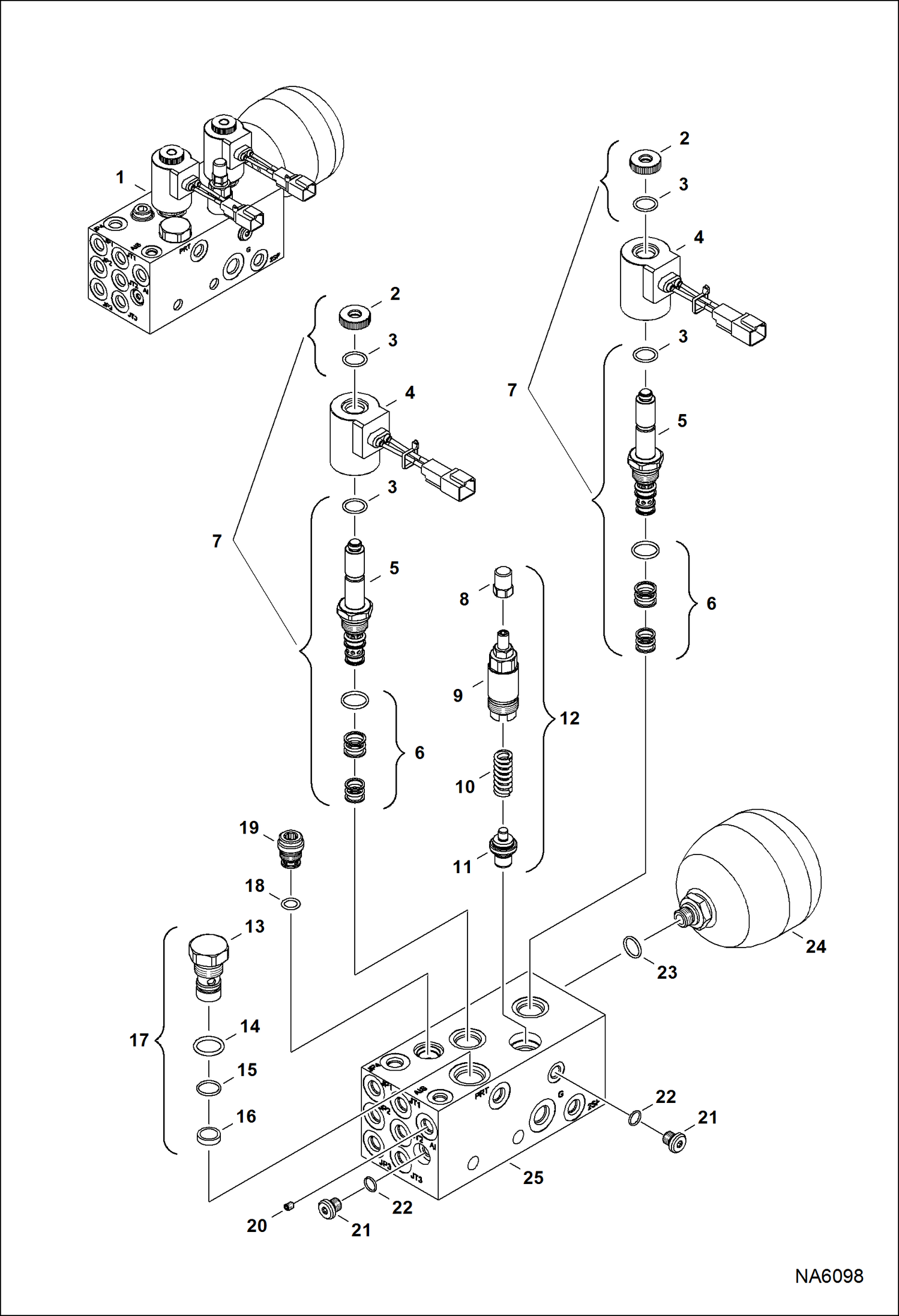

Запчасти Bobcat E25 MANIFOLD ASSY HYDRAULIC SYSTEM

1

7204476

MANIFOLD, HYD ASSY Ref. 2-25

2

6679076

NUT

3

SEAL NLA - Was 6679603

4

7010625

COIL, SOLENOID

5

STEM NSS

6

6679078

SEAL KIT

7

6678988

VALVE does not include Ref. 4

8

NUT NSS

9

VALVE NSS

10

SPRING NSS

11

STEM NSS

12

7010629

VALVE, RELIEF

13

PLUG NSS

14

O-RING NLA - Was 6679693

15

SEAL NLA - Was 6679603

16

COLLAR NSS

17

7022942

PLUG

18

7010628

O-RING

19

6678990

VALVE W/Ref. 18

20

7022943

ORIFICE

21

6678993

PLUG W/Ref. 22

22

O-RING NSS

23

79K6

O RING 10

24

6669537

ACCUMULATOR

25

BLOCK NSS
