Запчасти Bobcat E25 HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

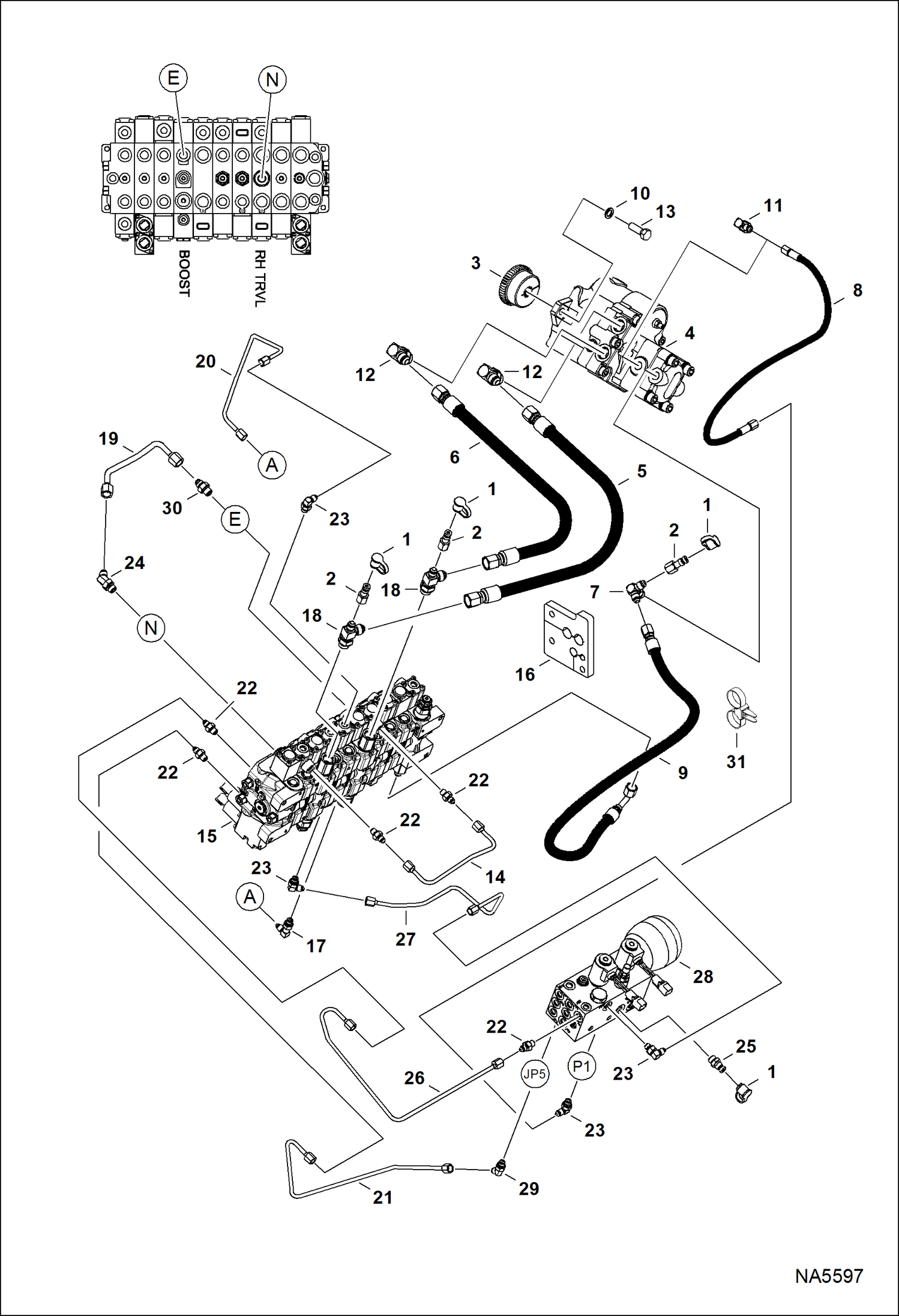

Схема запчастей Bobcat E25 - HYDRAULIC CIRCUITRY (Manifold & Pump) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6630367

CAP

2

6661753

PLUG

3

6676535

COUPLER

4

7209325

PUMP, HYD PISTON See Illustration HYDRAULIC PISTON PUMP/ NA6097

5

7190914

HOSE, HYD

6

7190916

HOSE, HYD

7

6725182

TEE Was 7192313 - A

7

79K6

O RING 10

8

7200897

HOSE, HYD

9

7204395

HOSE, HYD

10

15EM120

WASHER

11

17KB0406

FITTING, HYD ELBOW

11

79K6

O RING 10

12

17KB0810

FITTING, HYD ELBOW

12

79K10

O RING 10

13

55CM1235

BOLT

14

7173477

TUBELINE, HYD

15

7188867

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6140

16

7188872

SEAL, HOSE

17

7188886

FITTING, HYD ELBOW

17

79K4

O RING 10

18

7196932

FITTING, HYD TEE

18

79K8

O RING 10

19

7204057

TUBELINE, HYD

20

7204258

TUBELINE, HYD

21

7204767

TUBELINE, HYD

22

15KB0404

FTG HYD S Connector

22

79K4

O RING 10

23

17KB0404

FTG HYD ELBOW 90

23

79K4

O RING 10

24

18KB0606

FITTING, HYD ELBOW

24

79K6

O RING 10

25

6630168

COUPLER

25

79K6

O RING 10

26

7188857

TUBELINE, HYD

27

7188858

TUBELINE, HYD

28

7204476

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA6098

29

18KB0404

FTG HYD ELBOW 45

29

79K4

O RING 10

30

15KB0606

FITTING, HYD CONNECTOR

30

79K6

O RING 10

31

6678668

STRAP, DUAL TIE

Выбрано товаров: 42
