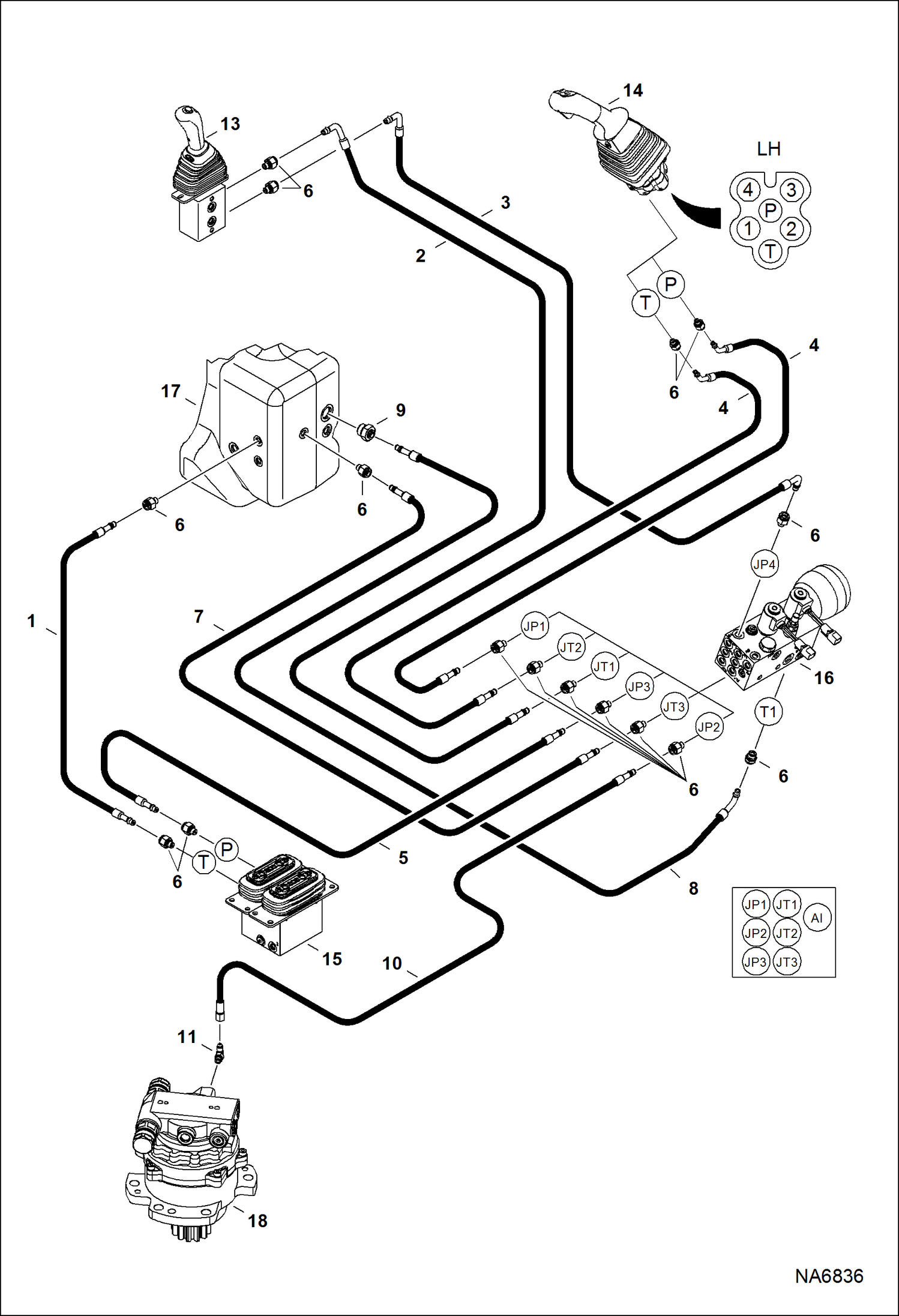

Запчасти Bobcat E25 HYDRAULIC CIRCUITRY (Pilot W/O and W/ JPS) HYDRAULIC SYSTEM

1

7196580

HOSE, HYD

2

7196581

HOSE, HYD

3

7196582

HOSE, HYD

4

7198633

HOSE, HYD

5

7202316

HOSE, HYD

6

10L0604

FITTING, HYD CONNECTOR

6

78K4

O'RING

6

7011053

CLIP

7

7201281

HOSE, HYD

8

7201282

HOSE, HYD

9

10L0610

FITTING, HYD CONNECTOR

9

78K4

O'RING

9

7011053

CLIP

10

7202286

HOSE, HYD

11

17KB0404

FTG HYD ELBOW 90 See Illustration LH JOYSTICK/ NA2224

11

79K4

O RING 10

11

TEE See Illustration SECONDARY AUXILIARY KIT/ NA6846 W/second aux

13

7217763

BLADE, JOYSTICK See Illustration BLADE JOYSTICK/ NA6759

14

7025236

HANDLE, JOYSTICK

15

7180565

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2979

16

7204476

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA6098

17

TANK, HYD See Illustration HYDRAULIC CIRCUITRY/ NA6848

18

7219299

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA6828
