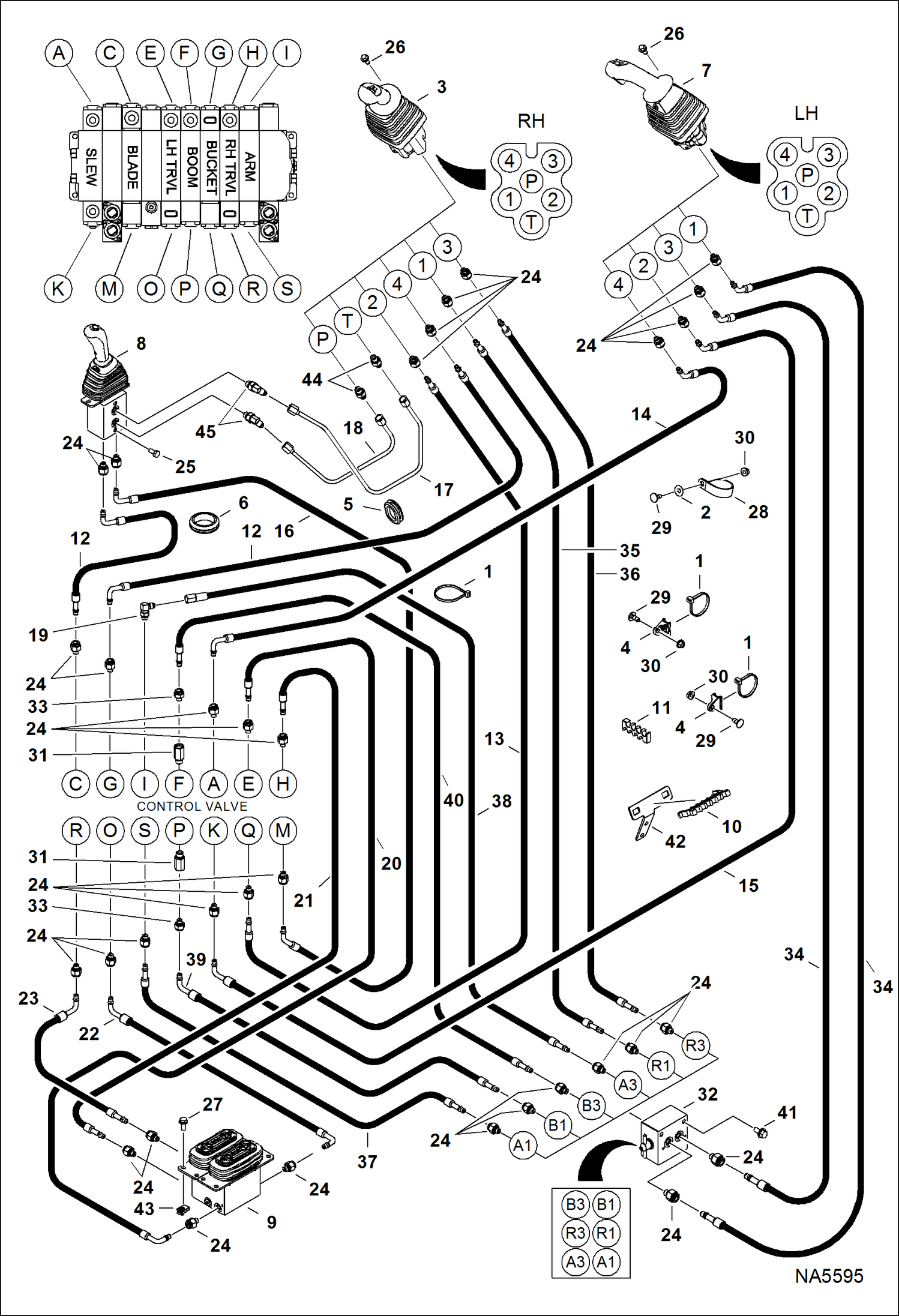

Запчасти Bobcat E25 HYDRAULIC CIRCUITRY (Pilot W/ JPS) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6675859

RETAINER

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

3

7220732

JOYSTICK, RH See Illustration RH JOYSTICK/ NA8064

4

6678818

MOUNT

5

6681886

GROMMET

6

6806443

GROMMET

7

7008320

LEVER, JOYSTICK W/PWM See Illustration LH JOYSTICK/ NA2224

7

7220733

JOYSTICK, LH See Illustration LH JOYSTICK/ NA8065

8

7217763

BLADE, JOYSTICK See Illustration BLADE JOYSTICK/ NA6759

9

7180565

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2979

10

7188861

CLIP, HOSE

11

7188862

CLIP, HOSE

12

7196565

HOSE, HYD

13

7196568

HOSE, HYD

14

7196574

HOSE, HYD

15

7196578

HOSE, HYD

16

7196583

HOSE, HYD

17

7196584

HOSE, HYD

18

7196585

HOSE, HYD

18

7191229

TUBELINE, HYD

19

7196586

HOSE, HYD

19

7191228

TUBELINE, HYD

20

17KB0404

FTG HYD ELBOW 90

20

79K4

O RING 10

21

7202312

HOSE, HYD

22

7202313

HOSE, HYD

23

7202314

HOSE, HYD

24

7202315

HOSE, HYD

25

10L0604

FITTING, HYD CONNECTOR

25

78K4

O'RING

25

7011053

CLIP

26

1CM816

BOLT

27

26GM8020

SCREW

28

29CM820

SCREW

29

30H85

CLAMP

30

33CM820

BOLT

31

43DM8

NUT

32

7012494

ORIFICE

32

79K6

O RING 10

33

7193055

VALVE, JPS See Illustration SELECTOR VALVE ASSY/ NA2118

34

10L0606

FITTING, HYD CONNECTOR

34

78K6

O'RING

34

7011053

CLIP

35

7198641

HOSE, HYD

36

7198643

HOSE HYDRAULIC ASSY

37

7198644

HOSE, HYD

38

7198645

HOSE, HYD

39

7198646

HOSE, HYD

40

7204094

HOSE, HYD

41

7204095

HOSE, HYD

42

29CM816

SCREW

43

7192355

HOLDER See Illustration HYDRAULIC CIRCUITRY/ NA5590

44

6676169

NUT

45

10L0604

FITTING, HYD CONNECTOR

45

15KB0404

FTG HYD S Connector

46

10L0604

FITTING, HYD CONNECTOR

46

18KB0404

FTG HYD ELBOW 45
