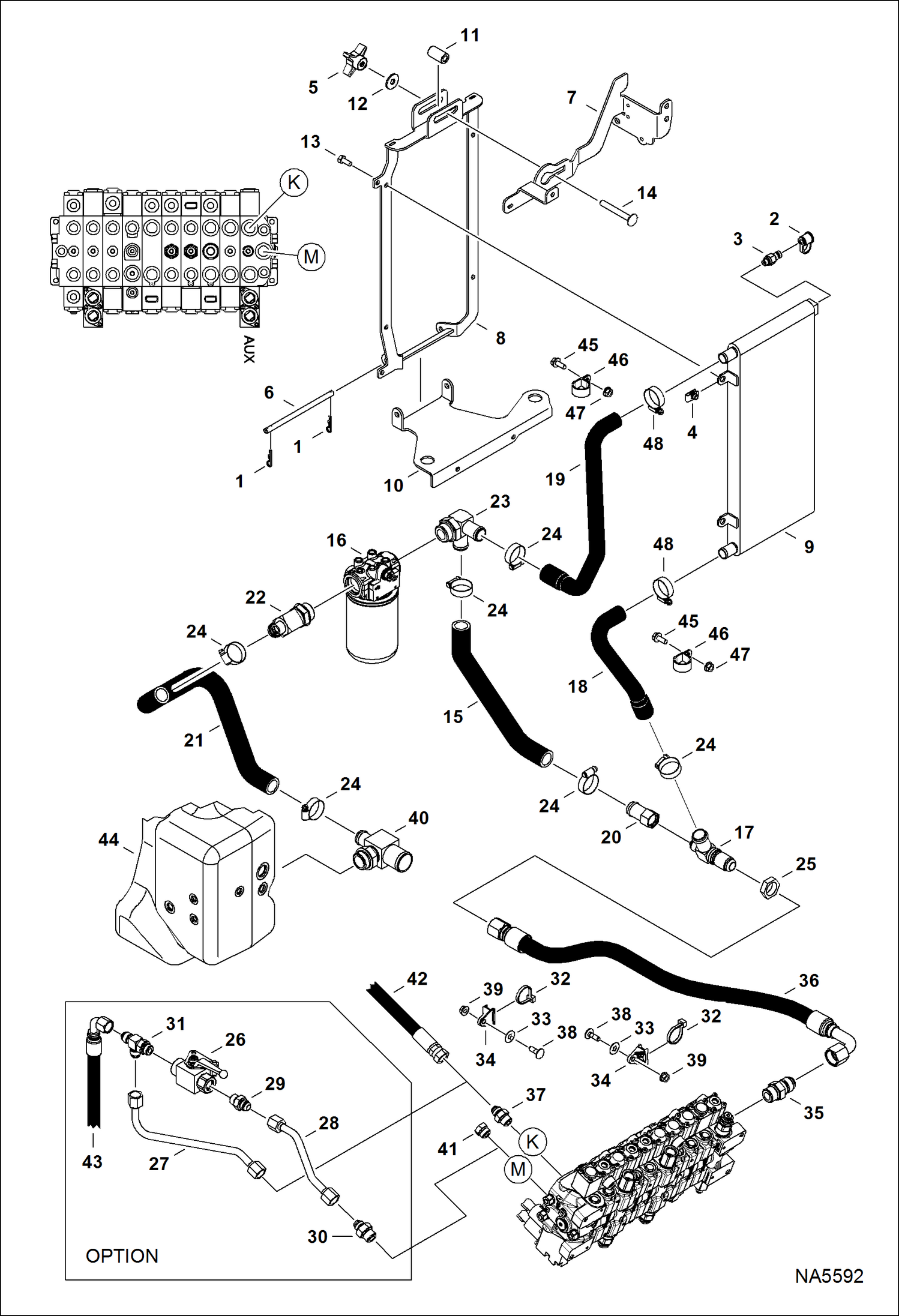

Запчасти Bobcat E25 HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC SYSTEM

1

1306637

CLIP

2

6630367

CAP

3

6658103

COUPLER

4

6676169

NUT

5

7167576

NUT, WING

6

7174835

PIN

7

7189004

MOUNT, RADIATOR

8

7190947

MOUNT

9

7193014

EXCHANGER, OIL COOLER

10

7194800

MOUNT, RADIATOR

11

7204016

SPACER

12

17EM100

WASHER

13

1CM820

BOLT

14

33CM1080

BOLT

15

7211827

HOSE, HYD FORMED

16

7188836

FILTER, OIL HYD ASSY See Illustration HYDRAULIC OIL FILTER/ NA6101

17

7188877

FITTING, HYD CONNECTOR

18

7211825

HOSE, HYD FORMED

19

7211826

HOSE, HYD FORMED

20

7189205

VALVE, BUILDUP

21

7191285

HOSE, HYD FORMED

22

7193576

FITTING

22

79K16

O RING 10

23

7193577

FITTING, HYD TEE

23

79K16

O RING 10

24

42HL150

CLAMP, HOSE

25

86F8

NUT 5

26

6693507

VALVE, BALL See Illustration SELECTOR VALVE ASSY/ NA2306

27

7189256

TUBELINE, HYD

28

7189258

TUBELINE, HYD

29

15KB0808

FITTING, HYD CONNECTOR

29

79K8

O RING 10

30

15KB0808

FITTING, HYD CONNECTOR

30

79K8

O RING 10

31

21KB0808

FTG HYD STRAIGHT TEE

31

79K8

O RING 10

32

6624289

STRAP, TIE

33

6675859

RETAINER

34

6678818

MOUNT

35

7191419

FITTING, HYD CONNECTOR

35

79K20

O RING 10

36

7202292

HOSE, HYD

37

15KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

33CM825

BOLT

39

43DM8

NUT

40

7191282

FITTING, HYD TEE

40

79K16

O RING 10

41

24K6

FITTING

41

79K8

O RING 10

42

HOSE, HYD See Illustration HYDRAULIC CIRCUITRY/ NA5590

43

HOSE, HYD See Illustration HYDRAULIC CIRCUITRY/ NA5590

44

TANK, HYD See Illustration HYDRAULIC CIRCUITRY/ NA6848

45

29CM820

SCREW

46

30H57

CLAMP

47

51DM8

NUT

48

7225831

CLAMP, HOSE
