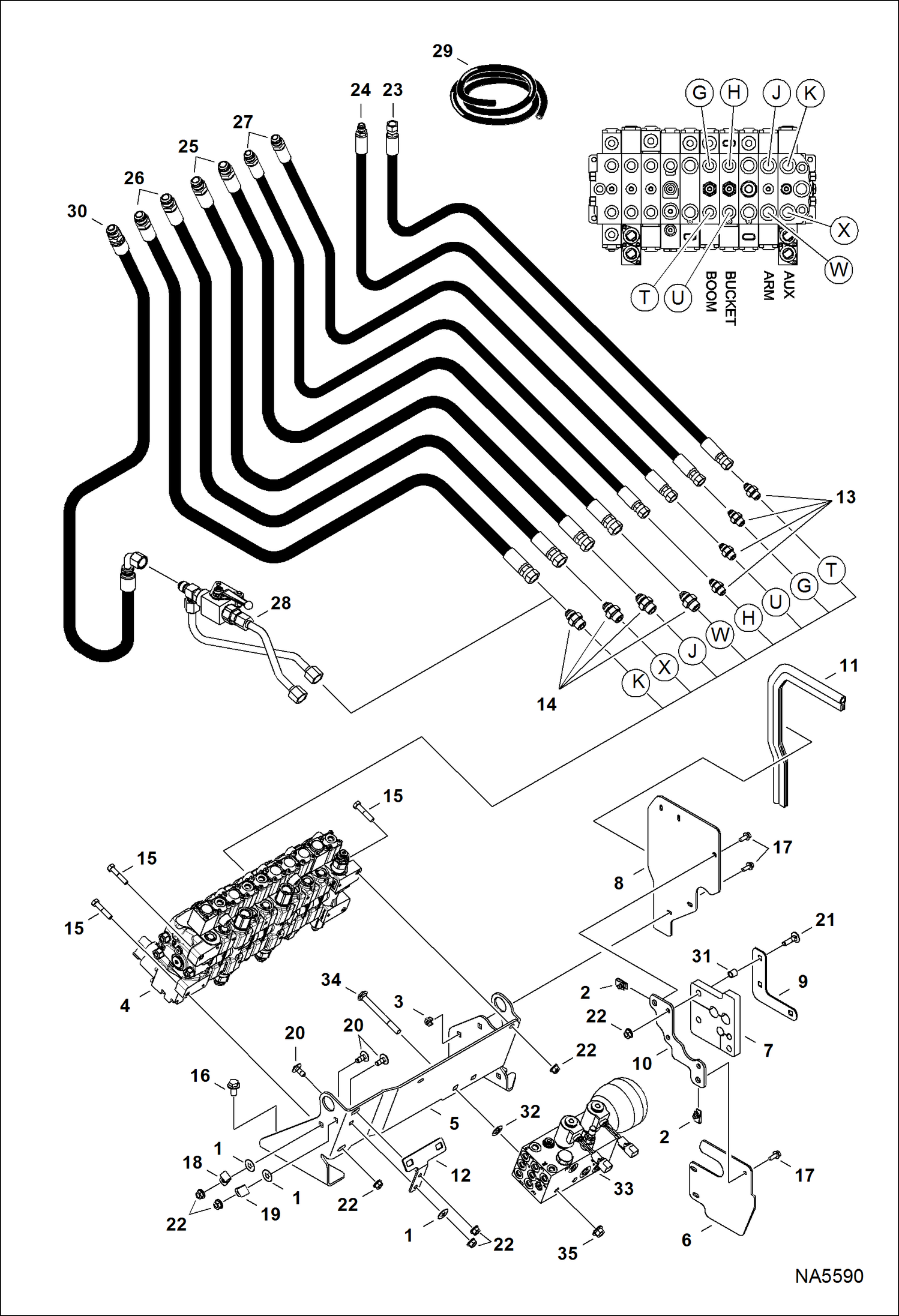

Запчасти Bobcat E25 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve Mounting) HYDRAULIC SYSTEM

1

6675859

RETAINER

2

6676026

NUT

3

7170765

NUT

4

7188867

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6140

5

7188870

MOUNT, VALVE

6

7188871

COVER

7

7188872

SEAL, HOSE W/Ref. 31

8

7188873

COVER

9

7188874

BRACKET

10

7188875

BRACKET

11

SEAL, COVER NLA - 460 mm (18.11'') long - Order Ref. 29

12

7192355

HOLDER

13

15KB0606

FITTING, HYD CONNECTOR

13

79K6

O RING 10

14

15KB0808

FITTING, HYD CONNECTOR

14

79K8

O RING 10

15

1CM840

BOLT

16

29CM1020

BOLT

17

29CM616

BOLT

18

30H22

CLIP

19

30H30

CLAMP

20

28CM816

BOLT

21

33CM830

BOLT

22

43DM8

NUT

23

7160289

HOSE, HYD from valve boom A to boom cyl rod port

24

7160291

HOSE, HYD from valve boom B to boom cyl base port

25

7160294

HOSE, HYD from valve arm A to arm cyl rod port & from valve arm B to arm cyl base port

26

7160712

HOSE, HYD from valve aux A to female aux port

27

7195206

HOSE, HYD from valve bucket A to bucket cyl rod port & from valve bucket B to bucket cyl base port

28

7134803

SEAL, BULK bulk - sold per foot

29

7204137

HOSE, HYD

30

BUSHING NSS - Order Ref. 7

31

6674264

RETAINER NUT

32

7204476

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA6098

33

28CM10100

BOLT

34

43DM10

NUT
