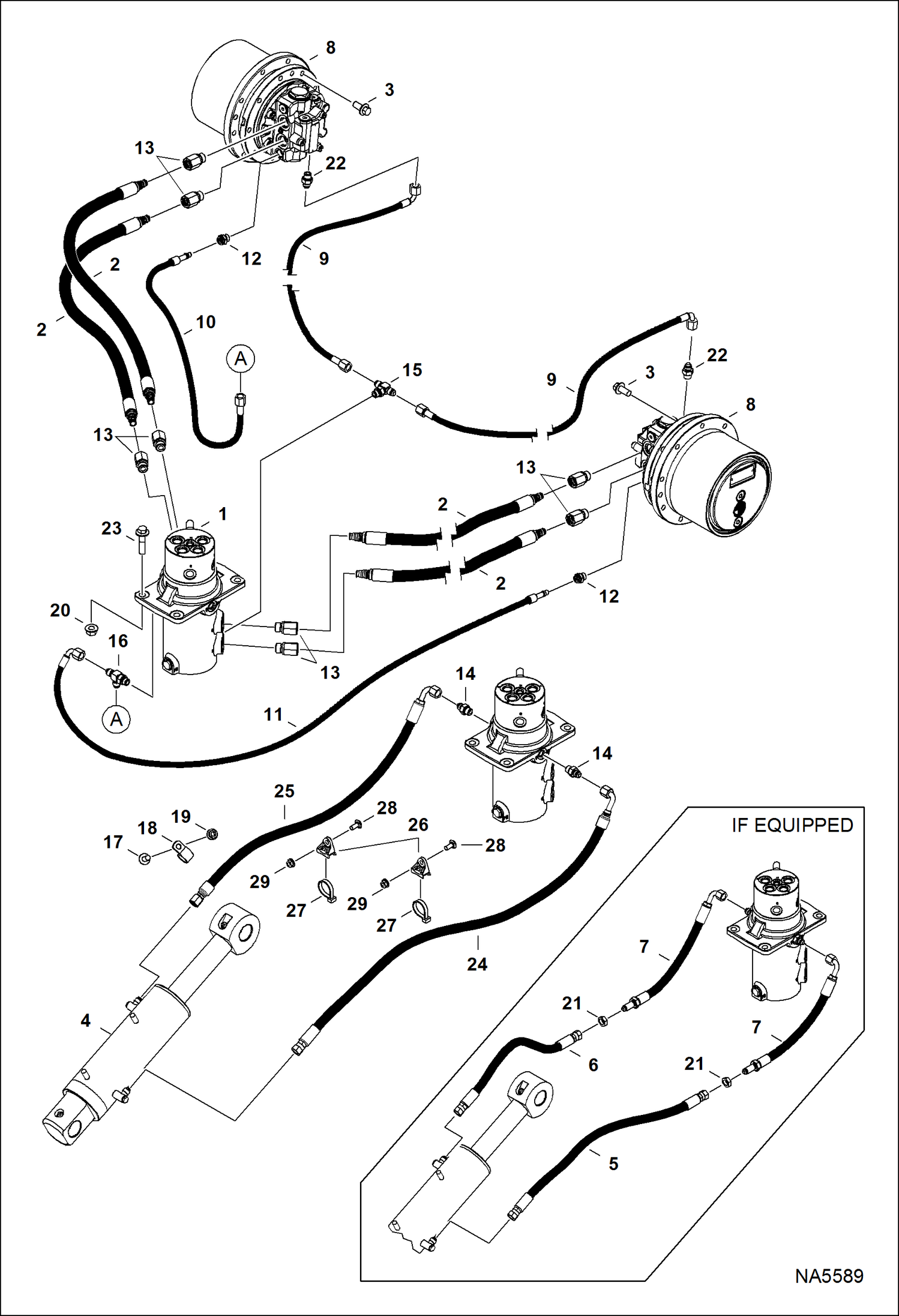

Запчасти Bobcat E25 HYDRAULIC CIRCUITRY (Lower) HYDRAULIC SYSTEM

1

7143734

SWIVEL, HYD ASSY See Illustration SWIVEL ASSY/ NA2262

2

7212834

HOSE, HYD Also Order Ref. 13

3

7162236

SCREW

4

7164575

CYLINDER, BLADE See Illustration HYDRAULIC CONTROL VALVE/ NA6140

5

7165840

HOSE, HYD

6

7165841

HOSE, HYD

7

7165842

HOSE, HYD

8

7190517

MOTOR, DRIVE HYD TRAVEL See Illustration TRAVEL MOTOR/ NA6099

9

7196735

HOSE, HYD

10

7215319

HOSE, HYD

11

7223878

HOSE, HYD

12

10L0606

FITTING, HYD CONNECTOR

12

78K6

O'RING

12

7011053

CLIP

13

15HB0808

FITTING Also Order hose

13

78K8

O RING

14

15KB0606

FITTING, HYD CONNECTOR

14

79K6

O RING 10

15

19KB0606

TEE

15

79K6

O RING 10

16

21KB0606

FTG HYD STRAIGHT TEE

16

79K6

O RING 10

17

29CM1025

BOLT

18

30H46

CLIP

19

43DM10

NUT

20

51DM12

NUT

21

86F5

NUT

22

FITTING See Illustration TRAVEL MOTOR/ NA6099

23

29CM1250

BOLT
