Запчасти Bobcat E25 CONTROL CONSOLE (RH) CONTROLS

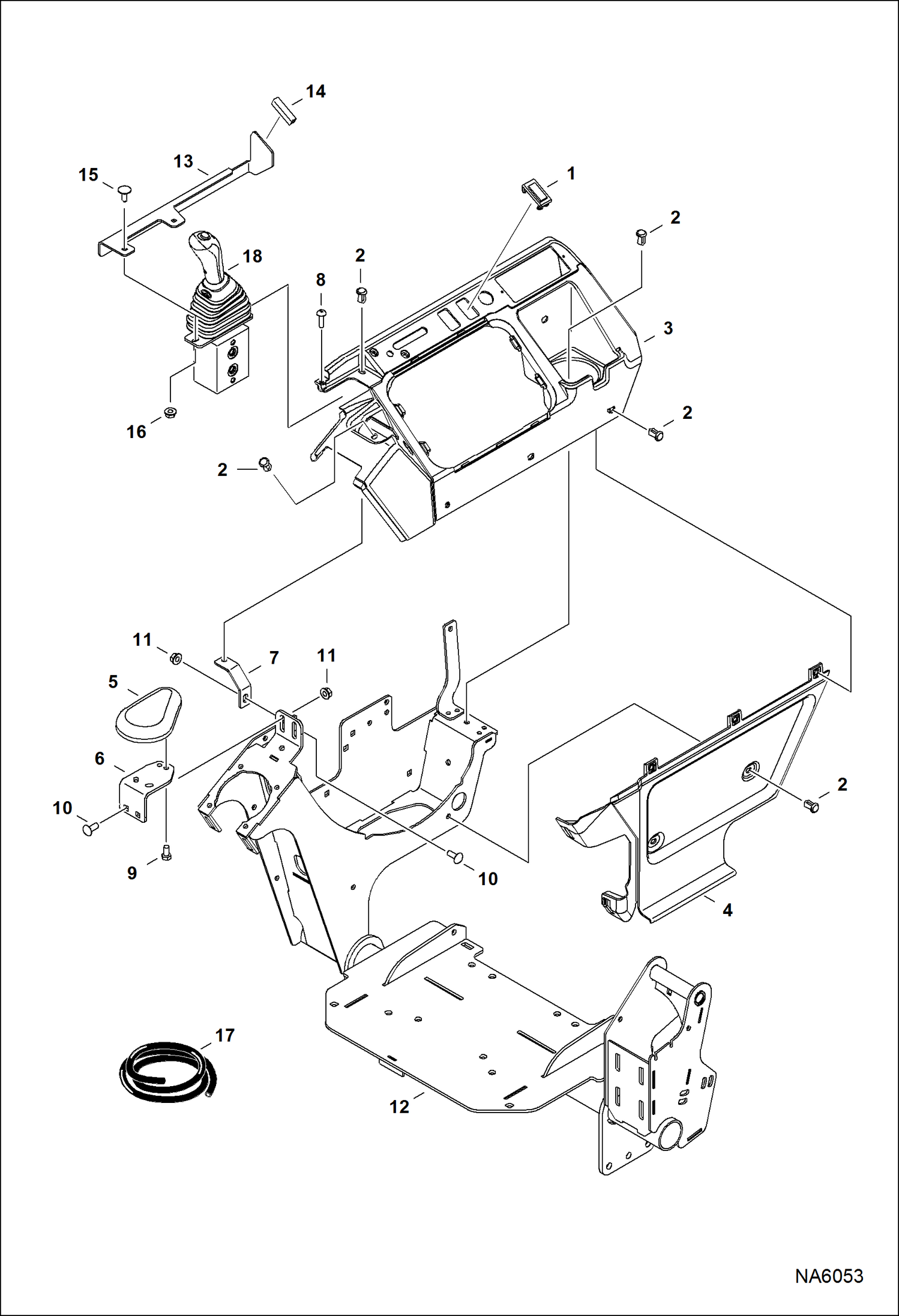

Схема запчастей Bobcat E25 - CONTROL CONSOLE (RH) CONTROLS

Артикул

Название

Примечание

Количество

1

6665314

PLUG

2

7160383

RIVET, BIRD CAGE

3

7187363

COVER, RH

4

7168965

COVER, RH

5

7169719

SUPPORT

6

7169720

MOUNT, ARMREST

7

7174826

BRACKET

8

7177015

SCREW

9

1CM612

BOLT

10

28CM820

BOLT

11

51DM8

NUT

12

CONTROLLER, JOYSTICK ASSY See Illustration CONTROL CONSOLE/ NA6054

13

7181142

BRACKET, SUPPORT

14

TRIM NLA - 43,8 mm (1.75'') long - Order Ref. 17

15

21CM616

SCREW

16

51DM6

NUT

17

6682492

TRIM bulk - sold per foot

18

JOYSTICK, BLADE See Illustration BLADE JOYSTICK/ NA6759

Выбрано товаров: 18
