Запчасти Bobcat E25 CONTROL CONSOLE (LH) CONTROLS

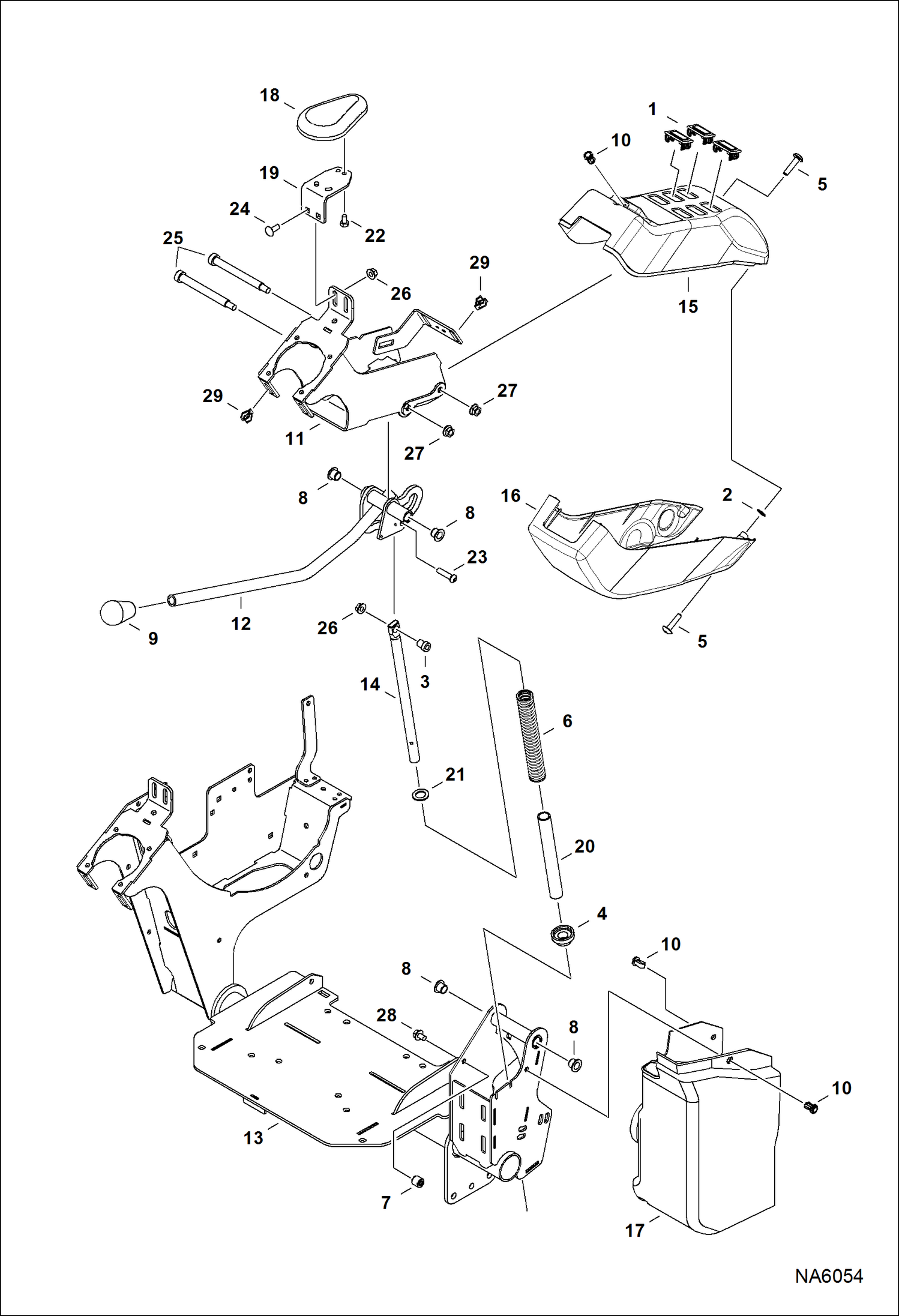

Схема запчастей Bobcat E25 - CONTROL CONSOLE (LH) CONTROLS

Артикул

Название

Примечание

Количество

1

6665314

PLUG

2

6675212

RETAINER

3

6808749

BUSHING

4

6810456

BUSHING

5

6816193

SCREW

6

7003497

SPRING, COMPRESSION

7

7003498

BEARING, ROLLER

8

7003499

BUSHING

9

7154041

KNOB

10

7160383

RIVET, BIRD CAGE

11

7164042

CONSOLE, JOYSTICK

12

7199664

HANDLE, OPERATING

13

7199673

CONTROLLER, JOYSTICK ASSY

14

7165097

SHAFT

15

7165562

COVER, LH

16

7165563

COVER, LH

17

7165564

COVER, LH

18

7169719

SUPPORT

19

7169720

MOUNT, ARMREST

20

7171264

SPACER, TUBE

21

15EM160

WASHERS

22

1CM612

BOLT

23

27CM835

SCREW

24

28CM820

BOLT

25

38C868

SCREW

26

51DM8

NUT

27

53D6

NUT

28

59CM812

SCREW HX FLNG W/T8.8

29

7165333

CLIP

Выбрано товаров: 29
