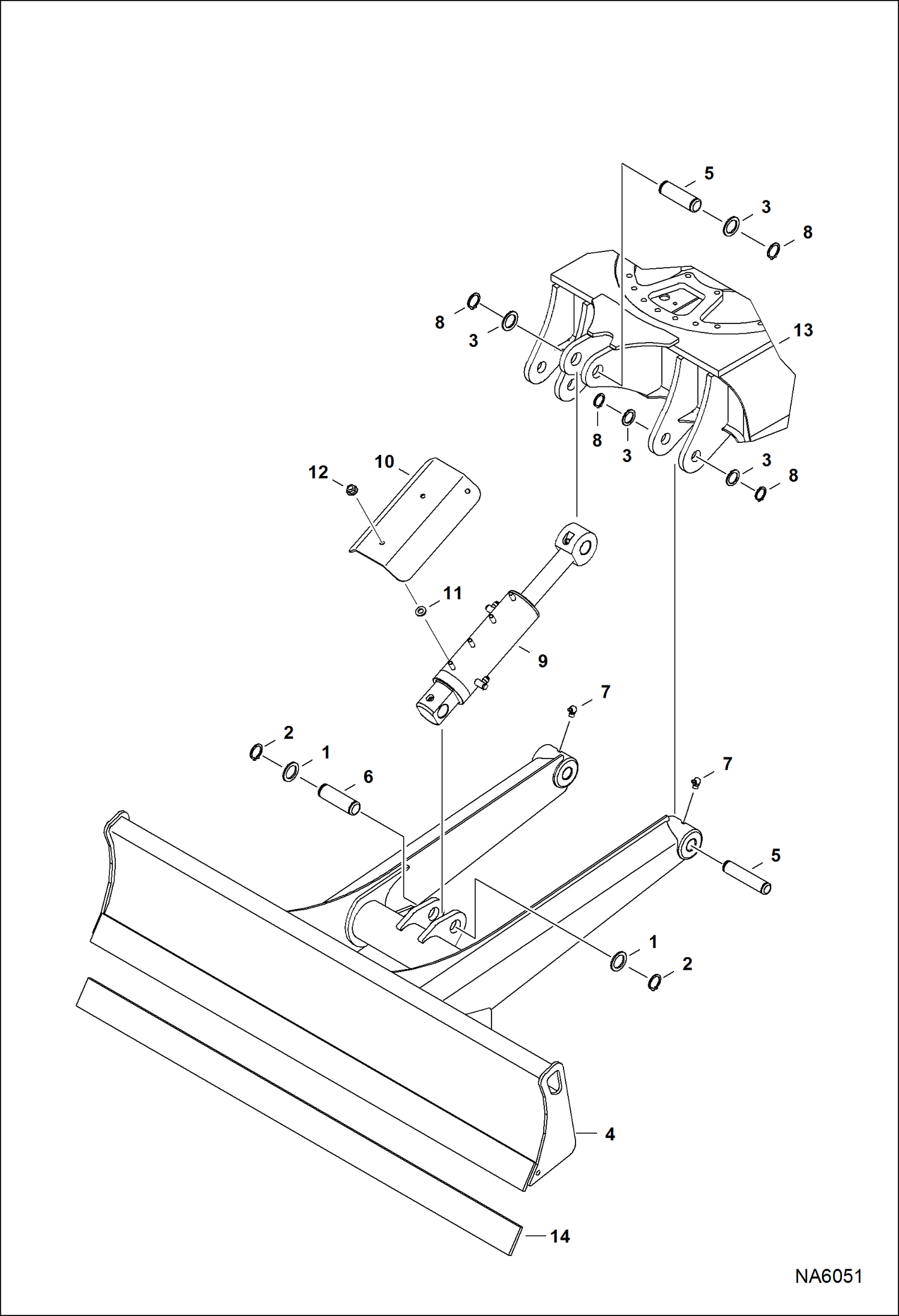

Запчасти Bobcat E25 BLADE WORK EQUIPMENT

1

6534111

WASHER

2

6534154

RING

3

6589699

WASHER

4

BLADE, EXC NLA - Order 7234885 Blade, Exc & 7233205 Edge, Cutting, Weld-On 55'' - Was 7185860 - A

4

7234885

BLADE, EXC Use W/Ref. 14 (7192083 Edge, Cutting, Weld-On 55'')

5

7191708

PIN, PIVOT

6

7191709

PIN, PIVOT

7

12H15

FITTING, GREASE 5

8

22J19

SNAP RING

9

CYLINDER, BLADE See Illustration BLADE CYLINDER/ NA6018

10

7177952

SHIELD, CYL

11

1EM100

WASHER

12

43DM10

NUT

13

UNDERCARRIAGE See Illustration UNDERCARRIAGE/ NA6817

14

EDGE, CUTTING WELD-ON 55'' NLA - Order 7233205 Edge, Cutting, Weld-On 55'' & 7234885 Blade, Exc - Was 7192083 - A

14

7233205

EDGE, CUTTING WELD-ON 55'' Use W/Ref. 4 (7234885 Blade, Exc.)
