Запчасти Bobcat E25 BOOM WORK EQUIPMENT

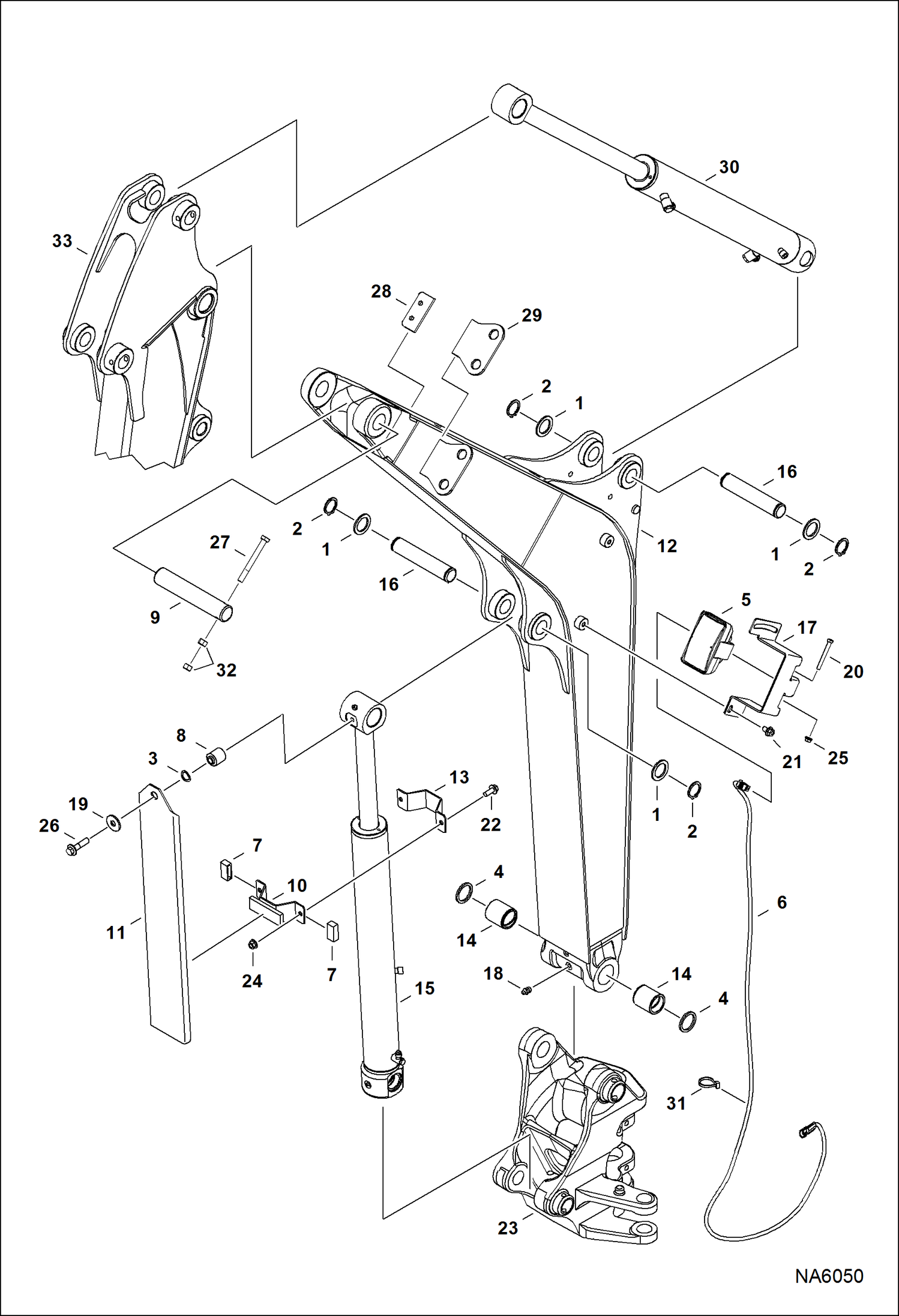

Схема запчастей Bobcat E25 - BOOM WORK EQUIPMENT

Артикул

Название

Примечание

Количество

1

6534111

WASHER

2

6534154

RING

3

6536803

WASHER

4

6660075

SEAL

5

7018038

LIGHT

5

6692400

BULB

6

7135895

HARNESS

7

7144089

COVER

8

7154460

SPACER

9

7154697

PIN

10

7158551

SHIELD

11

7158554

SHIELD, CYL

12

7162323

BOOM, ARM DIPPER Also Order Ref. 4, 14 & 18

13

7162368

SHIELD

14

7164261

BUSHING, WEAR

15

CYLINDER, BOOM See Illustration BOOM CYLINDER/ NA6019

16

7183687

PIN

17

7237068

BRACKET Was 7195369 - A

18

10H25

FITTING, GREASE 5

19

17EM120

WASHER

20

1CM655

SCREW

21

29CM1016

BOLT

22

29CM1025

BOLT

23

BOOM SWING FRAME See Illustration BOOM SWING FRAME/ NA6052

24

51DM10

NUT

25

51DM6

NUT

26

29CM1235

BOLT Was 29CM01235B - A

27

7CM12110

BOLT

28

7207340

BRACKET weld-on

29

7207339

BRACKET weld-on

30

CYLINDER, ARM See Illustration ARM CYLINDER/ NA6017

31

6624289

STRAP, TIE

32

4DM12

NUT HEX

33

ARM See Illustration ARM/ NA6350

Выбрано товаров: 34
