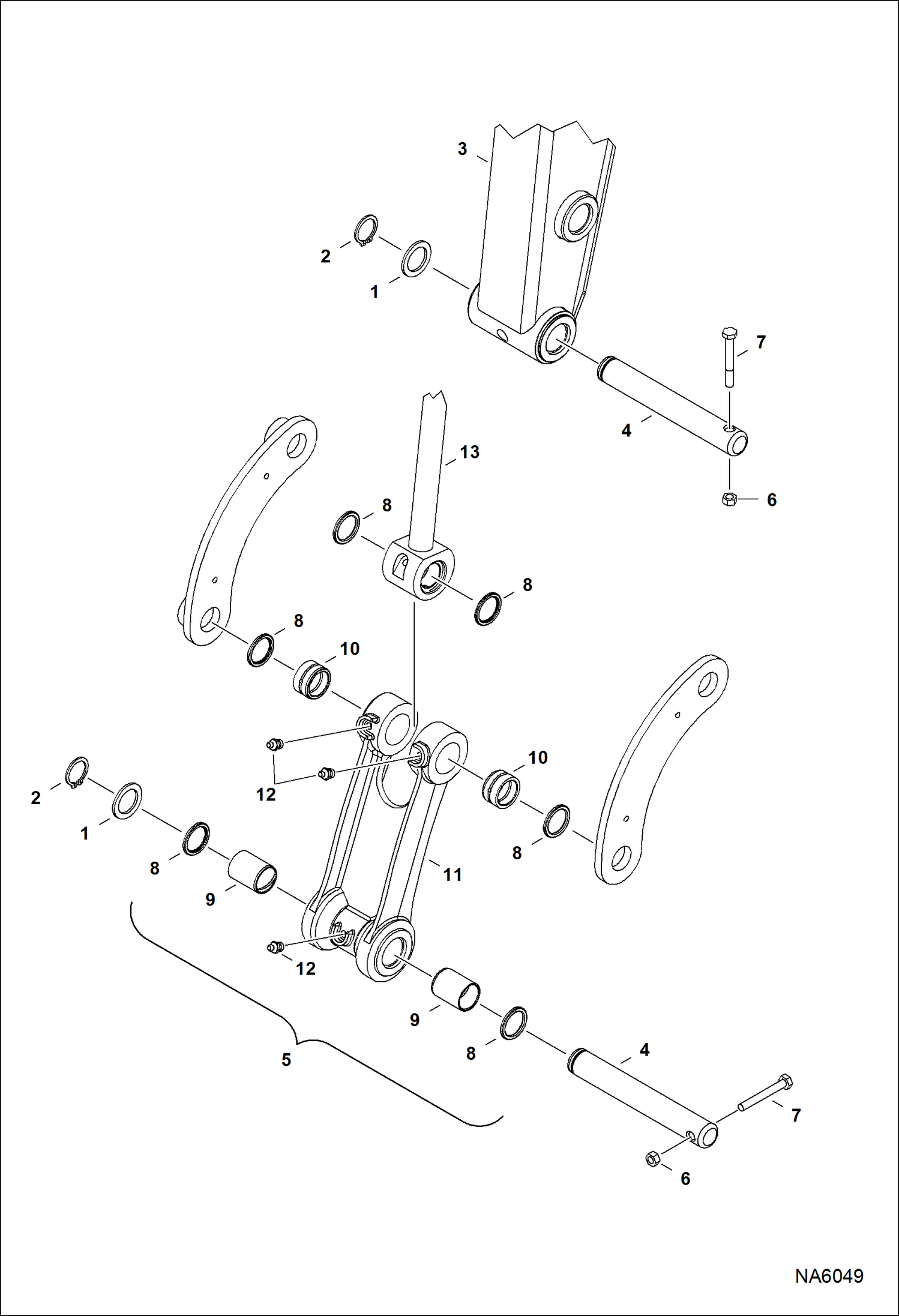

Запчасти Bobcat E25 BUCKET LINK WORK EQUIPMENT

1

6534111

WASHER

2

6534154

RING

3

ARM See Illustration ARM/ NA6350

4

7181216

PIN, PIVOT X-CHANGE

5

7196521

LINK, ASSY

6

4DM10

NUT

7

7CM1080

BOLT

8

6652915

SEAL, OIL

9

6803213

BUSHING, PRESS FIT

10

6803309

BUSHING, PRESS FIT

11

LINK NLA - Order Ref. 5

12

10H25

FITTING, GREASE 5

13

CYLINDER, BUCKET See Illustration ARM/ NA6350
