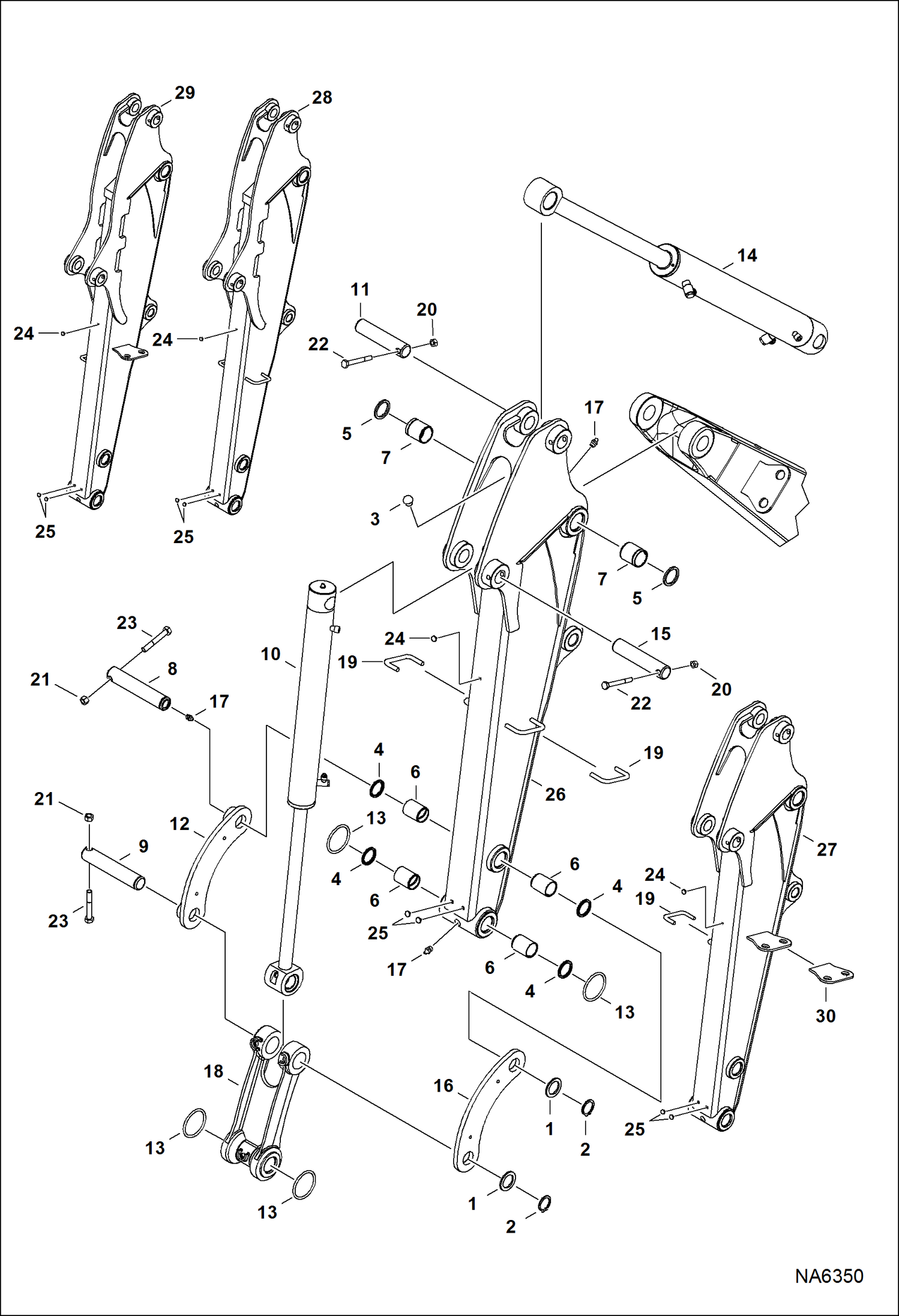

Запчасти Bobcat E25 ARM WORK EQUIPMENT

1

6534111

WASHER

2

6534154

RING

3

6597572

BUMPER

4

6652915

SEAL, OIL

5

6660075

SEAL

6

6803213

BUSHING, PRESS FIT

7

6815277

BUSHING

8

7157649

PIN

9

7157650

PIN

10

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ NA6021

11

7159418

PIN

12

7159419

LINK, ASSY

13

7159425

O-RING

14

CYLINDER, ARM See Illustration ARM CYLINDER/ NA6017

15

7188793

PIN

16

7192877

LINK

17

10H25

FITTING, GREASE 5

18

LINK, ASSY See Illustration BUCKET LINK/ NA6049

19

6586391

GUIDE weld-on

20

4DM10

NUT

21

4DM12

NUT HEX

22

7CM1090

BOLT, HEX SOCKET

23

7CM1280

BOLT

24

7206877

ARM, DIPPER W/A EXC W/O arm mounted aux coupler option Ref. 28 - Also Order Ref. 3-7, 13, & 17

25

7212223

ARM, DIPPER W/A W/ arm mounted aux coupler option Ref. 28 - Also Order Ref. 3-7, 13, & 17

26

7206870

ARM, DIPPER W/A LONG EXC W/O arm mounted aux coupler option Ref. 28 - Also Order Ref. 3-7, 13, & 17

27

7212763

ARM, DIPPER W/A LONG W/ arm mounted aux coupler option Ref. 28 - Also Order Ref. 3-7, 13, & 17

28

7207339

BRACKET weld-on - arm mounted aux coupler option
