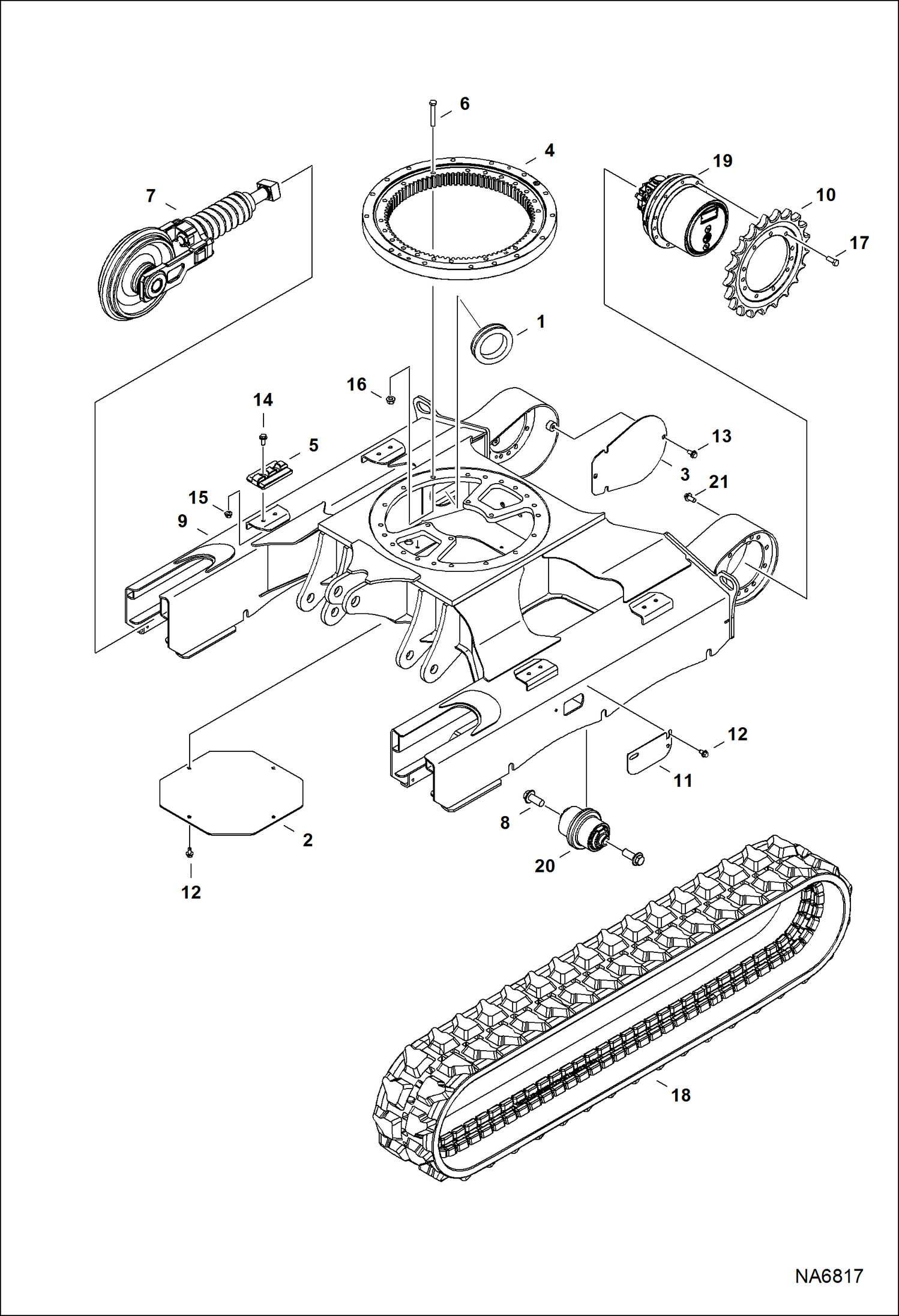

Запчасти Bobcat E25 UNDERCARRIAGE UNDERCARRIAGE

1

7127210

GROMMET

2

7142236

COVER, ACCESS

3

7142237

COVER, MOTOR

4

7153297

RING, SLEW See Illustration UPPERSTRUCTURE/ NA6026

5

7228214

PLATE, SLIDE, FINAL

6

7161099

BOLT

7

7205956

IDLER, ASSY See Illustration TRACK TENSIONER & IDLER/ NA6066

8

7011925

BOLT

9

7212750

UNDERCARRIAGE

10

7199006

SPROCKET, MACHINED

11

7201929

COVER

12

26GM10020

BOLT

13

29CM1020

BOLT

14

29CM1025

BOLT

15

51DM10

NUT

16

51DM12

NUT

17

55CM1230

SCREW

18

7153296

TRACK, RUBBER

19

MOTOR, TRAVEL See Illustration TRAVEL MOTOR/ NA6099

21

ROLLER, TRACK See Illustration TRACK ROLLER/ NA2024 W/(2) Ref. 8

23

7162236

SCREW
