Запчасти Bobcat E25 REAR DOOR MAIN FRAME

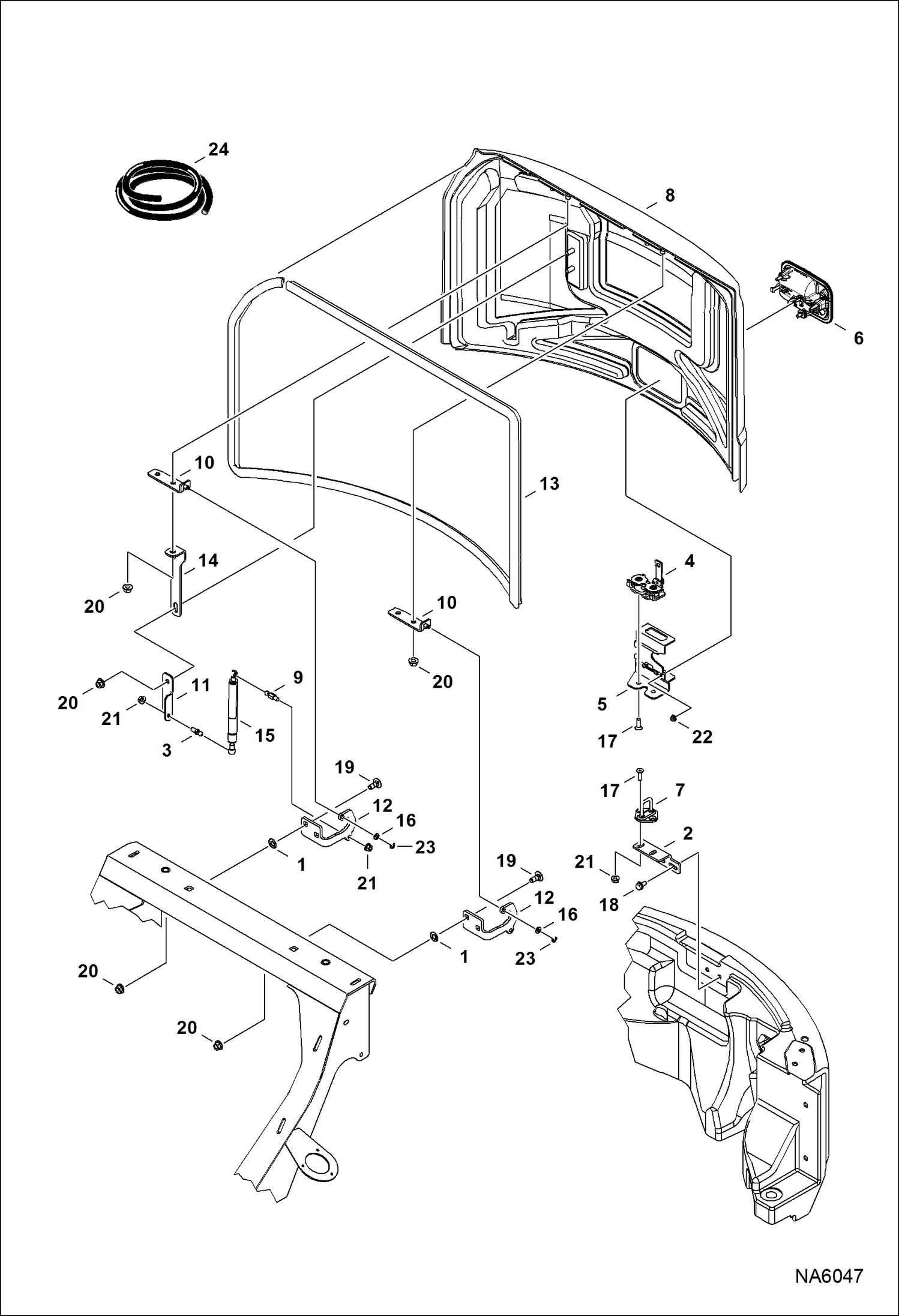

Схема запчастей Bobcat E25 - REAR DOOR MAIN FRAME

Артикул

Название

Примечание

Количество

1

6674264

RETAINER NUT

2

7166867

BRACKET

3

7170322

STUD, BALL JOINT

4

7170871

LATCH, DOOR REAR

5

7170872

BRACKET, LATCH

6

7170873

LATCH, HANDLE

7

7170944

STRIKER, LATCH DOOR

8

7173084

REAR DOOR

9

7177735

STUD, BALL JOINT

10

7196490

HINGE, DOOR REAR

11

7196591

PLATE, HOLDER

12

7197772

HINGE, DOOR REAR

13

SEAL, COVER NLA - 2784 mm (109.6'') long - Order Ref. 24

14

7201816

BRACE

15

7202414

GAS SPRING

16

15EM80

WASHER

17

23GM825

SCREW

18

29CM816

SCREW

19

33CM1025

BOLT

20

43DM10

NUT

21

43DM8

NUT

22

51DM6

NUT

23

9JM60

PIN, RETAINER

24

7160901

SEAL, BULB bulk - sold per foot

Выбрано товаров: 24
