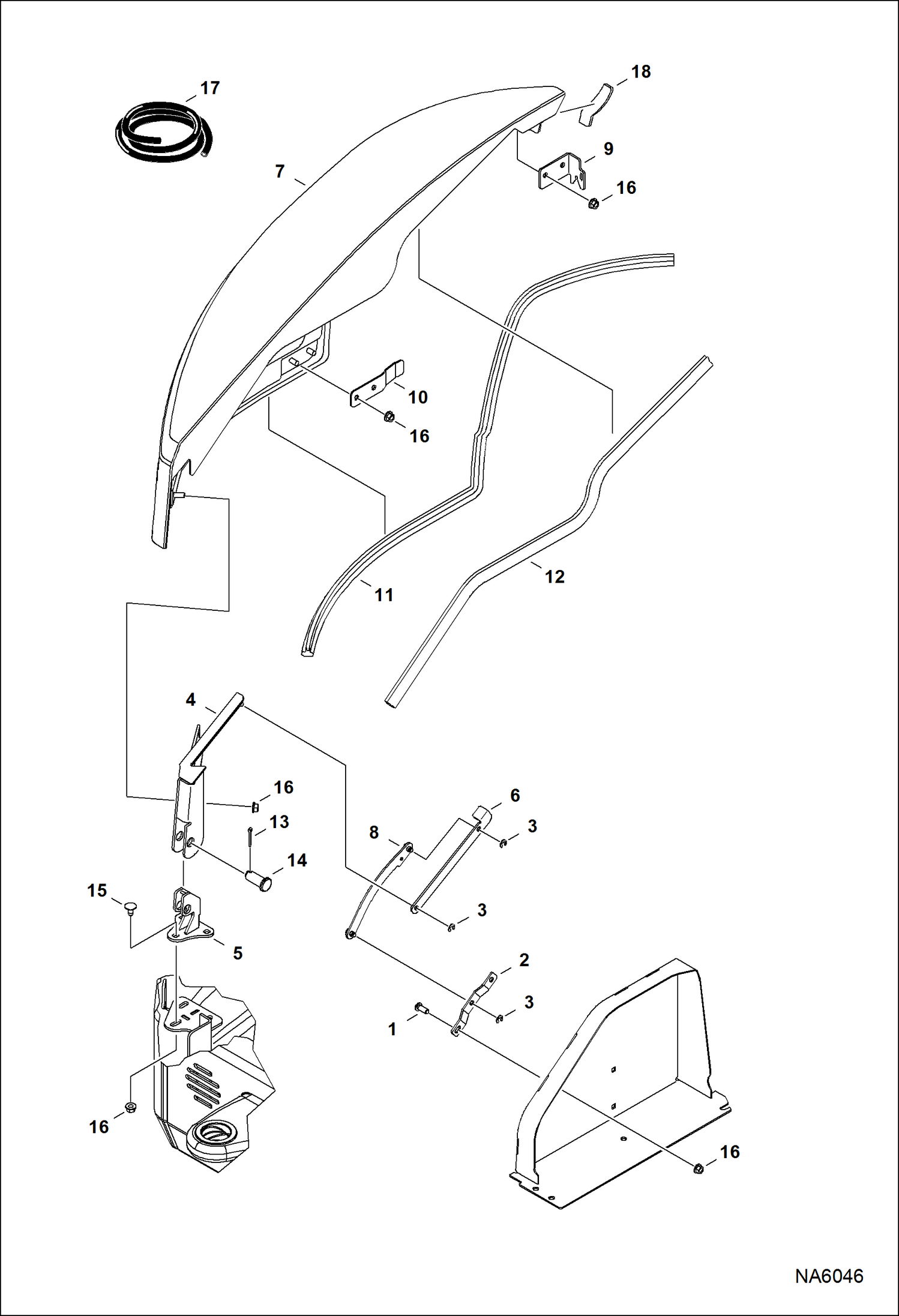

Запчасти Bobcat E25 RH COVER MAIN FRAME

1

6817769

BOLT

2

7165414

BRACKET

3

7170446

PIN, RETAINER

4

7173069

HINGE, COVER

5

7173070

HINGE

6

7173078

LINK

7

7177852

COVER, RH

8

7192417

LINK, ASSY

9

7196072

BRACKET, COVER

10

7194969

BRACKET

11

SEAL, COVER NLA - 1461,3 mm (57.5'') long - Order Ref. 17

12

SEAL, COVER NLA - 1057,7 mm (41.6'') long - Order Ref. 17

13

13JM532

PIN, COTTER

14

14JM2050

CLEVIS

15

33CM1020

BOLT

16

43DM10

NUT

17

7160901

SEAL, BULB bulk - sold per foot

18

7205558

SEAL, COVER
