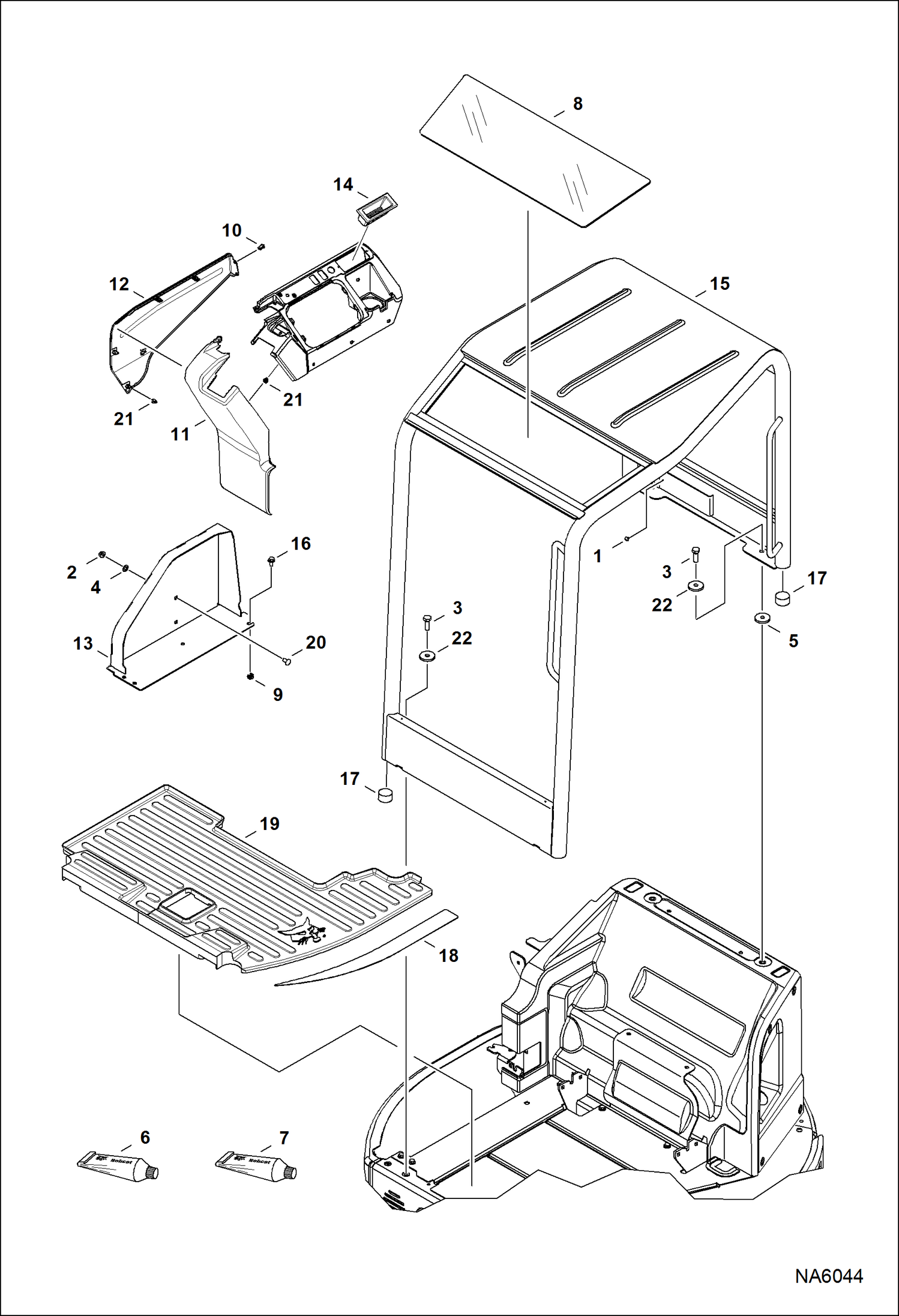

Запчасти Bobcat E25 OPERATOR CANOPY MAIN FRAME

1

6589675

SCREW

2

43DM10

NUT

3

7CM1440

BOLT

4

6674264

RETAINER NUT

5

6805244

WASHER

6

6808882

ADHESIVE, URETHANE

7

7102268

PRIMER

8

7143481

WINDOW, CANOPY TOP

9

7155411

NUT

10

7160383

RIVET, BIRD CAGE

11

7165566

COVER, RH

12

7165567

COVER, RH

13

7170762

PANEL, RH

14

7171397

CONTAINER, STORAGE

15

7173146

CANOPY, W/A

16

29CM1025

BOLT

17

7187736

INSULATION

18

7195050

TREAD, SAFETY

19

7199174

MAT, FLOOR CANOPY

20

28CM1020

BOLT

21

7165333

CLIP

22

7187755

WASHER
