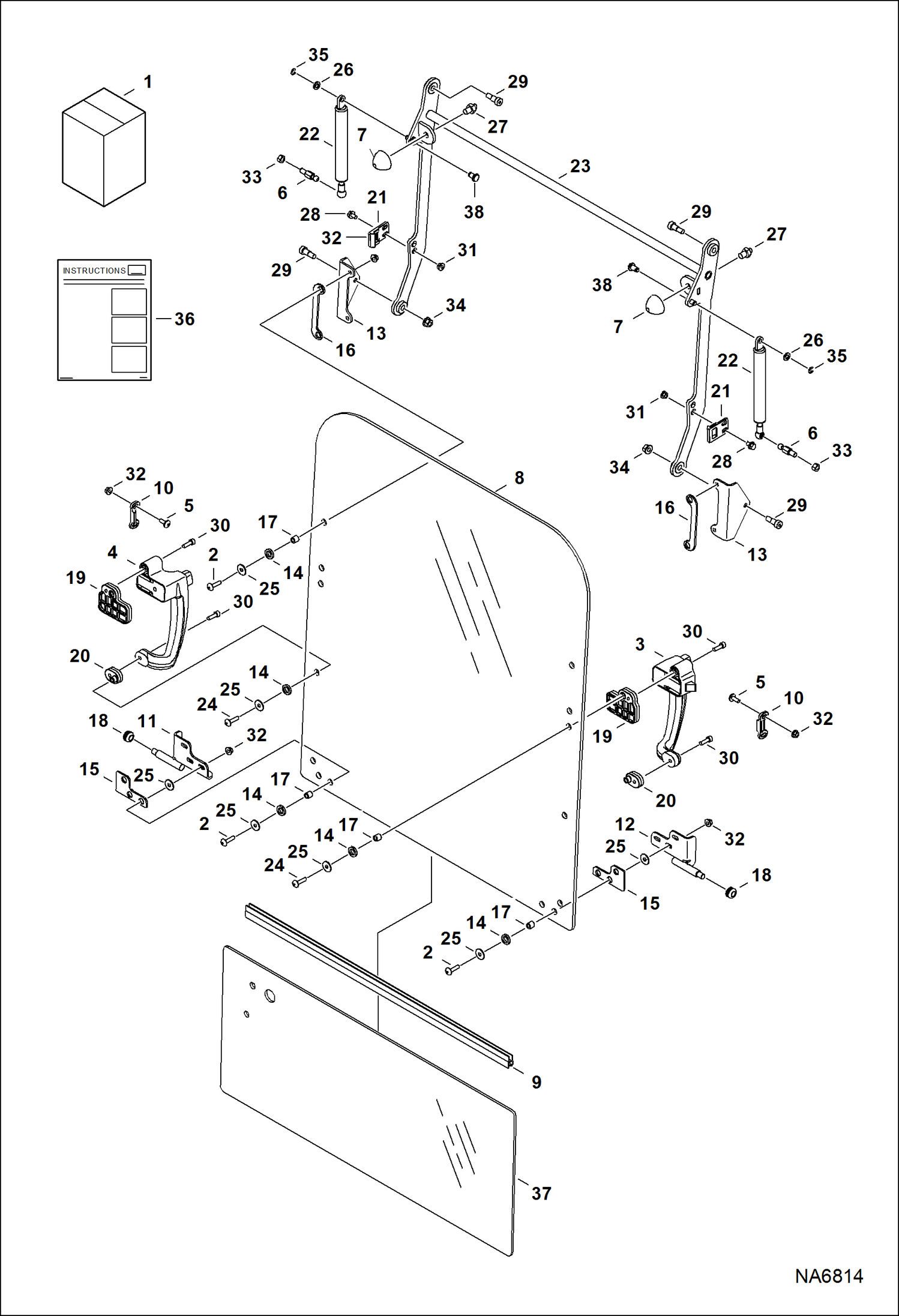

Запчасти Bobcat E25 OPERATOR CAB (Front Window) (Frameless) MAIN FRAME

1

7223423

KIT, WINDOW FRONT W/O LINK Ref. 2-4, 8, 9, 11-20, 24, 25, 30, 32, & 36

1

7223420

KIT, WINDOW FRONT W/ LINK Ref. 2-36

2

6816193

SCREW

3

7023166

LATCH, WINDOW CAB

4

7023167

LATCH, WINDOW CAB

5

7122310

TORX BOLT

6

7177735

STUD, BALL JOINT

7

7178702

BUMPER, RUBBER

8

7209964

WINDOW, CAB FRONT

9

7210015

SEAL, WINDOW

10

7210303

STRIKER, LATCH WINDOW

11

7210694

MOUNT, ROLLER

12

7210696

MOUNT, ROLLER

13

7210795

MOUNT, WINDOW

14

7210811

GASKET, WASHER

15

7210819

GASKET, ROLLER

16

7210822

GASKET, MOUNT

17

7210929

SPACER, BRACKET

18

7212726

ROLLER, WINDOW

19

7213043

SPACER, LATCH UPPER

20

7213044

SPACER, LATCH LOWER

21

7213572

STRIKER, LATCH WINDOW

22

7213698

GAS SPRING

23

7214144

LINK, WINDOW FRONT

24

7215172

SCREW, MACHINE

25

7215175

WASHER, FLAT

26

15EM80

WASHER

27

1CM1012

SCREW

28

29CM610

BOLT

29

38C608

SCREW

30

3GM620

SCREW, MACHINE

31

43DM6

NUT

32

45DM6

NUT 10

33

53DM8

NUT

34

83D5

NUT 5

35

9JM60

PIN, RETAINER

36

6990513

INSTRUCTIONS

37

7179045

WINDOW, CAB LOWER not in kit
