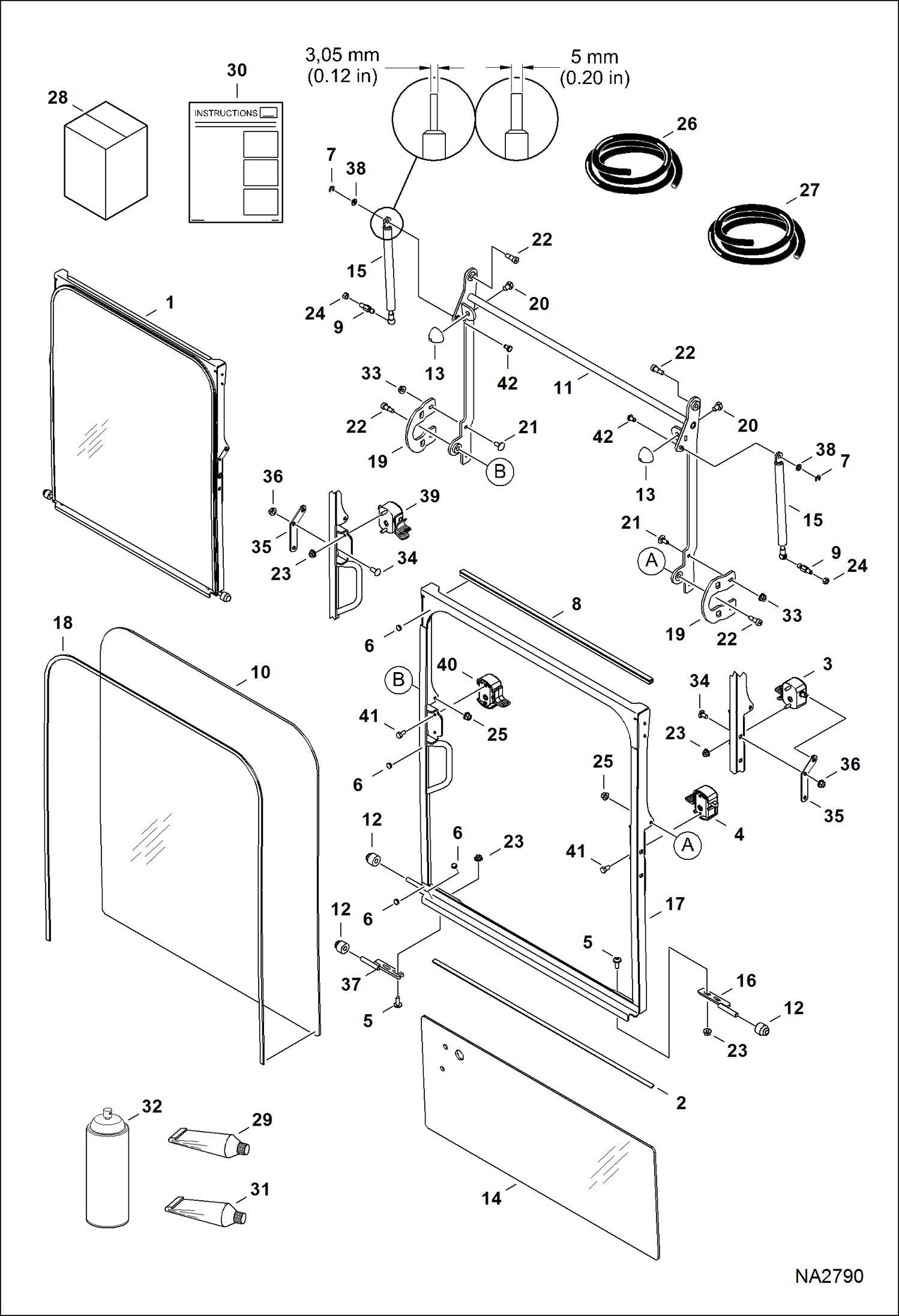

Запчасти Bobcat E25 OPERATOR CAB (Front Window) MAIN FRAME

1

WINDOW, CAB FRONT NLA - Ref. 2-25, & 33-36 - Was 7155916 - A

1

KIT, WINDOW NLA - Order components - Ref. 2, 4-6, 8, 10, 12, 16-18, 23, 25, 40, 43 & 44 - Was 7215893 - A

1

6990363

INSTRUCTIONS

2

SEAL, WINDOW NLA - flat - 711 mm (28'') long - Order Ref. 26

4

7023294

LATCH, LH W/square pin

5

6803202

SCREW

6

7101512

BUMPER

7

9JM60

PIN, RETAINER

8

TRIM, WINDOW NLA - 616 mm (24.2'') long - Order Ref. 27

9

7177735

STUD, BALL JOINT

10

WINDOW, FRONT NLA - Order Ref. 28

11

LINK, WINDOW FRONT See BTI416 NLA - Was 7194753

12

7178689

ROLLER

13

7178702

BUMPER, RUBBER

14

7179045

WINDOW, CAB LOWER

15

7179320

GAS SPRING 3,05 mm (.12'') base end - must use in matching pairs

15

7209896

GAS SPRING 5 mm (.20'') base end - must use in matching pairs

16

MOUNT, ROLLER See BTI416

17

7220029

FRAME, WINDOW FRONT

18

SEAL, WINDOW NLA - 2300 mm (90.5'') long - Order Ref. 26

19

7194706

PLATE, LATCH Use W/Ref. 11

20

1CM1012

SCREW

21

28CM820

BOLT

22

38C608

SCREW

23

51DM6

NUT

24

53DM8

NUT

25

83D5

NUT 5

26

6648416

SEAL BULK /FT bulk - sold per foot

27

6682492

TRIM bulk - sold per foot

28

7185152

KIT, WINDOW *SEE NOTE* Ref. 6, 10, 29, & 30 - Also Order Ref. 31 & 32

29

6808882

ADHESIVE, URETHANE

30

6989489

INSTRUCTIONS

31

7102268

PRIMER

32

7110861

CLEANER

33

51DM8

NUT

34

28CM816

BOLT

35

7192212

BRACKET, LATCH if equipped - Use W/NLA latch W/round pin only

36

51DM8

NUT

37

MOUNT, ROLLER See BTI416

38

15EM80

WASHER if equipped

39

LATCH, RH See BTI416 - W/round pin

40

7023293

LATCH, RH W/square pin

41

1CM612

BOLT Use W/square pin latch
