Запчасти Bobcat E25 OPERATOR CAB (Door) MAIN FRAME

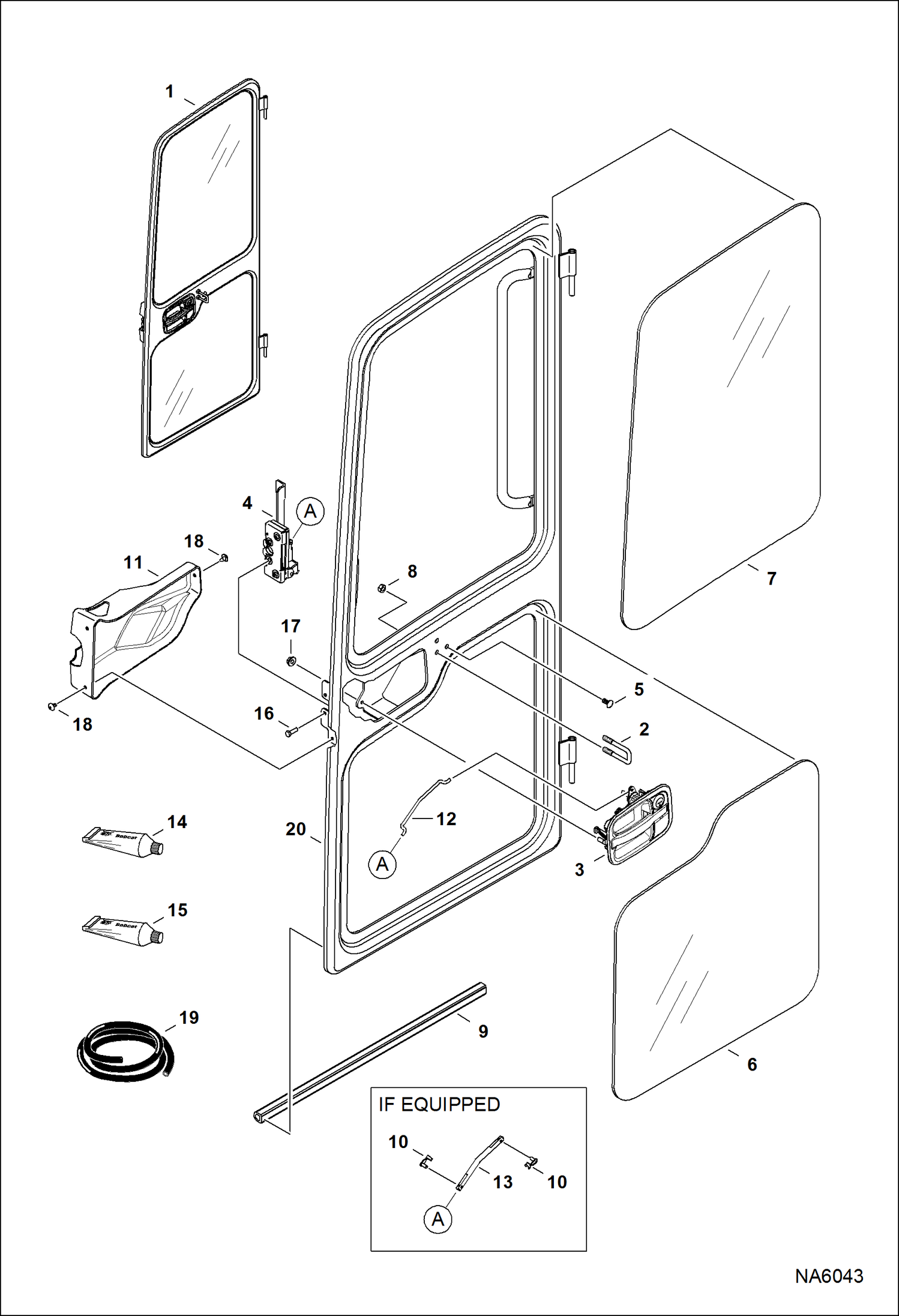

Схема запчастей Bobcat E25 - OPERATOR CAB (Door) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7157151

DOOR, CAB ASSY Ref. 2-20

2

6698504

U-BOLT

3

7008365

HANDLE, DOOR CAB does not include key - Uses ignition key

4

7008366

LATCH, DOOR CAB

5

7012810

PLUG

6

7170289

WINDOW, DOOR CAB LOWER

7

7170290

WINDOW, DOOR CAB UPPER

8

7170874

NUT

9

SEAL, BULB NLA - 574 mm (22.6'') long - Order Ref. 19

10

CLIP, DOOR CAB NLA - Was 7008367 - Order Ref. 12 - A

11

7189891

COVER, LATCH

12

7222013

LINK

13

ROD NLA - Was 7008368 - Order Ref. 12 - A

14

6808882

ADHESIVE, URETHANE

15

7102268

PRIMER

16

1CM620

BOLT

17

51DM6

NUT

18

6589675

SCREW

19

7174361

SEAL, BULK bulk - sold per foot

20

DOOR W/A NLA - Order Ref. 1

Выбрано товаров: 20
