Запчасти Bobcat E25 OPERATOR CAB (Insulation) MAIN FRAME

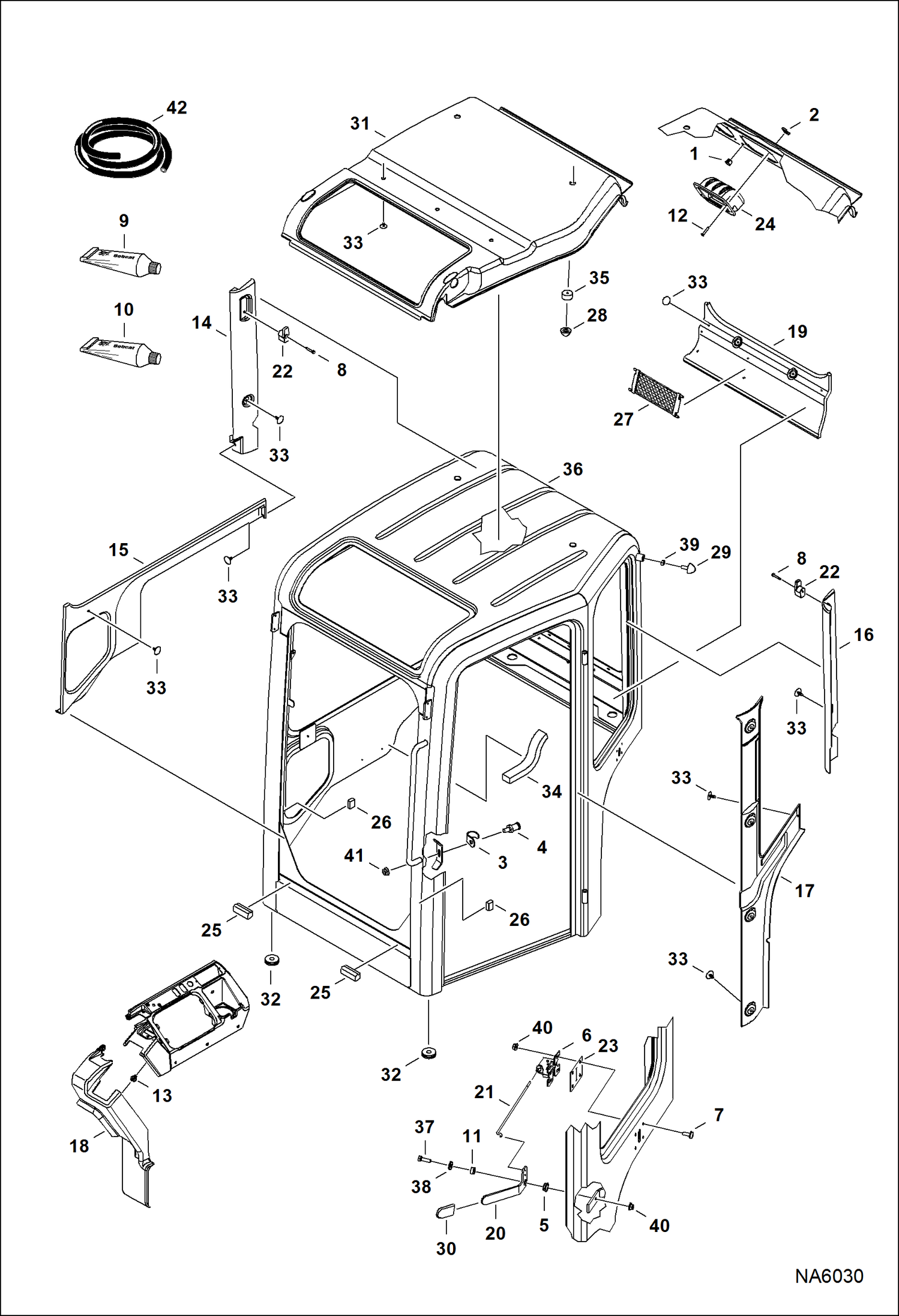

Схема запчастей Bobcat E25 - OPERATOR CAB (Insulation) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6649949

PLUG

2

6685744

CLIP

3

6688999

STRIKER GUARD

4

6689007

STRIKER BOLT

5

6698186

BEARING, CLIP

6

6698503

LATCH, HOLD OPEN

7

6803202

SCREW

8

6808424

SCREW

9

6808882

ADHESIVE, URETHANE

10

7102268

PRIMER

11

7155449

SPACER

12

7163690

SCREW

13

7165333

CLIP

14

7167095

PANEL, RH

15

7167096

PANEL, RH

16

7167097

PANEL, LH

17

7167098

PANEL, LH

18

7168404

COVER, RH

19

7169993

PANEL, REAR

20

7170488

LEVER

21

7170489

LINK

22

7170632

HOOK, COAT

23

7170799

SEAL, LATCH

24

7173287

HOLDER

25

7174507

MOUNT, WINDOW

26

SEAL NLA - 25,4 mm (1'') long - Order Ref. 42

27

7176501

HOLDER, MANUAL

28

7178702

BUMPER, RUBBER

29

7178703

BUMPER, RUBBER

30

7178708

COVER, HANDLE

31

7179100

HEADLINER Use W/7166629 & 7171741

31

7232300

HEADLINER Use W/7229539 & 7232548

32

6682697

GROMMET

33

7182464

CLIP

34

7182732

INSULATION

35

7182957

SPACER

36

7187718

CAB, W/A Also Order 7223420 frameless window kit if replacing cab W/framed window

37

1CM620

BOLT

38

25E13

WASHER 5

39

4DM10

NUT

40

51DM6

NUT

41

55D7

NUT

42

7174508

SEAL, BULK/FT bulk - sold per foot

Выбрано товаров: 43
