Запчасти Bobcat E25 OPERATOR CAB (Mounting, Front Windows, & Door) MAIN FRAME

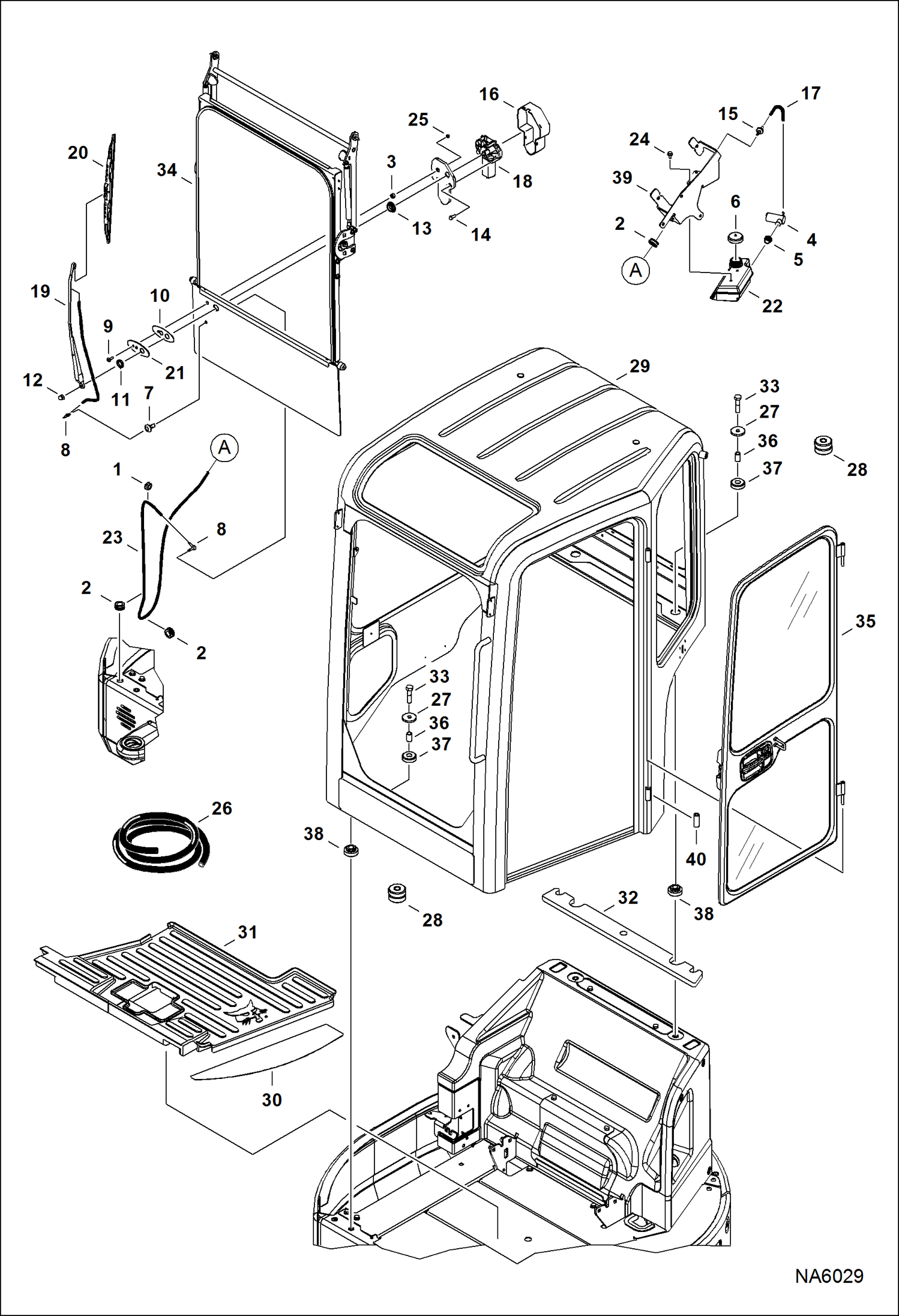

Схема запчастей Bobcat E25 - OPERATOR CAB (Mounting, Front Windows, & Door) MAIN FRAME

Артикул

Название

Примечание

Количество

1

515069

GROMMET

2

6587887

GROMMET

3

6664085

BUSHING

4

6664554

PUMP, WIPER WASHER

5

6666766

GROMMET

6

6674993

CAP

7

6676499

GROMMET

8

6676917

ELBOW

9

6677837

BOLT

10

6677839

GASKET

11

6677842

NUT

12

6677843

NUT

13

6677847

GROMMET

14

6681911

SCREW

15

6682462

VALVE

16

6685140

COVER

17

HOSE NLA - 102 mm (4'') long - Order Ref. 26

18

7008934

MOTOR, WIPER

19

7008936

ARM, WIPER

20

7008937

BLADE, WIPER WINDOW

21

7009047

PLATE

22

7133211

TANK, WASHER

23

HOSE NLA - 1320 mm (52'') long - Order Ref. 26

24

35C408

BOLT

25

4DM5

NUT

26

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot

27

6805244

WASHER

28

7174043

MOUNT, LOAD ISOLATOR ASSY Ref. 36-38

29

7187718

CAB, W/A Also Order 7223420 frameless window kit if replacing cab W/framed window

30

7194930

TREAD, SAFETY

31

7199173

MAT, FLOOR cab

32

7202690

SEAL, FOAM

33

7CM1460

SCREW

34

WINDOW, CAB FRONT See Illustration OPERATOR CAB/ NA2790

35

7157151

DOOR, CAB ASSY See Illustration OPERATOR CAB/ NA6043

36

TUBE NSS - Order Ref. 28

37

MOUNT NSS - Order Ref. 28

38

MOUNT NSS - Order Ref. 28

39

BRACKET See Illustration CONTROLS ELECTRICAL/ NA6059

40

6719341

HINGE

Выбрано товаров: 40
