Запчасти Bobcat E25 SEAT (Suspension) MAIN FRAME

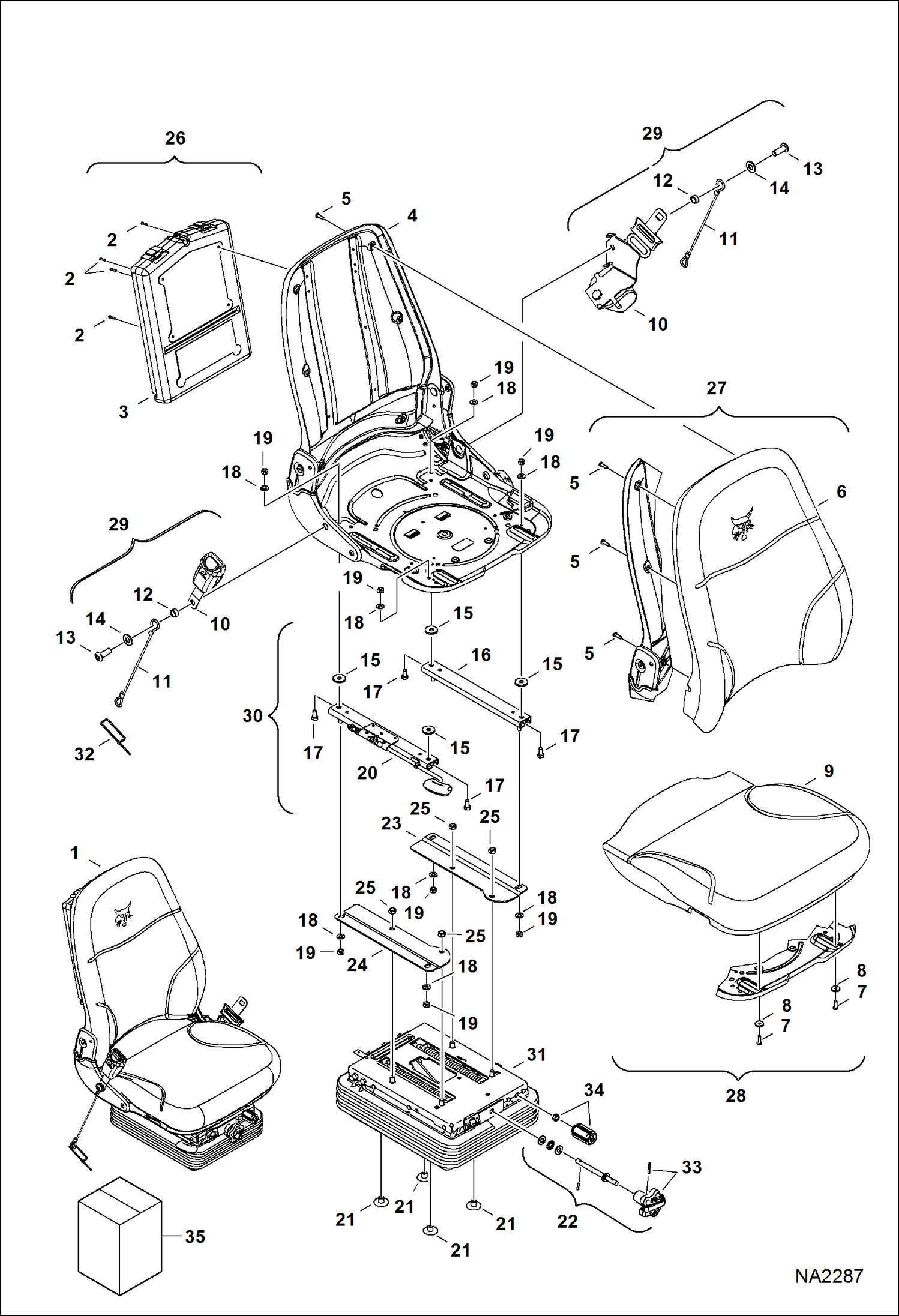

Схема запчастей Bobcat E25 - SEAT (Suspension) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7157550

SEAT, OPERATOR SUSPENSION VINYL Ref. 2-34

1

7169360

SEAT, OPERATOR SUSPENSION CLOTH Ref. 2-34

2

RIVET NSS

3

BOX NSS - manual

4

7012620

KIT, SEAT OPERATOR TOP

5

BOLT NSS

6

CUSHION, SEAT NSS

7

BOLT NSS

8

WASHER NSS

9

CUSHION, SEAT NSS

10

SEAT BELT NSS

11

TETHER NSS

12

SPACER NSS

13

BOLT NSS

14

WASHER NSS

15

WASHER NSS

16

SLIDE NSS

17

BOLT NSS

18

WASHER NSS

19

NUT NSS

20

SLIDE NSS

21

PROTECTOR NSS

22

7020238

KIT, KNOB W/Ref. 33 & 34

23

BRACKET NSS

24

BRACKET NSS

25

NUT NSS

26

7012622

KIT, CONTAINER MANUAL Ref. 2 & 3

27

7012625

KIT, BACKREST SEAT cloth - Ref. 5 & 6

27

7012623

KIT, BACKREST SEAT vinyl - Ref. 5 & 6

28

7012626

KIT, CUSHION SEAT cloth - Ref. 7-9

28

7012624

KIT, CUSHION SEAT VINYL Ref. 7-9

29

7012344

BELT, SEAT Ref. 10-14

29

BELT, SEAT 3'' KIT

30

7012621

KIT, SLIDE Ref. 15-20

31

7020350

KIT, SUSPENSION ASSY W/Ref. 22 - A

32

STRAP NSS

33

7020240

KNOB, ADJUSTMENT WEIGHT

34

7020241

KNOB, ADJUSTMENT HEIGHT

Выбрано товаров: 38
