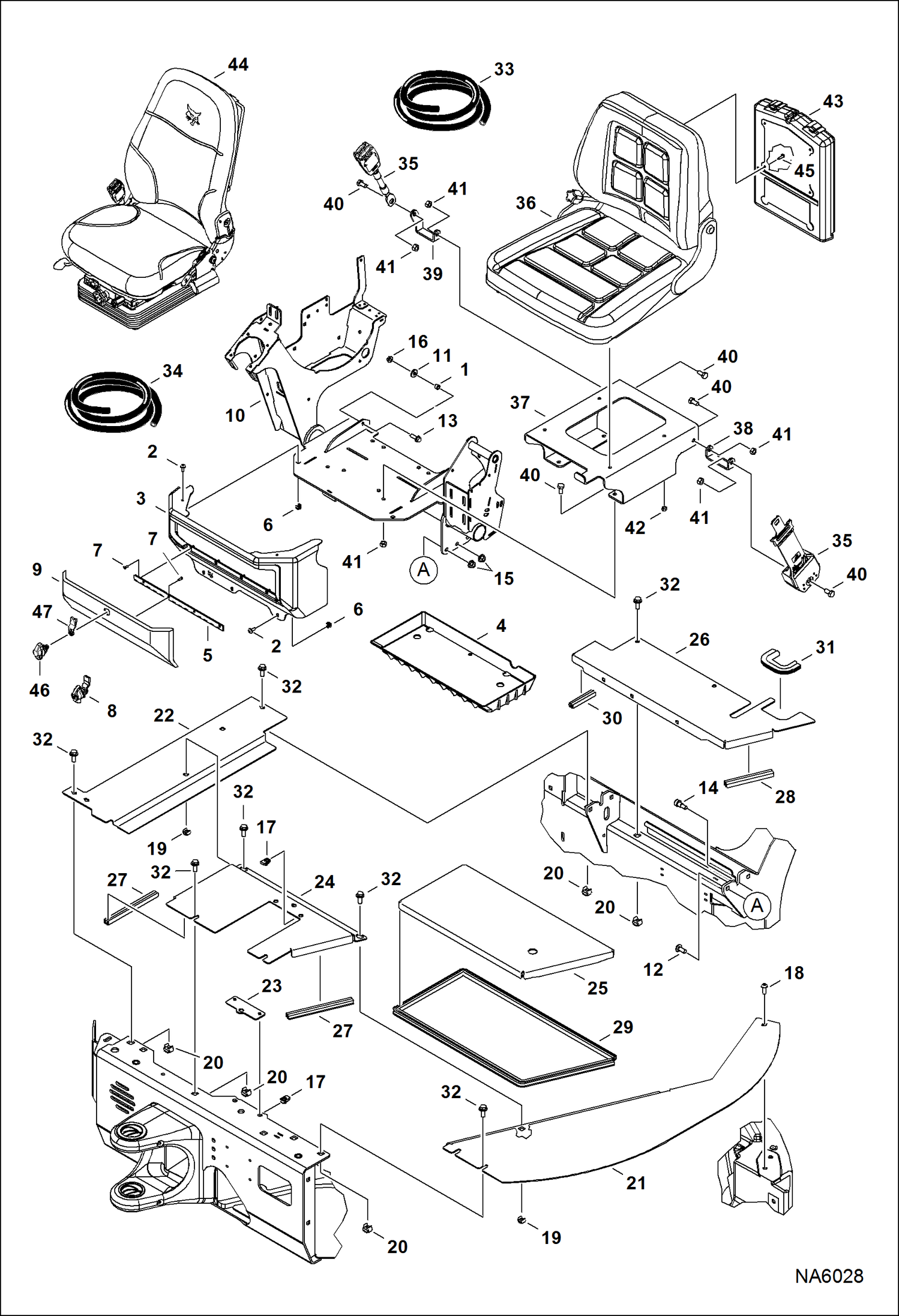

Запчасти Bobcat E25 OPERATOR AREA & SEAT (Floor) MAIN FRAME

1

6802539

SPACER

2

6803202

SCREW

3

7170706

CONTAINER, STORAGE

4

7236279

MAT, FLOOR 1.69'' Side Height

4

CONTAINER, STORAGE NLA - 3.99'' Side Height - Order 7236279 - Was 7170708 - A

5

7170709

HINGE, COVER

6

7170765

NUT

7

7208340

SCREW

8

LATCH, HANDLE NLA - Order Ref. 46 & Ref. 47 - Was 7186648 - A

9

7188090

DOOR, STORAGE

10

7199673

CONTROLLER, JOYSTICK ASSY

11

25E16

WSHR

12

28CM1025

BOLT

13

29CM825

BOLT

14

38CM1212

BOLT, SHOULDER

15

43DM10

NUT

16

51DM8

NUT

17

6676169

NUT

18

6817769

BOLT

19

7155411

NUT

20

7155413

NUT

21

7160786

PLATE, FLOOR

22

7160787

PLATE, FLOOR

23

7160789

PLATE, WASHER

24

7161772

PLATE, FLOOR

25

7161773

PLATE, FLOOR

26

7161774

PLATE, FLOOR

27

SEAL NLA - 185 mm (7.28'') long - Order Ref. 34

28

SEAL NLA - 145 mm (5.71'') long - Order Ref. 34

29

SEAL NLA - 1639,18 mm (64.53'') - Order Ref. 34

30

SEAL NLA - 90 mm (3.54'') long - Order Ref. 34

31

SEAL NLA - 178,5 mm (7.03'') long - Order Ref. 33

32

29CM1025

BOLT

33

7134803

SEAL, BULK bulk - sold per foot

34

7177959

SEAL, BULK BULB bulk - sold per foot

35

6670865

SEAT BELT

36

7180305

SEAT ASSY

37

7187733

MOUNT, SEAT use only W/Ref. 36

38

7187734

BRACKET, SEAT BELT

39

7187766

BRACKET, SEAT BELT

40

1CM1020

BOLT

41

53DM10

NUT

42

53DM8

NUT

42

51DM8

NUT for suspension seat

43

7178637

BOX, MANUAL

44

SEAT ASSY See Illustration SEAT/ NA2287 suspension

45

27CM510

SCREW

46

7239170

LATCH, HANDLE Use W/Ref. 47 (7239274 Cam)

47

7239274

CAM, LEVER Use W/Ref. 46 (7239170 Latch)
