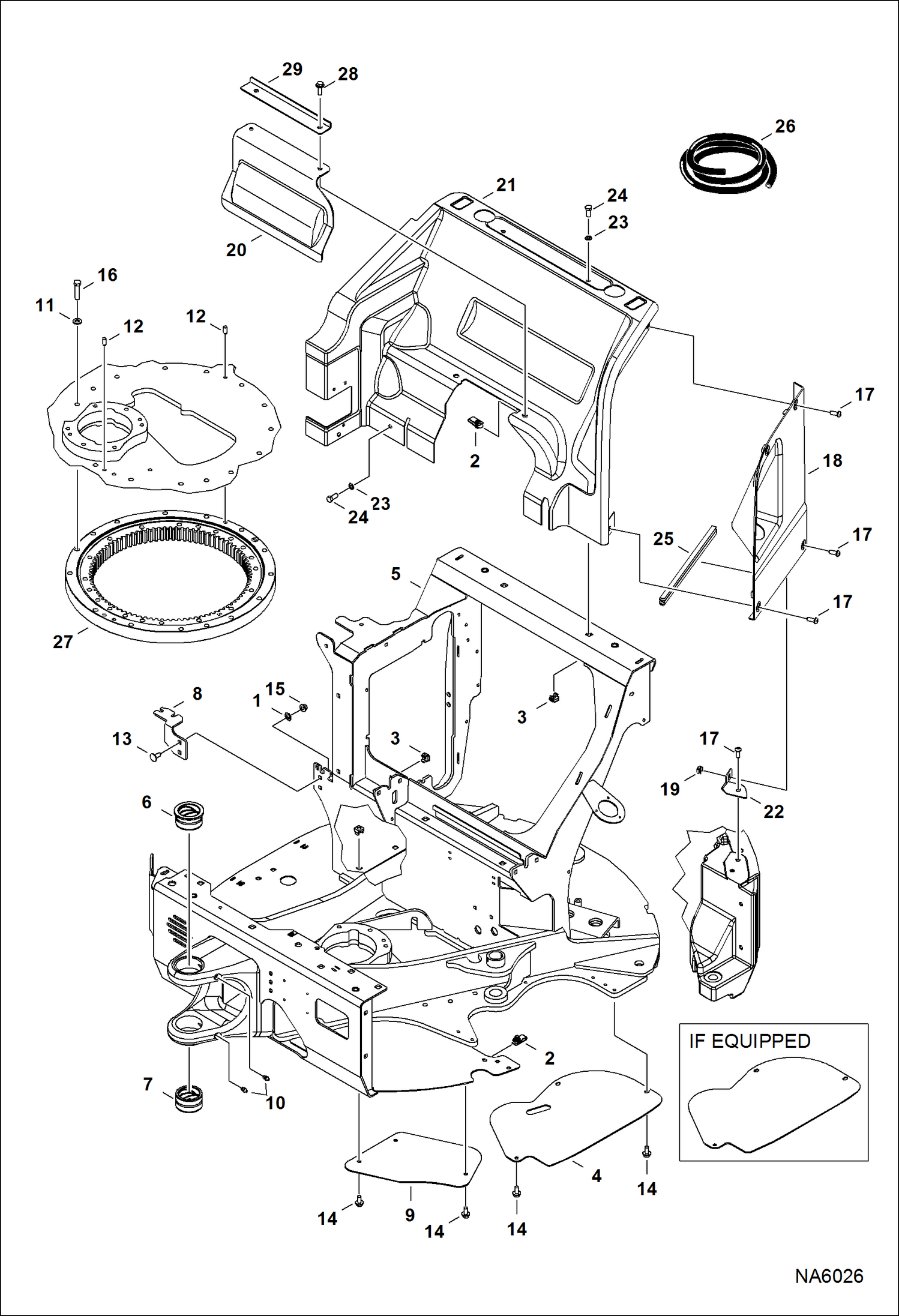

Запчасти Bobcat E25 UPPERSTRUCTURE MAIN FRAME

1

6674264

RETAINER NUT

2

6675722

NUT

3

7155413

NUT

4

7158972

COVER

5

7165353

UPPERSTRUCTURE

6

7183441

BUSHING, PIVOT

7

7191805

BUSHING, PIVOT

8

7193426

MOUNT, FILTER

9

7199851

COVER

10

10H25

FITTING, GREASE 5

11

18EM1224

WASHER

12

23JM1024

PIN HARDENED PARALLE

13

33CM1025

BOLT

14

29CM1020

BOLT

15

43DM10

NUT

16

55CM1250

SCREW

17

6817769

BOLT

18

7148574

COVER, LH

19

7155411

NUT

20

7158979

PANEL, ACCESS

21

7179422

PANEL, ENG

22

7189449

BRACKET, COVER

23

15EM100

WASHER

24

1CM1025

BOLT

25

SEAL NLA - 320 mm (12.6'') long - Order Ref. 26

26

7170493

SEAL, BULK, BULB BULK/FT bulk - sold per foot

27

RING, SLEW See Illustration UNDERCARRIAGE/ NA6817

28

29CM1030

BOLT

29

7198650

PLATE, BRACE
