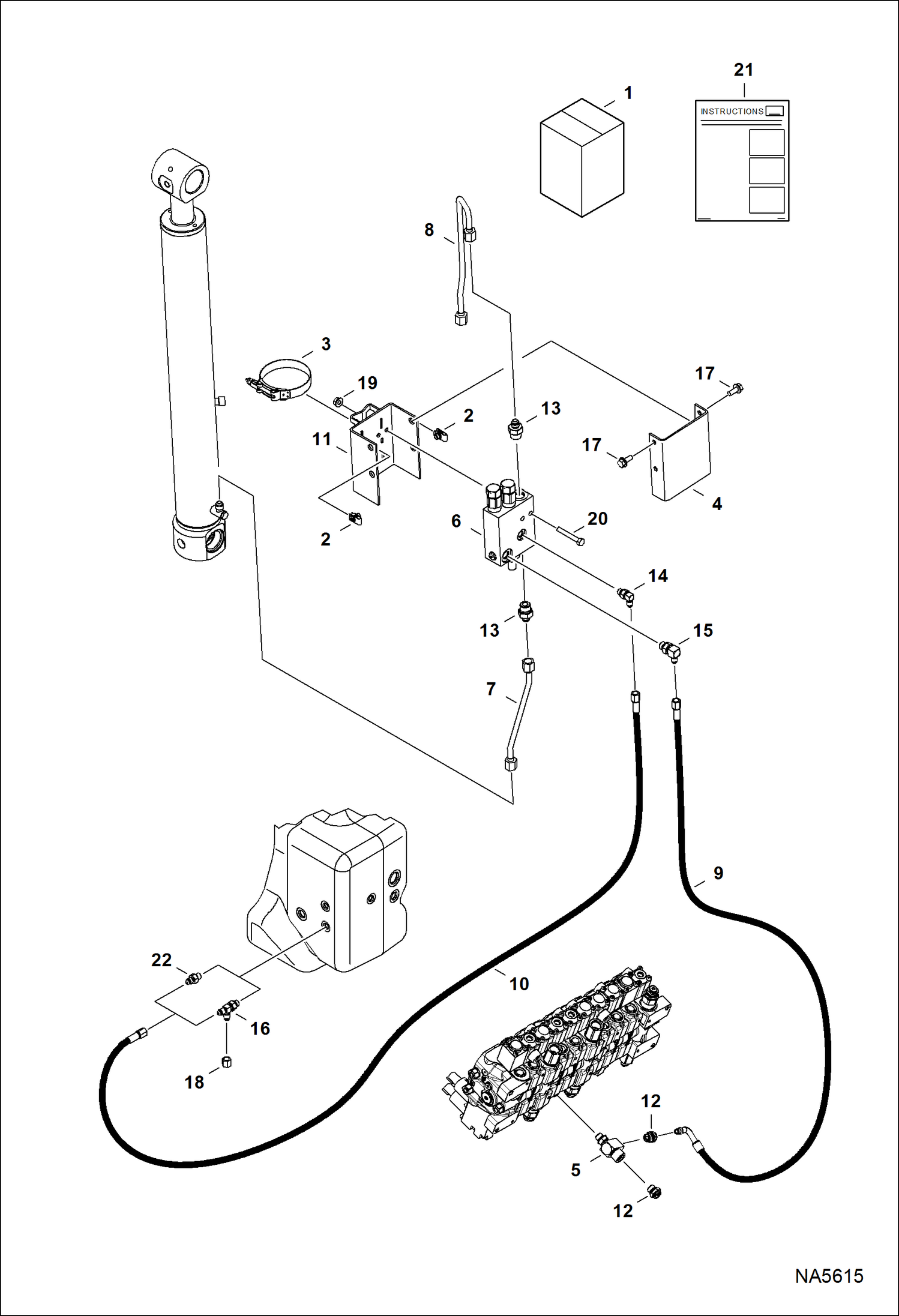

Запчасти Bobcat E25 LOAD HOLD (Boom Kit) ACCESSORIES & OPTIONS

1

7207809

KIT, LOAD HOLD BOOM Ref. 2-21

2

6676169

NUT

3

7009353

CLAMP, T-BOLT

4

7174256

BRACKET, VALVE

5

7185275

FITTING, HYD TEE

5

79K6

O RING 10

6

7189078

VALVE, LOCK LOAD See Illustration LOAD HOLD/ NA2293

7

7196470

TUBELINE, HYD

8

7196618

TUBELINE, HYD

9

7196714

HOSE, HYD

10

7196820

HOSE, HYD

11

7196886

BRACKET, VALVE

12

10L0606

FITTING, HYD CONNECTOR

12

78K6

O'RING

12

7011053

CLIP

13

15KB0608

FITTING, HYD CONNECTOR

13

79K8

O RING 10

14

17KB0404

FTG HYD ELBOW 90

14

79K4

O RING 10

15

17KB0406

FITTING, HYD ELBOW

15

79K6

O RING 10

16

21KB0404

FITTING, HYD TEE

16

79K4

O RING 10

17

29CM820

SCREW

18

36K3

CAP

19

51DM8

NUT

20

53CM855

SCREW

21

6990230

INSTRUCTIONS

22

15KB0404

FTG HYD S Connector option

22

79K4

O RING 10
