Запчасти Bobcat E25 HEATER (Heater Kit) ACCESSORIES & OPTIONS

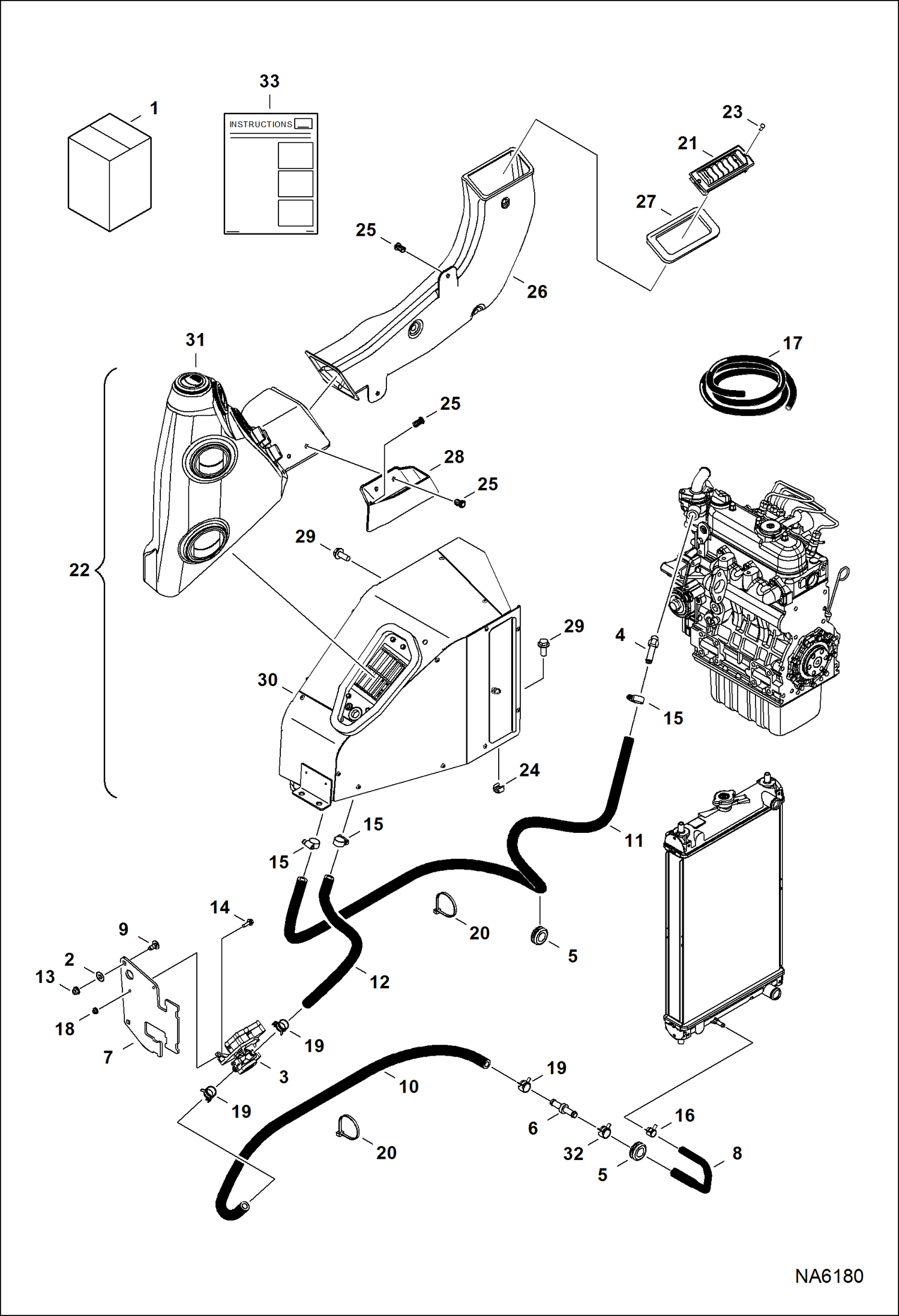

Схема запчастей Bobcat E25 - HEATER (Heater Kit) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7205739

KIT, HEATER CAB Ref. 2-33

2

6675859

RETAINER

3

7003456

VALVE, MOTORIZED ASSY

4

6731085

ELBOW

5

7136776

GROMMET

6

6732023

CONNECTOR

7

7187716

HOLDER

8

7193565

HOSE HEATER

9

33CM820

BOLT

10

HOSE, HEATER NLA - 1100 mm (43.3'') long - Order Ref. 17

11

HOSE, HEATER NLA - 1845 mm (72.6'') long - Order Ref. 17

12

HOSE, HEATER NLA - 450 mm (17.7'') long - Order Ref. 17

13

43DM8

NUT

14

29CM620

SCREW

15

42HL91

CLAMP, HOSE

16

5HM14

CLAMP

17

6565977

HOSE bulk - sold per foot

18

43DM6

NUT

19

5HM20

CLAMP

20

6624289

STRAP, TIE

21

6676713

LOUVER

22

HEATER, CAB NLA - Order Ref. 30 & 31

23

6814024

SCREW

24

7155411

NUT

25

7160383

RIVET, BIRD CAGE

26

7162750

DUCT, AIR

27

7171356

SEAL, DUCT

28

7174321

CONTAINER, STORAGE

29

29CM1025

BOLT

30

7018004

HEATER, CAB See Illustration HEATER/ NA2792

31

DUCT, AIR ASSY See Illustration HEATER/ NA2794

32

5HM18

CLAMP

33

6990178

INSTRUCTIONS

Выбрано товаров: 33
