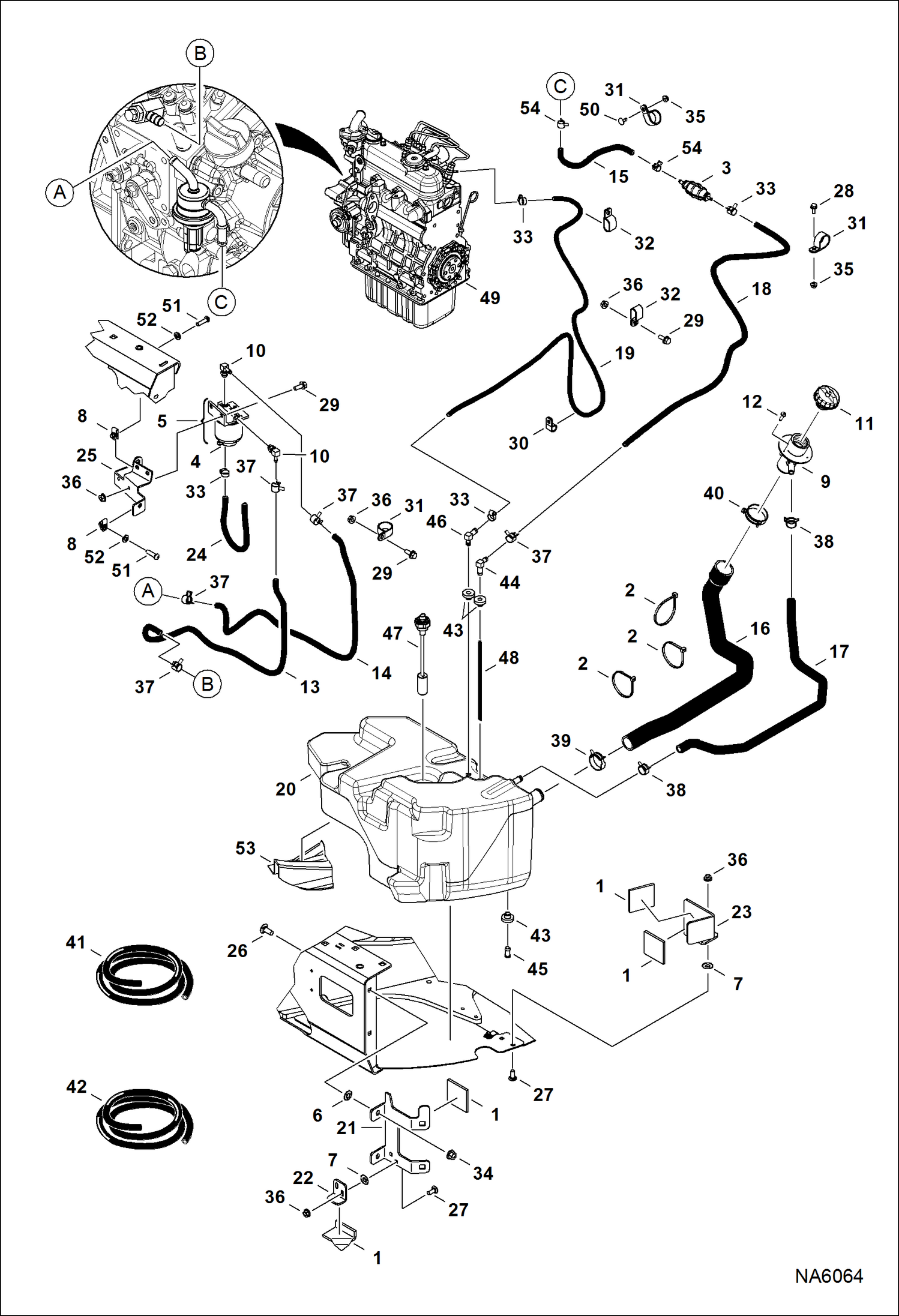

Запчасти Bobcat E25 ENGINE & ATTACHING PARTS (Fuel System) POWER UNIT

1

6578278

PAD

2

6624289

STRAP, TIE

3

6657734

PUMP, PRIMER HAND - A

3

7219755

PUMP, PRIMER HAND

4

6667353

FILTER ASSY

4

6667352

FILTER, FUEL W/SEPARATOR 12

5

6674264

RETAINER NUT

6

6675859

RETAINER

7

6676169

NUT

8

6701449

FILLER TUBE

9

6715183

ELBOW

10

CAP FUEL LOCKING Was 7019128 - A

10

7023550

CAP, DIESEL LOCKING

11

7106279

BOLT

12

HOSE, FUEL NLA - 1000 mm (39.4'') long - Order Ref. 42

13

HOSE, FUEL NLA - 1125 mm (44.3'') long - Order Ref. 42

14

HOSE, FUEL NLA - 300 mm (11.8'') long - Order Ref. 42

15

7187708

HOSE, FUEL

16

7187709

HOSE, FUEL

17

HOSE, FUEL NLA - 1290 mm (50.8'') long - Order Ref. 42

18

HOSE, FUEL NLA - 1790 mm (70.5'') long - Order Ref. 41

19

7187712

TANK, FUEL

20

7187744

HOLDER

21

7187757

BRACKET, TANK FUEL

22

7192117

BRACKET, TANK FUEL

23

HOSE, FUEL NLA - 380 mm (15'') long - Order Ref. 42

24

7198075

BRACKET, FILTER

25

28CM1025

BOLT

26

28CM820

BOLT

27

29CM616

BOLT

28

29CM820

SCREW

29

30H30

CLAMP

30

30H57

CLAMP

31

31H31

CLIP

32

42HS04

CLAMP, HOSE

33

43DM10

NUT

34

43DM6

NUT

35

43DM8

NUT

36

5HM13

CLAMP

37

5HM14

CLAMP

38

5HM23

CLAMP

39

5HM42

HOSECLAMP

40

5HM55

CLAMP

41

6578169

HOSE bulk - sold per foot - 0.19'' ID

42

6577822

HOSE bulk - sold per foot

43

6553411

BUSHING

44

6666302

FITTING, ELBOW Also Order Ref. 48

45

6599645

PLUG, STEEL

46

6630041

ELBOW

47

7179838

SENSOR FUEL

48

7223217

TUBE, FUEL LINE ASSY Also Order Ref. 44

49

6696964

ENG, D1105 20.8 HP EPA TIER 2 - EU STAGE II See Illustration ENGINE & GASKET KITS/ NA6116

50

33CM616

BOLT

51

27CM830

BOLT

52

1EM80

WASHER

53

7187758

BUMPER, RUBBER

54

5HM15

CLAMP
