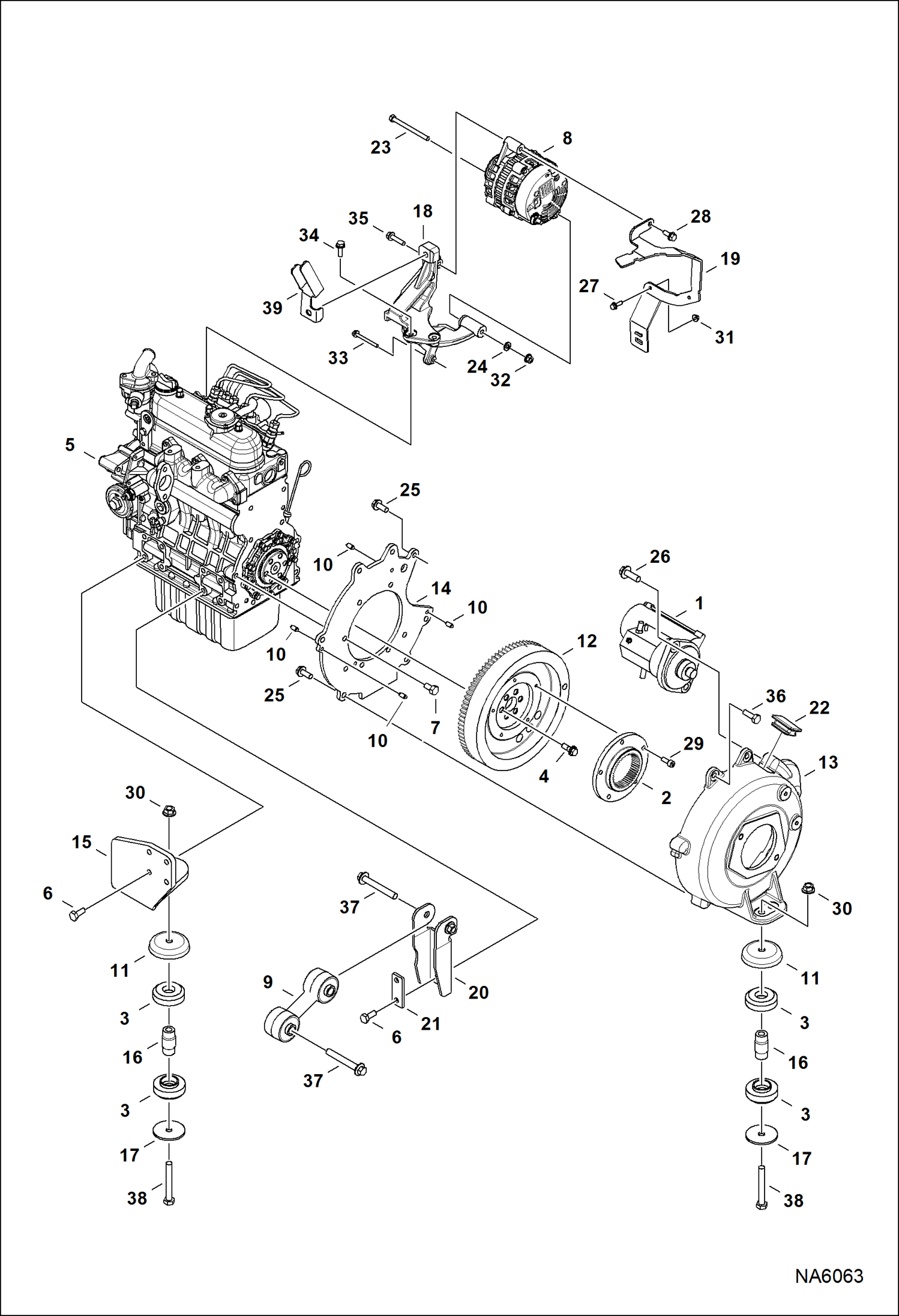

Запчасти Bobcat E25 ENGINE & ATTACHING PARTS (Engine Mounts) POWER UNIT

1

STARTER See Illustration STARTER/ D2437

2

6670757

COUPLER

3

6688994

MOUNT

4

6690940

BOLT

5

6696964

ENG, D1105 20.8 HP EPA TIER 2 - EU STAGE II See Illustration ENGINE & GASKET KITS/ NA6116

6

6719825

BOLT

7

6733378

SCREW

8

7008772

ALTERNATOR, 90 AMP See Illustration ALTERNATOR/ NA2234

9

7021924

MOUNT, ENG

10

7101341

PIN

11

7116851

CUP

12

7226762

FLYWHEEL, ENG ASSY

12

6800424

RING-GEAR

13

7226756

HOUSING, MACHINED

14

7226759

PLATE, FLYWHEEL

15

7224887

MOUNT, ENG

16

7165661

SPACER, TUBE

17

7165662

WASHER

18

7170568

BRACKET

19

7173770

BRACKET

20

7189015

MOUNT, ENG

21

7189016

MOUNT, ENG

22

7193119

PLUG

23

1CM8100

SCREW

24

25E15

WASHER

25

29CM1025

BOLT

26

29CM1235

BOLT

27

29CM620

SCREW

28

29CM820

SCREW

29

3GM820

SCREW

30

51DM12

NUT

31

51DM6

NUT

32

51DM8

NUT

33

59CM660

BOLT

34

59CM825

Screw Hex FLNG W/T8.8

35

59CM835

BOLT

36

5CM1030

BOLT

37

60CM1290

BOLT

38

7CM1290

SCREW

39

7191279

BRACKET
