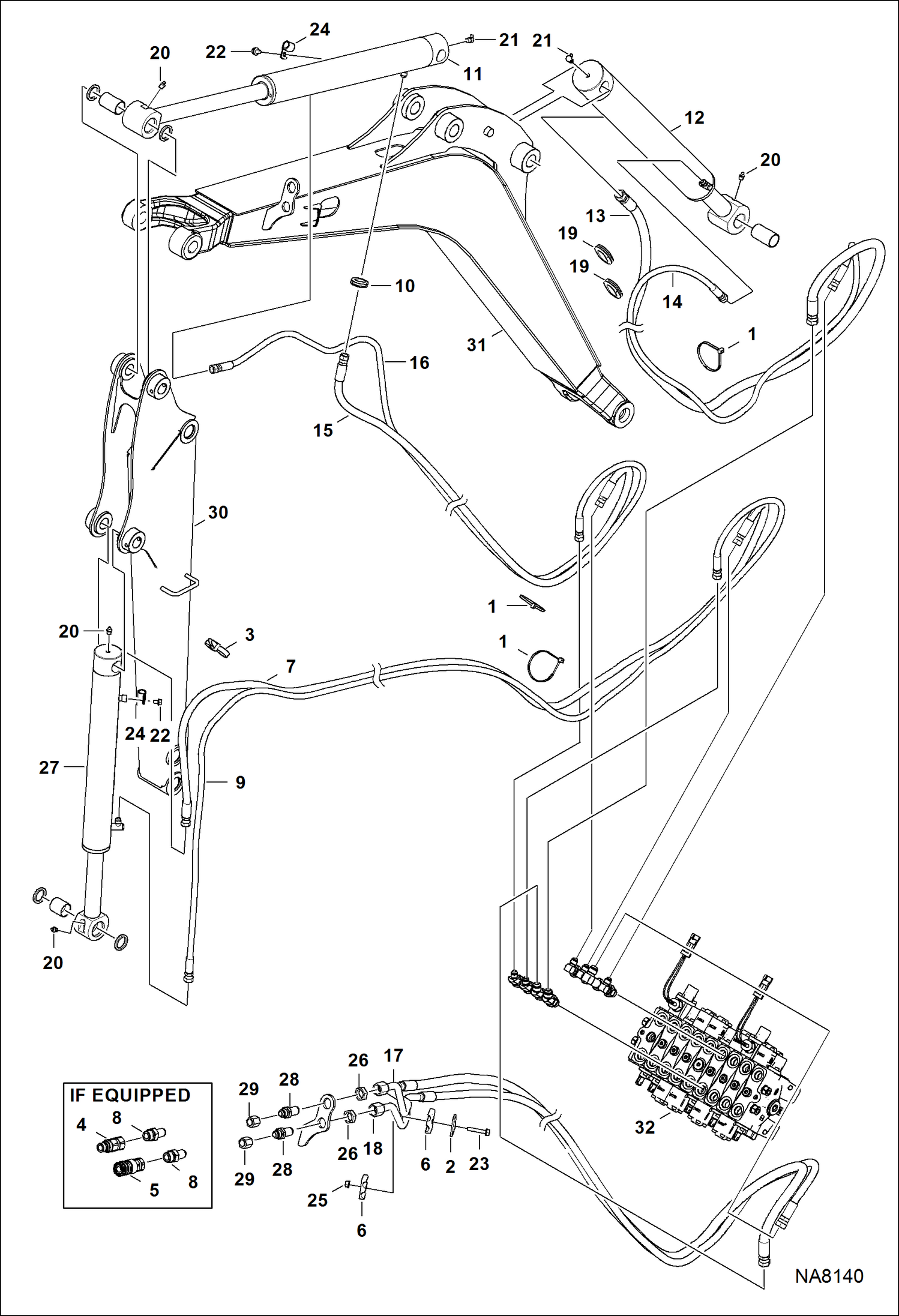

Запчасти Bobcat E16 HYDRAULIC CIRCUITRY (Boom) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6652521

PLATE

3

6678668

STRAP, DUAL TIE not for long arm option

4

6667808

COUPLER

5

6672960

COUPLER, FF FEMALE

6

6701893

CLAMP

7

7173101

HOSE, HYD not for long arm option

8

6812816

ADAPTER

9

7173102

HOSE, HYD not for long arm option

10

7135240

GROMMET ELIPTICAL

11

7168224

CYLINDER ASSY ARM

12

7168435

CYLINDER ASSY BOOM

13

7204432

HOSE, HYD Was 7173095 - A

14

7173096

HOSE, HYD

15

7173097

HOSE, HYD

16

7173098

HOSE, HYD

17

7173107

TUBELINE

17

7228885

TUBELINE

18

7173108

TUBELINE

19

7173764

GROMMET

20

10H25

FITTING, GREASE 5

21

12H15

FITTING, GREASE 5

22

29CM812

BOLT

23

29CM845

BOLT

24

30H38

CLIP

25

43DM8

NUT

26

86F7

LOCK NUT

27

7167819

CYLINDER ASSY BUCKET
