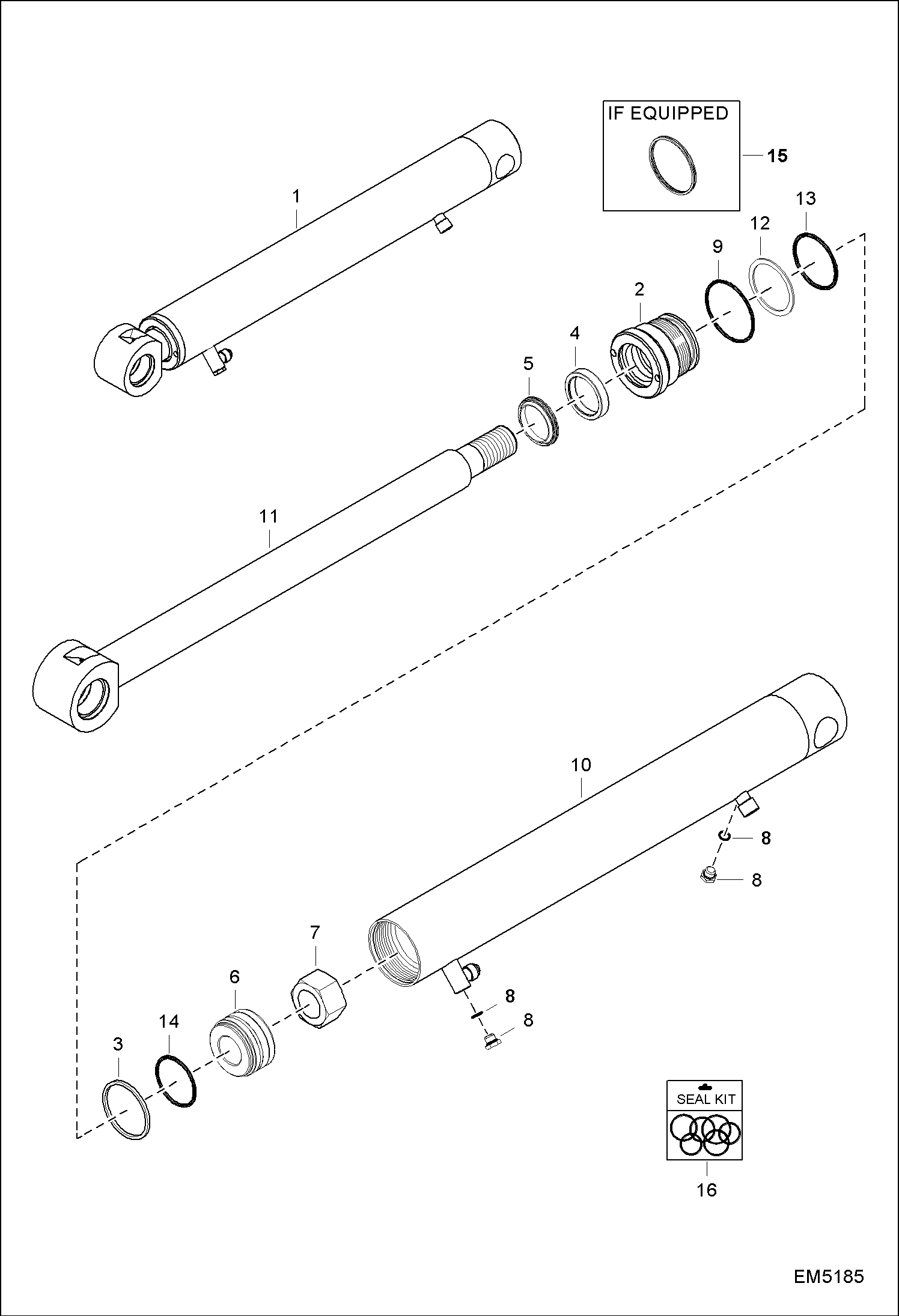

Запчасти Bobcat E16 BUCKET CYLINDER HYDRAULIC SYSTEM

1

7167819

CYLINDER ASSY BUCKET Ref. 2-14

2

6539236

HEAD

3

6519328

SEAL

4

6667326

SEAL

5

6690707

WIPER, ROD CYL

6

6807879

PISTON

7

6810539

NUT

8

6812170

PLUG

8

75K3

O-RING

9

82K140

O-RING

10

7167820

TUBE ASSY W/Ref. 8 & 9

11

7168739

SHAFT

12

73K328

RING

13

54K60128

O-RING Was 7207334 - D

14

54K30126

O-RING

15

7135557

KIT, SEAL Ref. 3-5, 7, 9 & 12-14
